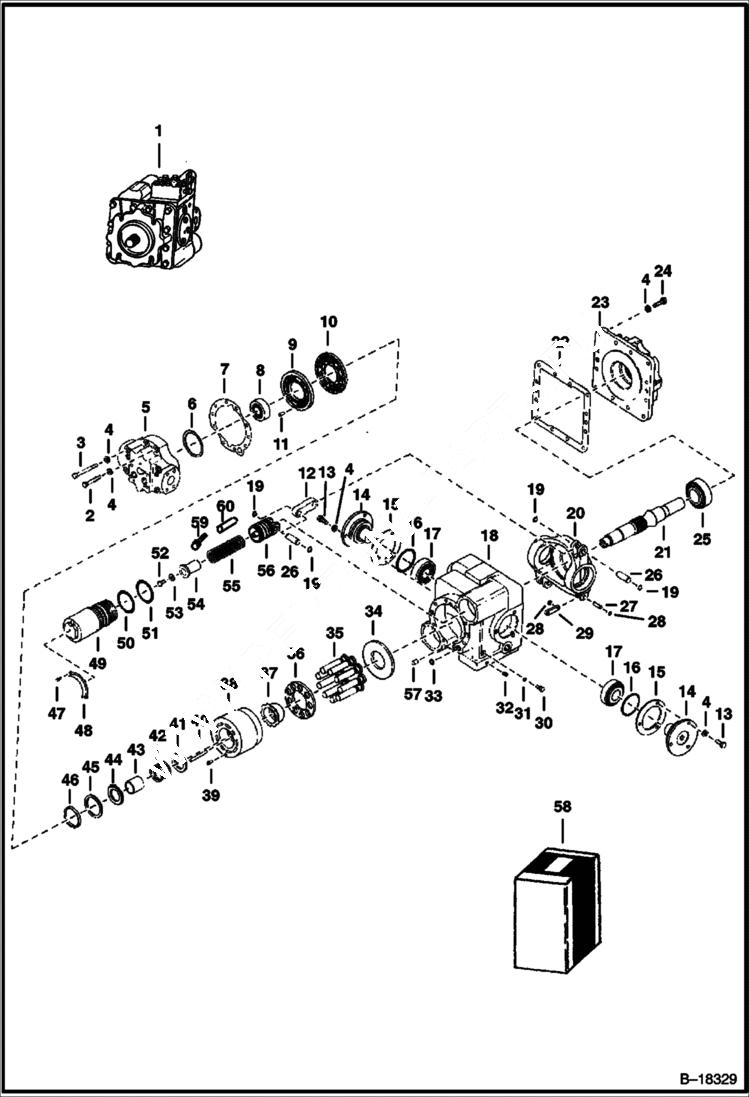

Запчасти Bobcat 900s HYDROSTATIC PUMP (Model 22-2501AA-REDX) HYDROSTATIC SYSTEM

1

PUMP NLA - W/Charge Pump-Order 6655830 Was 6647774 - A

1

6988008

PUMP, HYDRAULIC Model 22-2601-REDX - Was 6655830 - A

2

17C632

BOLT 5

3

17C648

BOLT 5

4

6518483

WASHER

5

6648230

END CAP

6

6514848

SHIM

7

6648231

GASKET

8

6519756

BEARING

9

6648232

VALVE PLATE

10

6648233

PLATE

11

6518423

PIN

12

6648234

LINK

13

17C612

BOLT 5

14

6518512

PIVOT

15

6648235

SHIM

16

25K40216

O RING 10

17

6519758

BEARING

18

HOUSING NSS

19

6648236

SNAP RING

20

6518593

SWASH PLATE

21

6518504

SHAFT

22

6648237

GASKET

23

6518507

COVER

24

17C620

BOLT

25

6519757

BEARING

26

6648239

PIN

27

6648238

PIN

28

6648240

SNAP RING

29

6648241

LINK

30

6645085

PLUG W/Ref. 31

31

79K4

O RING 10

32

6518510

PLUG

33

58K014

O-RING 10

34

6518522

THRUST PLATE

35

PISTON ASSY. NSS

36

RETAINER NSS

37

GUIDE NSS

38

CYLINDER NSS - block

39

PIN NSS

40

GUIDE NSS - Spring

41

SEAT NSS

42

SPRING NSS

43

GUIDE NSS

44

RETAINER NSS

45

SNAP RING NSS

46

6648242

PILOT

47

84G1906

SCREW

48

6518445

RETAINER

49

6518525

KIT Was 6648243 - A

50

945313

O RING

51

25K30212

O RING 10 Was 6518447 - A

52

6648268

BOLT Was 6648244 - A

53

6648245

WASHER

54

6518502

GUIDE

55

6519764

SPRING

56

PISTON NLA - servo - Order Ref. 56, 59 & 60 - Was 6518448 - A

56

6662950

PISTON servo

57

6518460

PIN

58

6648246

GASKET KIT ref. 7, 16, 22, 31, 33, 50, 51

58

6650085

KIT cylinder block - Ref. 10, 35-46 - Was 6648247 - A

59

6662951

BOLT

60

6662952

SPACER
