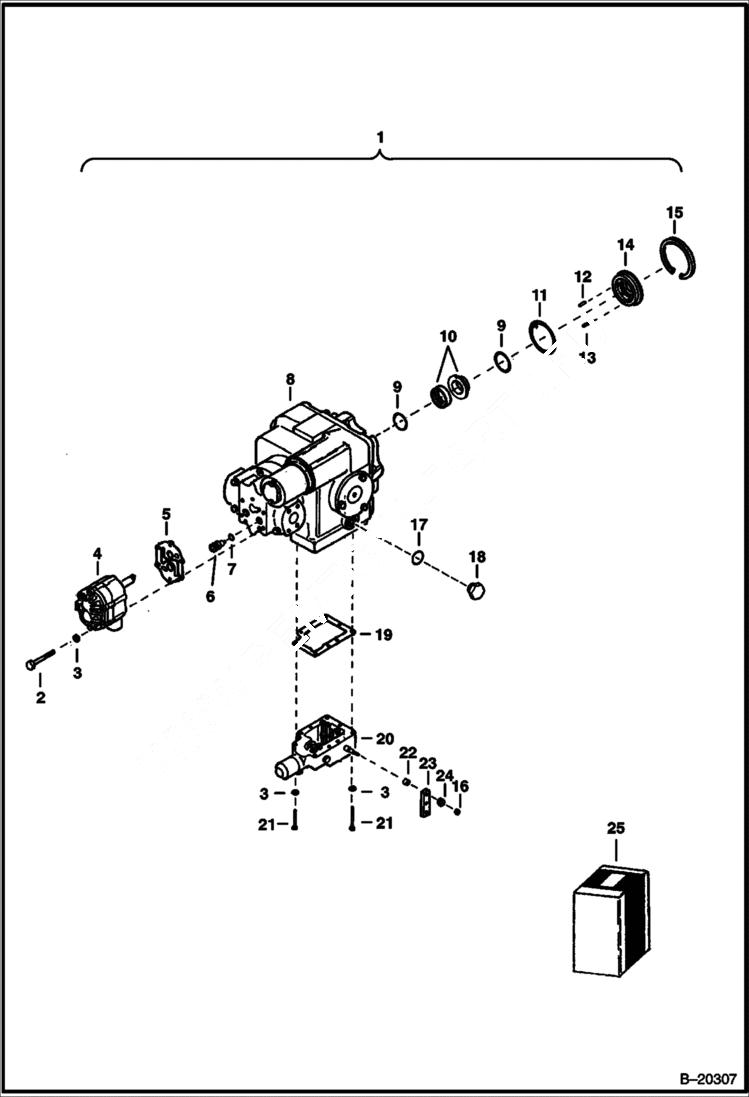

Запчасти Bobcat 900s HYDROSTATIC PUMP & ATTACHING PARTS HYDROSTATIC SYSTEM

1

PUMP See Illustration HYDROSTATIC PUMP/ B18329 See Illustration HYDROSTATIC PUMP/ D1355 REF. 2-24

2

17C448

BOLT

3

6518479

WASHER

4

PUMP See Illustration HYDROSTATIC CHARGE PUMP/ B11977 See Illustration HYDROSTATIC CHARGE PUMP/ B1093 CHARGE

5

6518481

GASKET

6

6518531

VALVE check - W/Ref. 7

7

O-RING NSS

8

PUMP See Illustration HYDROSTATIC PUMP/ B18329 See Illustration HYDROSTATIC PUMP/ D1355

9

O-RING NSS

10

SEAL NSS

11

O-RING NSS

12

PIN NSS

13

SPRING NSS

14

RETAINER NSS

15

RETAINER NSS

16

7D4

NUT

17

79K10

O RING 10

18

24K7

PLUG W/Ref. 17

19

963957

GASKET

20

6518535

VALVE See Illustration DISPLACEMENT CONTROL VALVE/ B1101 W/REF. 3, 19-25

21

BOLT NSS

22

SPACER NSS

23

6518478

HANDLE Was NSS - D

24

WASHER NSS

25

6518663

SEAL KIT ref. 9, 11-13

25

6518534

SEAL KIT ref. 9-15

25

6598796

GASKET KIT See Illustration HYDROSTATIC PUMP/ D1355 REF. 5, 7, 9, 11, 17, 19 & REF. 7, 16, 22, 31, 33, 50 & 51 on next page
