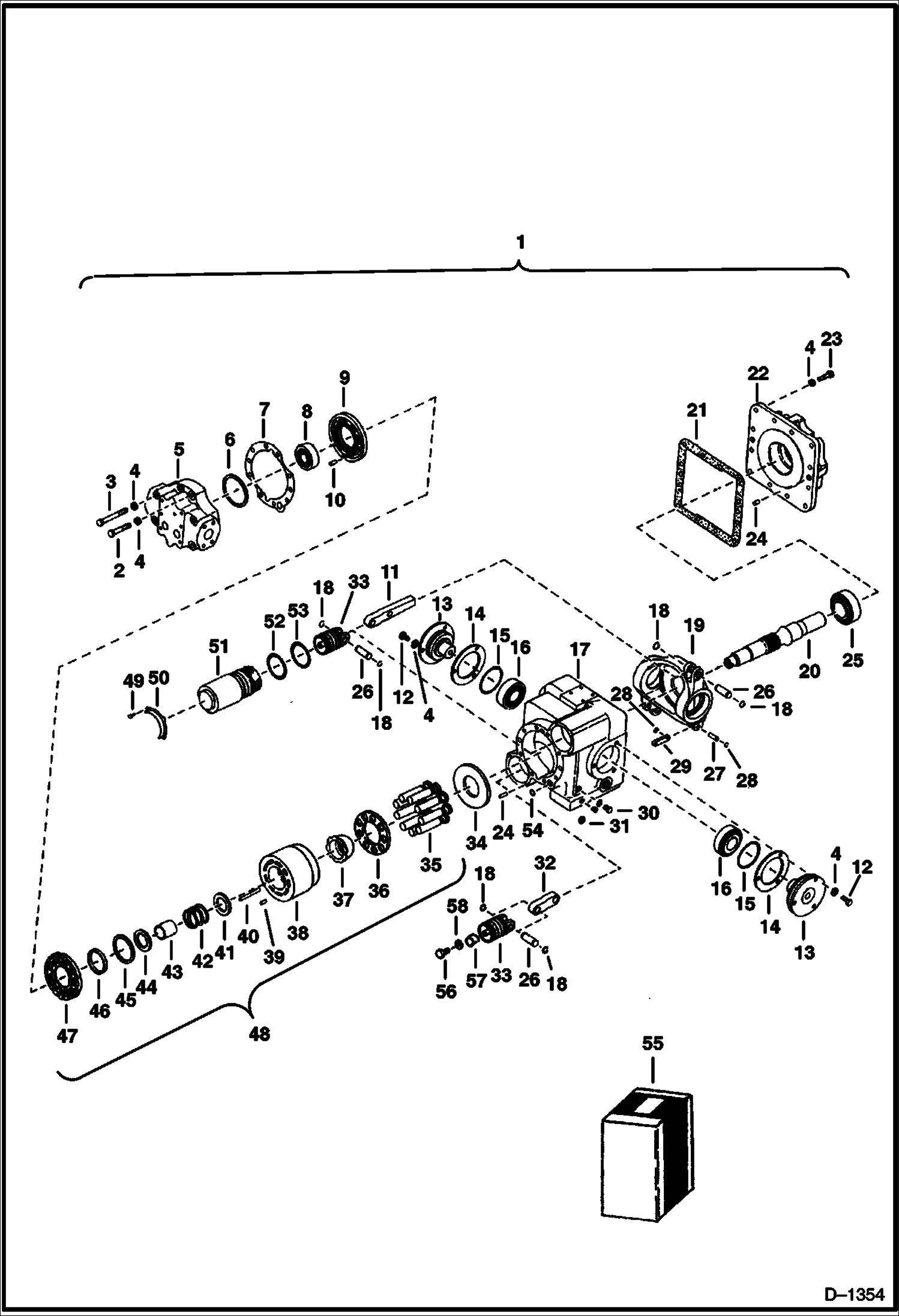

Запчасти Bobcat 900s HYDROSTATIC MOTOR (Model 23-4008) HYDROSTATIC SYSTEM

1

MOTOR NLA - New - Order 6655828 - Was 6515478 - A

1

MOTOR, HYD NLA - Remanufactured - Was 6599500REM - A

2

17C736

BOLT

3

17C752

BOLT

4

6518418

WASHER

5

6518419

CAP end

6

963573

SHIM Was 6518420 - A

7

6518421

GASKET

8

1577497

BEARING

9

6518424

VALVE PLATE

10

6518423

PIN

11

6648260

LINK Was NSS - D

12

17C716

BOLT

13

6518465

PIVOT

14

963572

GASKET

15

25K40224

O RING 10

16

1577495

BRG

17

963567

HOUSING Was 6518464 - A

18

6648236

SNAP RING Was NSS - D

19

6518454

SWASH PLATE

20

6518457

SHAFT

21

6518459

GASKET

22

6518461

COVER

23

17C724

BOLT

24

6518460

PIN

25

1577496

BRG

26

6648239

PIN Was NSS - D

27

6648238

PIN Was 6518455 - A

28

209994

RING

29

6648241

LINK Was 6518456 - A

30

6518463

PLUG

31

6518510

PLUG

32

6648265

LINK Was NSS - D

33

PISTON NLA - servo - order ref. 33, 56, 57 & 58 - Was 6661832 - A

33

6662950

PISTON servo

34

6518443

THRUST PLATE

35

PISTON NSS

36

RETAINER NSS

37

GUIDE NSS

38

BLOCK NSS

39

PIN NSS

40

PIN NSS

41

SEAT NSS

42

SPRING NSS

43

GUIDE NSS

44

RETAINER NSS

45

SNAP RING NSS

46

961348

PILOT Was 6518426 - A

47

6648286

BEARING PLATE bearing - Was 6518425 - A

48

6655963

KIT cylinder block-Ref. 35-47 - Was 6648287 - A

49

84G1906

SCREW

50

6518445

RETAINER sleeve

51

SERVO SLEEVE NSS

52

25K30216

O RING 10

53

25K30212

O RING 10

54

58K014

O-RING 10

55

6518525

KIT servo sleeve - Ref. 51-53

55

KIT NLA - servo piston-Ref. 11, 18, 26, 33- Was 6518526 - A

55

KIT NLA - servo piston-Ref. 18, 26, 32, 33- Was 6518527 - A

55

6598798

GASKET KIT See Illustration HYDROSTATIC MOTOR & ATTACHING PARTS/ B1089 REF. 7, 15, 21, 52-54, & REF. 6, 7, 12-14 & 19 on previous motor page

56

6662951

BOLT

57

6662952

SPACER

58

6648245

WASHER
