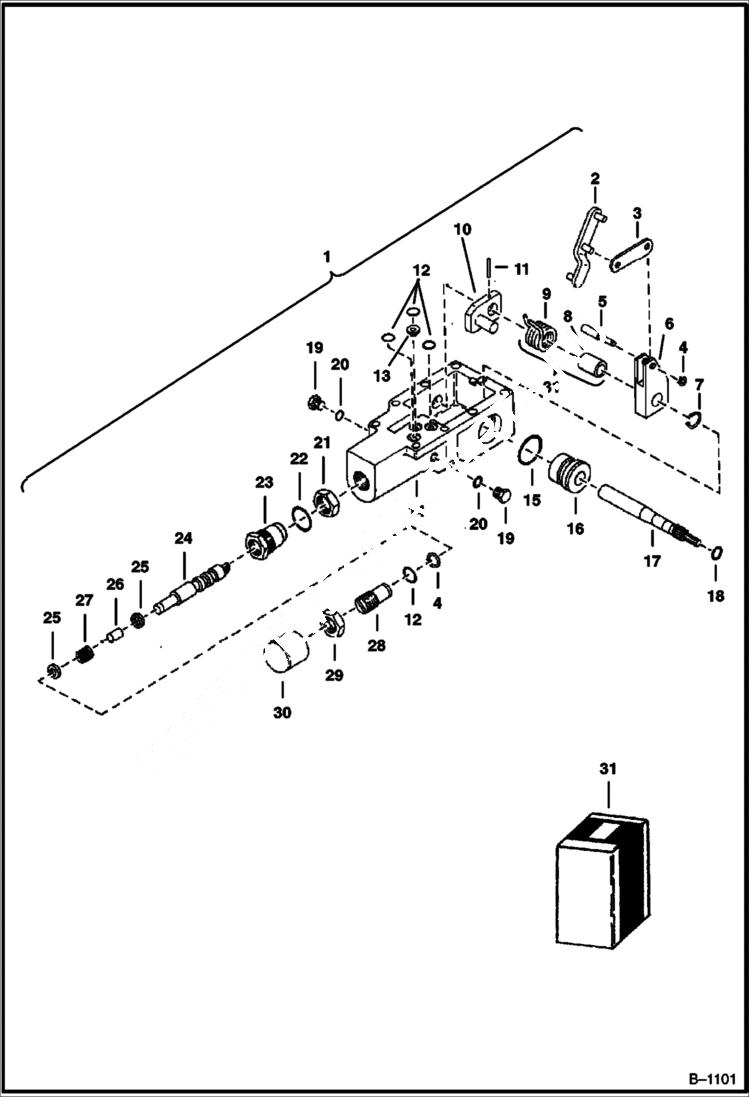

Запчасти Bobcat 900s DISPLACEMENT CONTROL VALVE HYDROSTATIC SYSTEM

1

6518535

VALVE First two digits of S/N

1

6598495

VALVE First two digits of S/N

2

6512672

LINK

3

6518654

LINK

4

209994

RING

5

6518655

STOP

6

6518661

LINK

7

6519023

RING

8

SLEEVE NSS

9

SPRING NSS

10

6518645

ACTUATOR

11

305307

PIN

12

58K014

O-RING 10

13

6518518

ORIFICE .060 - Pump

13

1579767

ORIFICE .042 - Motor

14

HOUSING NLA

15

25K20102

O RING 10

16

6518658

BUSHING

17

6518644

SHAFT

18

58K012

O-RING 10

19

24K3

PLUG

20

79K4

O RING 10

21

6518723

NUT

22

25K20026

O RING 10

23

6518646

HOUSING W/Ref. 22

24

SPOOL NLA

25

WASHER NSS

26

961443

SLEEVE

27

6518659

SPRING

28

6518726

SCREW W/Ref. 12

29

8D12

NUT

30

6518653

COVER

31

6512595

KIT Ref. 8, 9
