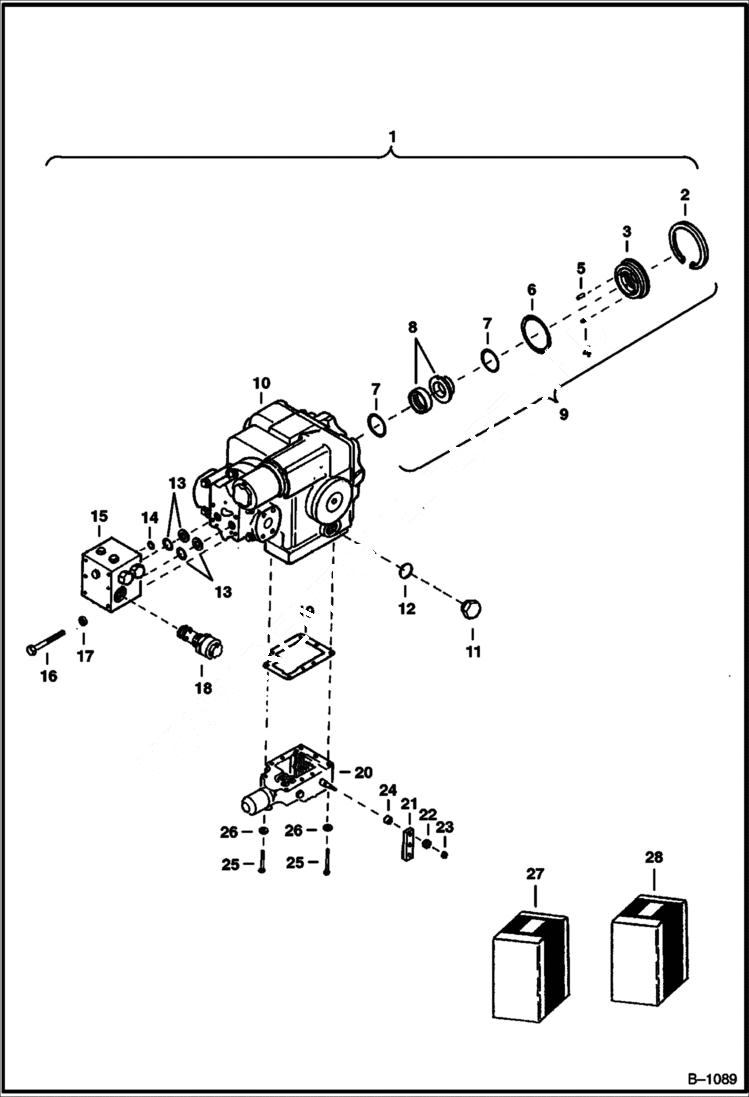

Запчасти Bobcat 900s HYDROSTATIC MOTOR & ATTACHING PARTS (For 23-4008 & 23-4501AA-JFBJ) HYDROSTATIC SYSTEM

1

MOTOR See Illustration HYDROSTATIC MOTOR/ D1850 See Illustration HYDROSTATIC MOTOR/ D1354 REF. 2-25

2

RETAINER NSS

3

RETAINER NSS - seal

4

SPRING NSS - seal

5

PIN NSS

6

O-RING NSS

7

O-RING NSS

8

SEAL NSS

9

6518528

REPAIR KIT W/Ref. 2 - 8

10

MOTOR See Illustration HYDROSTATIC MOTOR/ D1850 See Illustration HYDROSTATIC MOTOR/ D1354

11

24K7

PLUG W/Ref. 12

12

79K10

O RING 10

13

58K119

O RING 10

13

6518417

BACK-UP RING

14

25K20028

O RING 10

15

VALVE See Illustration MOTOR MANIFOLD VALVE/ B18331 See Illustration MOTOR MANIFOLD VALVE/ B1096 MANIFOLD

16

BOLT NSS

17

WASHER NSS

18

6518416

RELIEF VALVE

19

963957

GASKET

20

VALVE See Illustration DISPLACEMENT CONTROL VALVE/ B1101 W/REF. 19-25

21

6518478

HANDLE Was NSS - D

22

8E4

WASHER Was NSS - D

23

7D4

NUT Was NSS - D

24

6518477

SPACER Was NSS - D

25

BOLT NSS

26

6518479

WASHER

27

6518662

SEAL KIT ref. 4, 6-8

27

6598798

GASKET KIT See Illustration HYDROSTATIC MOTOR/ D1354 GASKET - REF. 6, 7, 12, 13, 14, 19, & REF. 7, 15, 21, 51-53 ON FOLLOWING MOTOR PAGE - FOR MOTOR 23-4008 ONLY

27

6518528

REPAIR KIT repair - W/Ref. 2-8

27

6518500

SEAL KIT ref. 13, 14

28

6598798

GASKET KIT gasket
