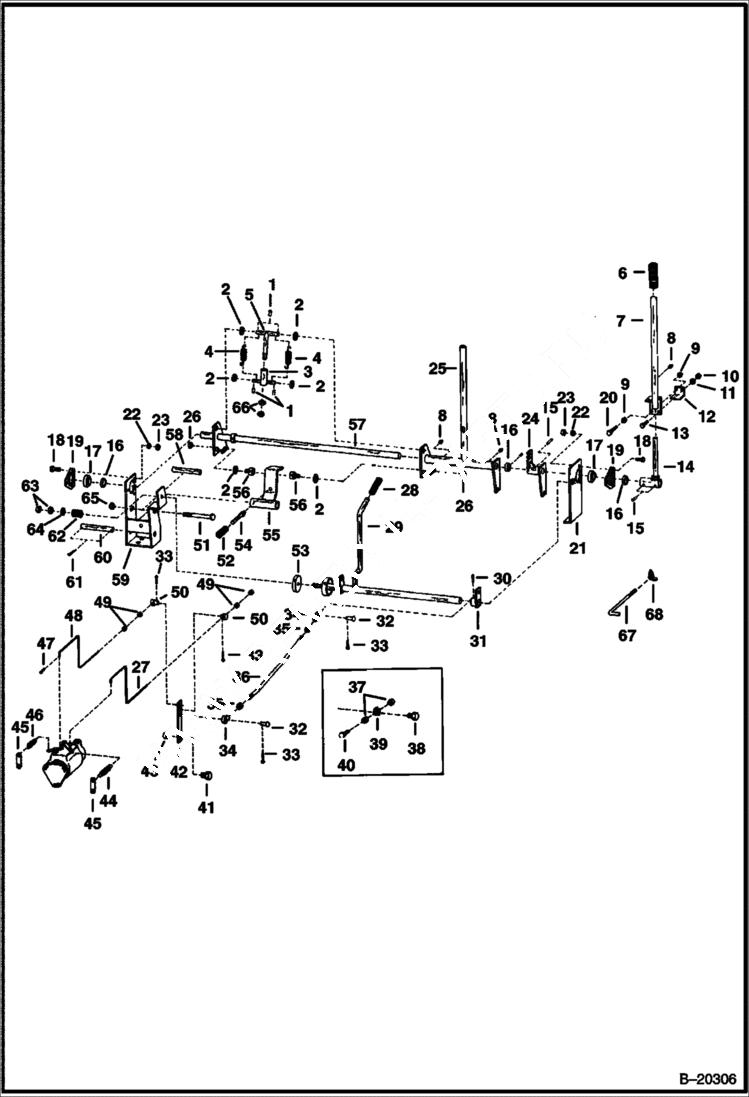

Запчасти Bobcat 900s HAND CONTROLS HYDROSTATIC SYSTEM

1

1F316

PIN

2

25E17

WASHER 5

3

6501756

SLIDE

4

6505076

SPRING

5

6501755

ROD

6

6513963

GRIP

7

LEVER NLA - RH - Was 6501697 - A

8

10H35

FITTING, GREASE 10

9

7D5

NUT

10

61D4

NUT 5

11

4E4

WASHER

12

6503987

ANGLE

13

17C412

BOLT 5

14

6591528

LEVER

15

633157

PIN

16

6515095

COLLAR lock

17

6515103

BALL BEARING

18

17C516

BOLT

19

6515096

FLANGE

20

17C524

BOLT

21

6501749

BRACKET R.H.

22

4E5

WASHER

23

61D5

NUT

24

6501786

ARM

25

6590005

LEVER

26

6511994

NUT

27

6507214

ROD

28

6515109

GRIP

29

6590030

LEVER throttle

30

668312

PIN ROLL

31

6505143

ARM

32

663350

PIN

33

1F416

PIN

34

6508041

YOKE

35

8D6

NUT 5

36

6507216

ROD

37

61D6

NUT 5

38

18C816

BOLT

39

6507211

STOP

40

97G640

SET SCREW

41

18C824

BOLT

42

6507212

LEVER

43

6507213

SPACER

44

3725672

SPRING

45

3725667

BRKT

46

3725668

SPRING

47

1F216

PIN

48

6507215

ROD

49

14D10

NUT

50

6507210

CONNECTOR

51

17C888

BOLT

52

6505082

SPRING

53

6503388

BLOCK throttle

54

6501779

GUIDE spring

55

6501753

ARM centering

56

6515595

FOLLOWER

57

6501696

SHAFT

58

6504007

SPACER

59

6501700

BRACKET L.H.

60

6503744

PIN

61

1F524

PIN

62

6704453

SPRING Was 6578252 - C

63

7D6

NUT

64

6505623

WASHER

65

85D8

NUT, 5 Was 81D000008B - B

66

7D8

NUT 5

67

6591073

ROD control lever lock

68

16D6

NUT
