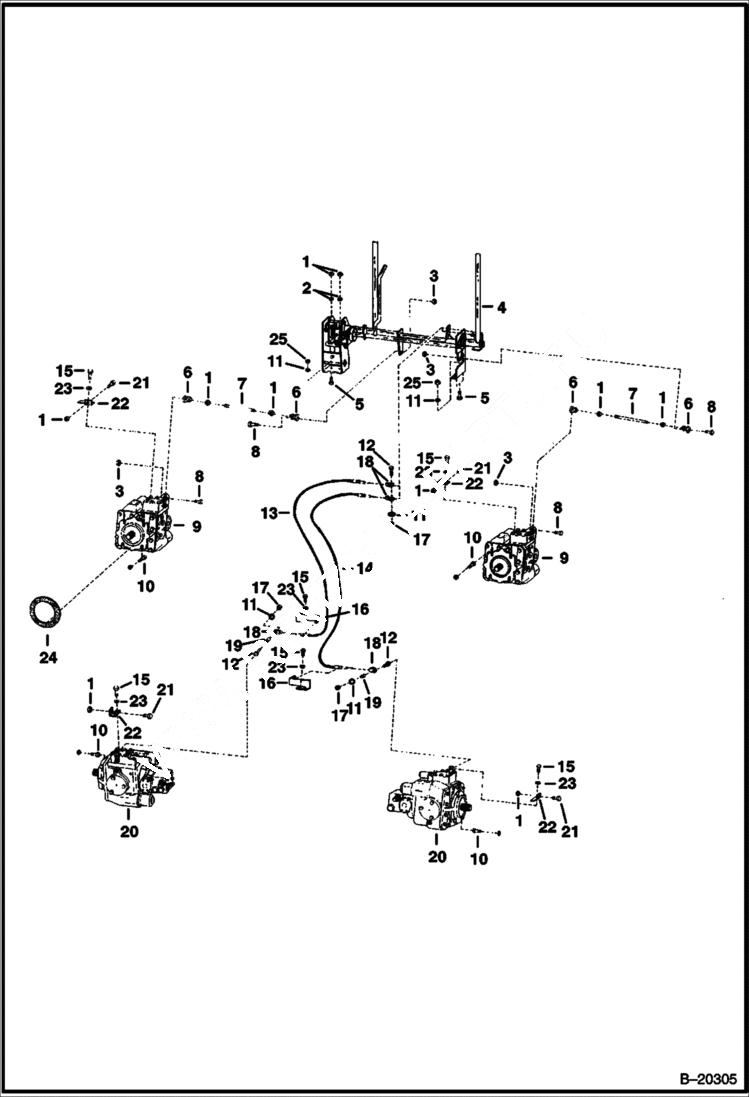

Запчасти Bobcat 900s HYDROSTATIC LINKAGE HYDROSTATIC SYSTEM

1

61D6

NUT 5

2

4E6

WASHER

3

81D6

NUT

4

LEVER ASSY. See Illustration HAND CONTROLS/ B20306

5

17C824

BOLT 5 Was 17C000616B - B

6

6512954

ROD END R.H. threads - Was 6515481 - A

7

6590765

ROD

8

17C620

BOLT

9

PUMP See Illustration HYDROSTATIC PUMP/ B18329 See Illustration HYDROSTATIC PUMP/ D1355 HYDROSTATIC

10

35C824

BOLT

11

25E22

WASHER Was 17E000010B - B

12

22G1016

SCREW Was 6516218 - A

13

6515504

CABLE R.H.

14

6515505

CABLE L.H.

15

17C440

BOLT

16

6503843

MOUNT

17

14D10

NUT Was 14K000010B - A

18

6505571

END cable end

19

6505206

BUSHING

20

MOTOR See Illustration HYDROSTATIC MOTOR/ D1850 See Illustration HYDROSTATIC MOTOR/ D1354

21

97G640

SET SCREW Was 6514574 - A

22

6502023

STOP

23

25E13

WASHER 5

24

6591453

GASKET

25

85D8

NUT, 5
