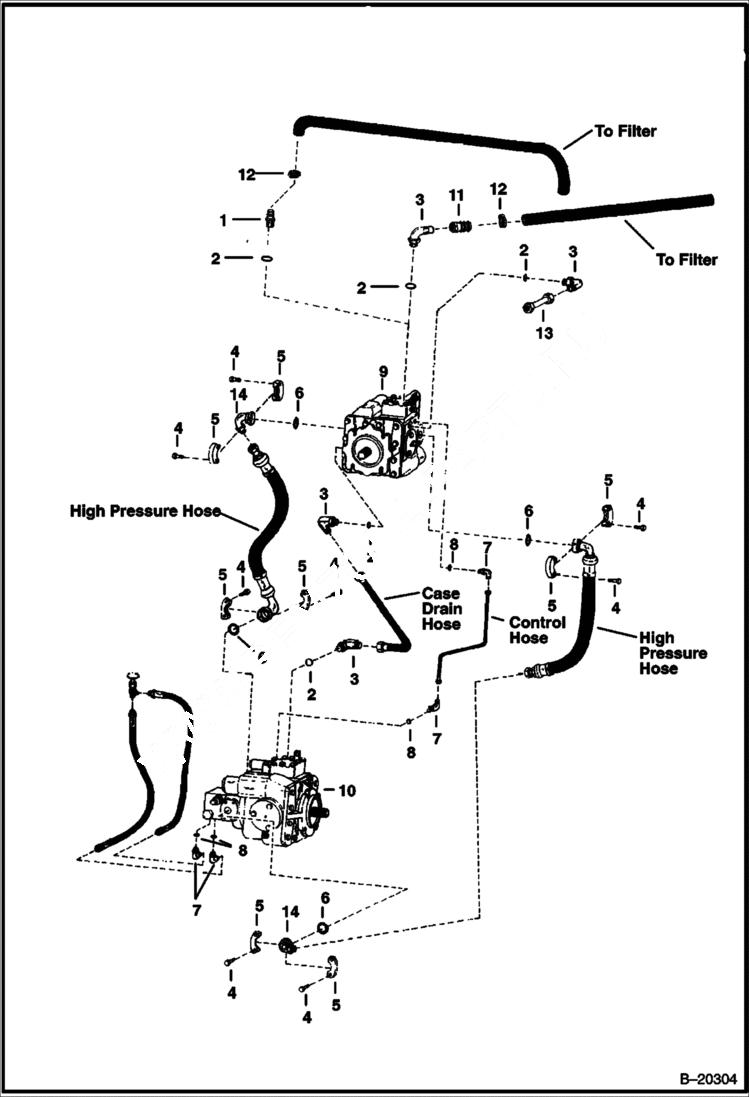

Запчасти Bobcat 900s HYDROSTATIC PUMP & MOTOR FITTINGS HYDROSTATIC SYSTEM

1

6503738

ADAPTER W/Ref. 2

2

79K10

O RING 10

3

17KB1210

FITTING, HYD ELBOW W/Ref. 2 - Was 6714901 - A

4

17C620

BOLT

5

19J16

FLANGE

6

58K219

O RING 10

7

17K3

ELBOW W/Ref. 8

8

79K4

O RING 10

9

PUMP See Illustration HYDROSTATIC PUMP/ B18329 See Illustration HYDROSTATIC PUMP/ D1355

10

MOTOR See Illustration HYDROSTATIC MOTOR/ D1850 See Illustration HYDROSTATIC MOTOR/ D1354

11

742133

CPLG

12

42H12

CLAMP 10

13

6501736

TUBE

14

6504014

ELBOW 45 degrees
