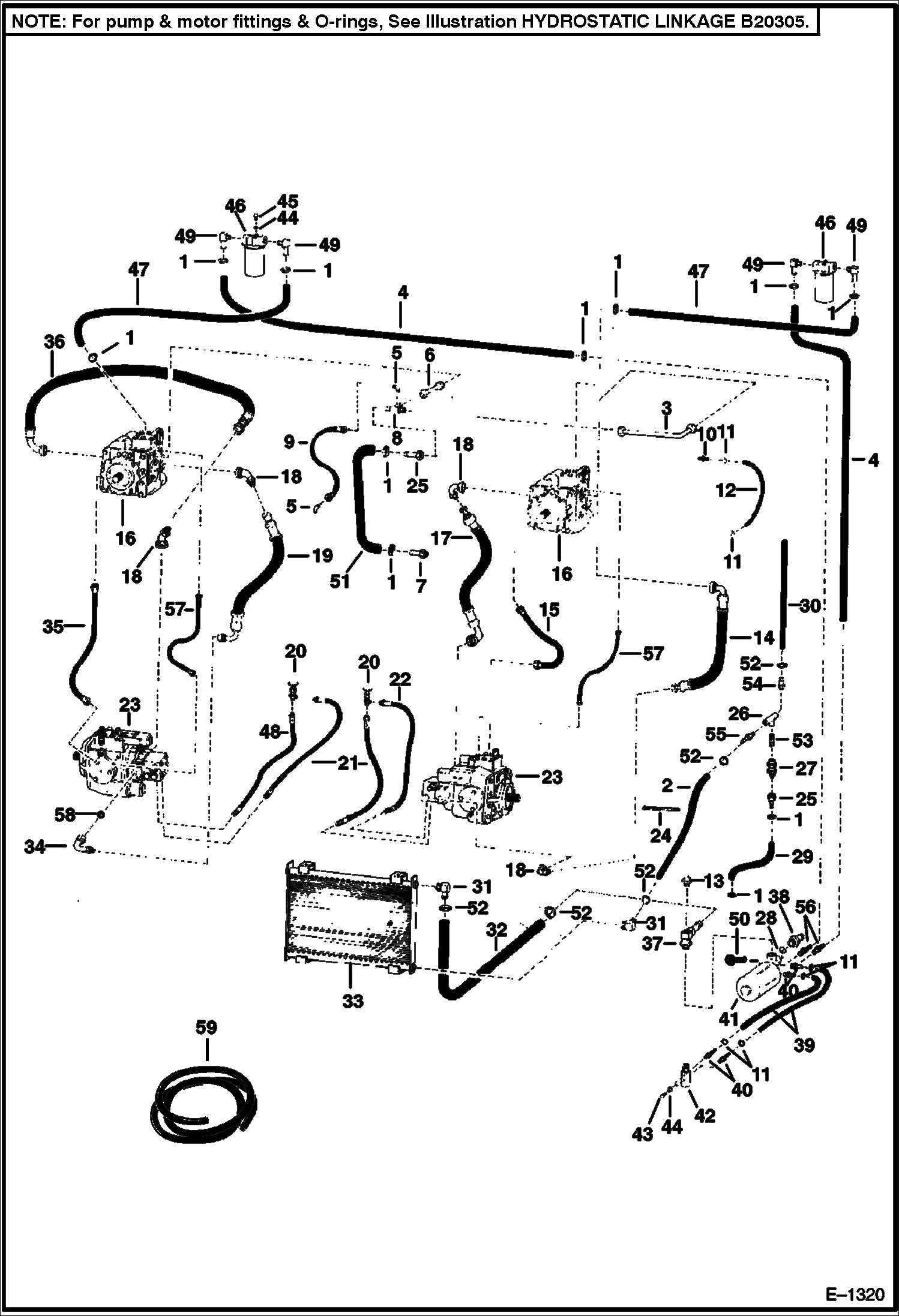

Запчасти Bobcat 900s HYDROSTATIC CIRCUITRY (S/N 12378 Thru 12816) HYDROSTATIC SYSTEM

1

42H12

CLAMP 10

2

6591480

HOSE

3

6501735

TUBE

4

6505232

HOSE

5

ELBOW NLA - 1/4'' - Was 731745 - A

5

1323661

ELBOW 3/8''

6

6501736

TUBE

7

667287

FITTING To Tankhead

8

6503723

TEE

9

6501737

HOSE To transfer case

10

6504132

CONNECTOR

11

42HS04

CLAMP, HOSE Was 6515575 - A

12

6504092

HOSE To Tankhead

13

6598384

SWITCH temp. sending

14

6641077

HOSE Was 6591075 - A

15

6591079

HOSE Was 6590949 - A

16

PUMP See Illustration HYDROSTATIC PUMP/ B18329 See Illustration HYDROSTATIC PUMP/ D1355

17

6641079

HOSE Was 6501807 - A

18

6504014

ELBOW 45 degree

19

6641080

HOSE Was 6590404 - A

20

6515511

VALVE crossover

21

6501801

HOSE

22

6501799

HOSE

23

MOTOR See Illustration HYDROSTATIC MOTOR/ D1850 See Illustration HYDROSTATIC MOTOR/ D1354

24

6610510

TIE retaining - Was 6591255 - A

25

742133

CPLG

26

6591478

TEE

27

6591479

BY-PASS

28

79K20

O RING 10

29

6591488

HOSE To Tank

30

HOSE NLA - To Valve - Order 22'' (558.8mm)- of 1310909B - Was 6591485 - A

31

6591484

ELBOW

32

HOSE NLA - Order 85'' (2159 mm) of 6673825 - Was 6591481 - A

33

6511958

OILCOOLER

34

6504013

ELBOW 90 degree

35

6590407

HOSE Was 6591079 - A

36

6641078

HOSE Was 6591100 - A

37

6591482

ELBOW

38

557492

ADAPTER W/Ref. 28

39

6590863

HOSE

40

6505813

CONNECTOR

41

FILTER See Illustration HYDRAULIC OIL FILTER/ C1319

42

6512571

INDICATOR

43

17C408

BOLT

44

25E13

WASHER 5

45

17C412

BOLT 5

46

6650030

HEAD Was 6519866 - A

46

6515541

ELEMENT

47

6591082

HOSE

48

6591080

HOSE

49

666844

ELBOW

50

17C616

BOLT 5

51

HOSE NLA - Cut to fit if necessary - Use 70'' (1778 mm) of Ref. 59 - Was 6591487 - A

52

44H20

CLAMP Was 6666864 - A

53

5K612

NIPPLE

54

FITTING NLA - Was 667290B - A

55

667289

FITTING

56

6511859

ADAPTER barbed

57

1516294

HOSE

58

58K219

O RING 10

59

755622

HOSE-BULK/FOOT bulk - sold per foot
