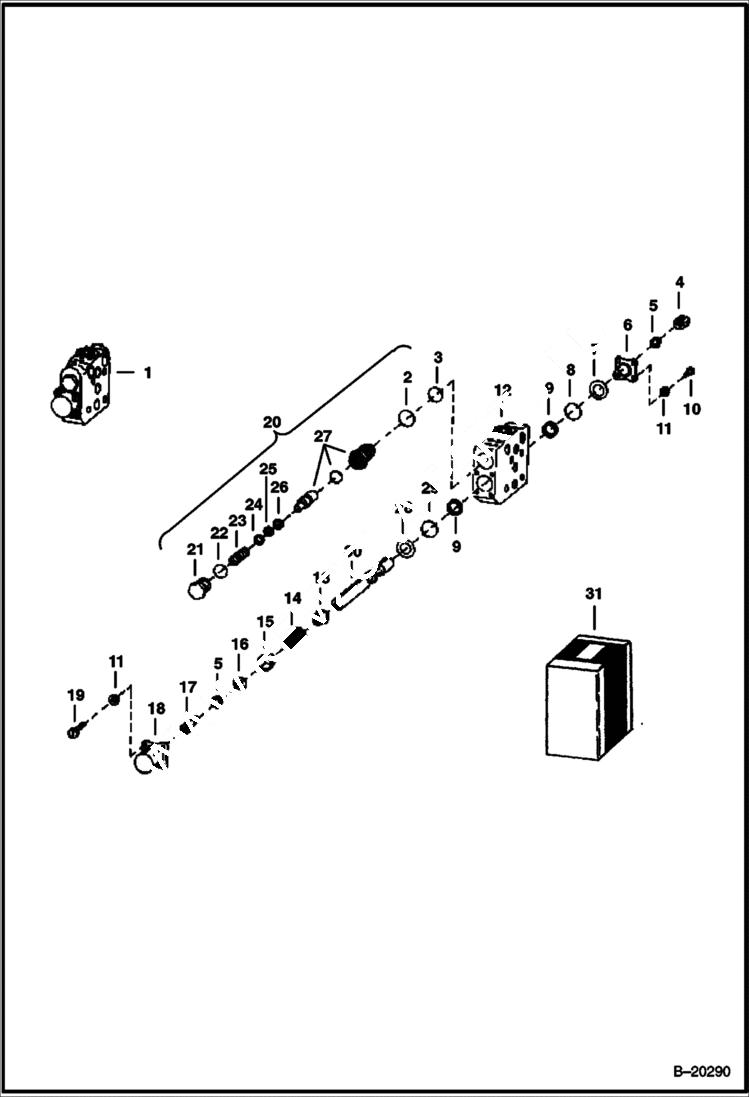

Запчасти Bobcat 900s VALVE SECTION (Mid-Inlet) HYDRAULIC SYSTEM

1

6511603

SECTION valve - Ref. 2-30

2

58K23

O RING 10

3

58K26

O RING 10

4

898372

ADAPTOR clevis

5

6518364

WASHER

6

6510751

RETAINER

7

SEAL PLATE NSS - Was 6510767 - A

8

O-RING NSS - Was 6510787 - A

9

945225

SEAL quad ring

10

5C410

BOLT W/Lock Washer

11

WASHER NSS

12

HOUSING NLA

13

6518327

COLLAR

14

6519047

SPRING

15

6510771

COLLAR

16

6510772

SPACER

17

73G612

CAPSCREW

18

6510765

BONNET

19

6647692

SCREW W/Lock Washer - Was 5C000416B - A

20

6655436

VALVE relief - W/Ref. 2, 3 & 21-27 - Was 6518315 - A

21

CAP NSS

22

79K8

O RING 10

23

SPRING NSS

24

896265

SHIM .010

25

896264

SHIM .020

26

896263

SHIM .030

27

POPPET NSS

28

PLATE NSS - Was 6510789 - A

29

O-RING NSS - Was 6510788 - A

30

SPOOL NLA

31

6660105

SEAL KIT See Illustration VALVE ASSEMBLY/ C1649 COMPLETE FOR 1 SECTION
