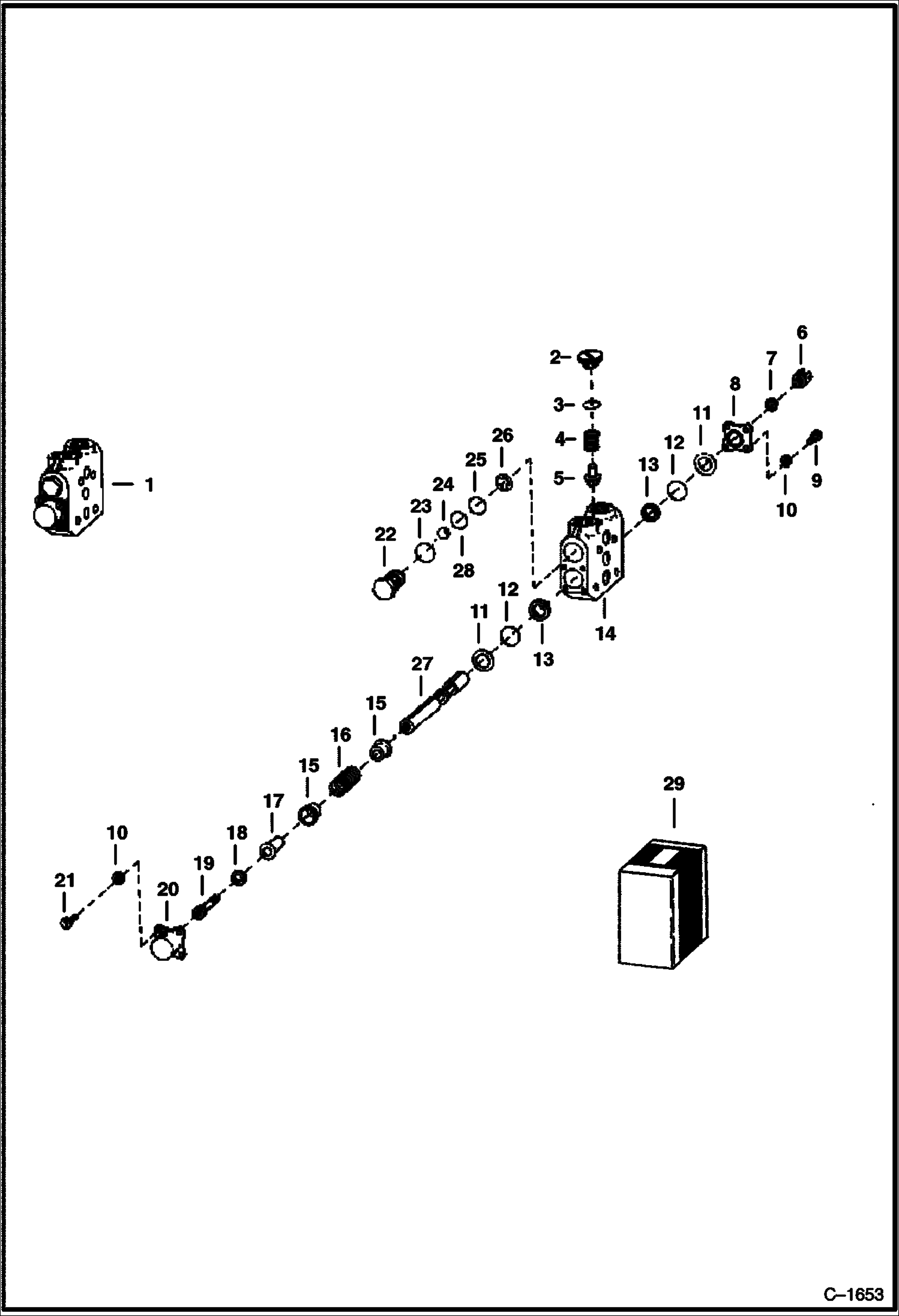

Запчасти Bobcat 900s VALVE SECTION (Tilt) HYDRAULIC SYSTEM

1

6511604

SECTION valve - Ref. 2 - 27

2

6510782

PLUG check - W/Ref. 3-5

3

79K14

O RING 10

4

6515082

SPRING

5

POPPET NSS

6

898372

ADAPTOR clevis

7

6518364

WASHER

8

6510751

RETAINER

9

5C410

BOLT

10

WASHER NSS

11

SEAL PLATE NSS - Was 6510767 - A

12

O-RING NSS - Was 6510787 - A

13

945225

SEAL quad ring

14

HOUSING NLA

15

6518327

COLLAR stop

16

6510773

SPRING

17

6510768

COLLAR

18

4E6

WASHER

19

73G612

CAPSCREW

20

6510765

BONNET

21

6647692

SCREW W/Lock Washer - Was 5C000416B - A

22

6518317

VALVE anti-cavitation - W/Ref. 23-26

23

58K23

O RING 10

24

CHECK BALL NSS

25

58K022

O-RING 10

26

RETAINER NSS - ball

27

SPOOL NLA

28

6669641

BKUP RING

29

6660105

SEAL KIT See Illustration VALVE ASSEMBLY/ C1649 COMPLETE FOR 1 SECTION
