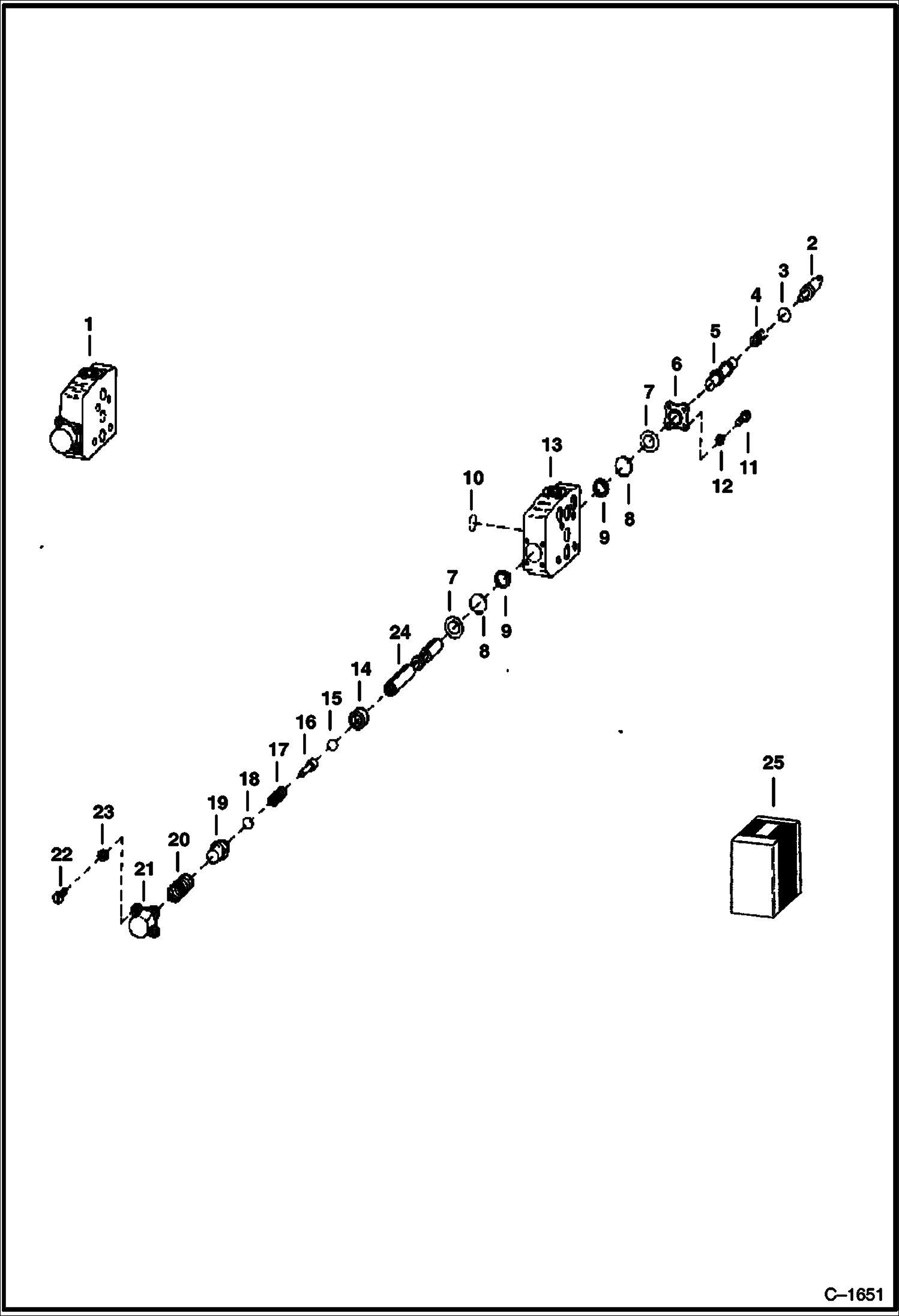

Запчасти Bobcat 900s VALVE SECTION (Self-leveling) HYDRAULIC SYSTEM

1

6511602

SECTION valve - ref. 2-24

2

6510779

ADAPTER clevis

3

79K8

O RING 10

4

6510762

SPRING

5

6510778

PISTON control

6

6510751

RETAINER seal

7

SEAL PLATE NSS - Was 6510767 - A

8

O-RING NSS - Was 6510787 - A

9

945225

SEAL quad ring

10

25K20020

O RING 10

11

89G408

BOLT

12

4E4

WASHER

13

HOUSING NLA - W/Spool

14

6510776

SPACER spool

15

10J12

BALL

16

6510777

FOLLOWER ball

17

SPRING NLA - Relief - Was 6510764 - A

18

79K6

O RING 10

19

6510775

CAP

20

6510774

SPRING

21

6510765

BONNET

22

6647692

SCREW W/Lock Washer - Was 5C000416B - A

23

WASHER NSS

24

SPOOL NLA

25

6660105

SEAL KIT See Illustration VALVE ASSEMBLY/ C1649 COMPLETE FOR 1 SECTION
