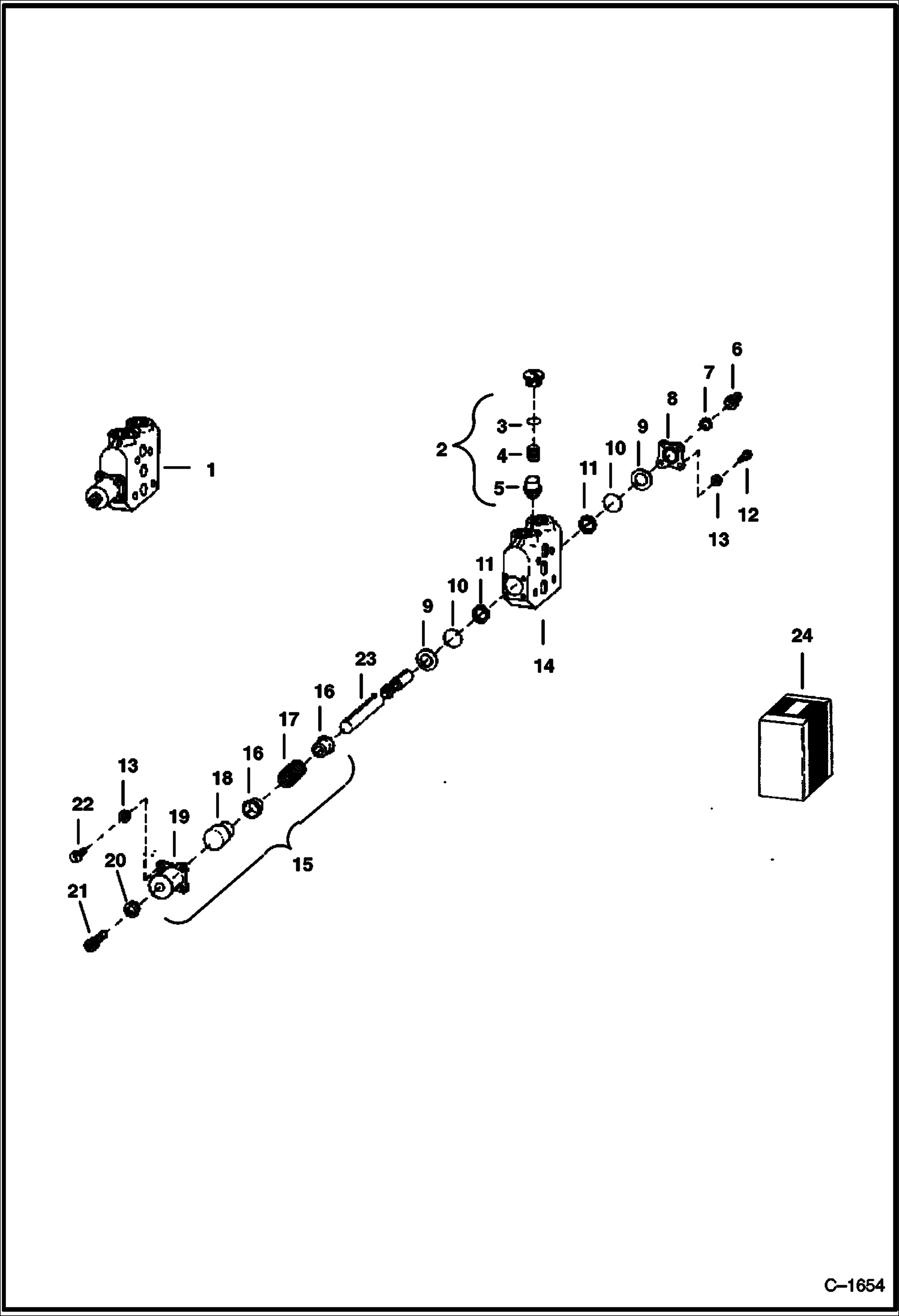

Запчасти Bobcat 900s VALVE SECTION (Auxiliary) HYDRAULIC SYSTEM

1

6510640

SECTION ref. 2-23

2

6510782

PLUG check - W/Ref. 3-5

3

79K14

O RING 10

4

6515082

SPRING

5

POPPET NSS

6

6518337

ADAPTER clevis

7

6518364

WASHER

8

6510751

RETAINER seal

9

SEAL PLATE NSS - Was 6510767 - A

10

O-RING NSS - Was 6510787 - A

11

945225

SEAL quad ring

12

5C410

BOLT W/Lock Washer

13

WASHER NSS

14

HOUSING NLA

15

6510783

KIT detent - W/Ref. 16-19

16

COLLAR NSS - stop

17

SPRING NSS

18

SLEEVE NSS - detent

19

BONNET NSS - detent

20

4E7

WASHER

21

SCREW NLA - Was 18C000708B - A

22

6647692

SCREW W/Lock Washer - Was 5C000416B - A

23

SPOOL NLA

24

6660105

SEAL KIT See Illustration VALVE ASSEMBLY/ C1649 COMPLETE FOR 1 SECTION
