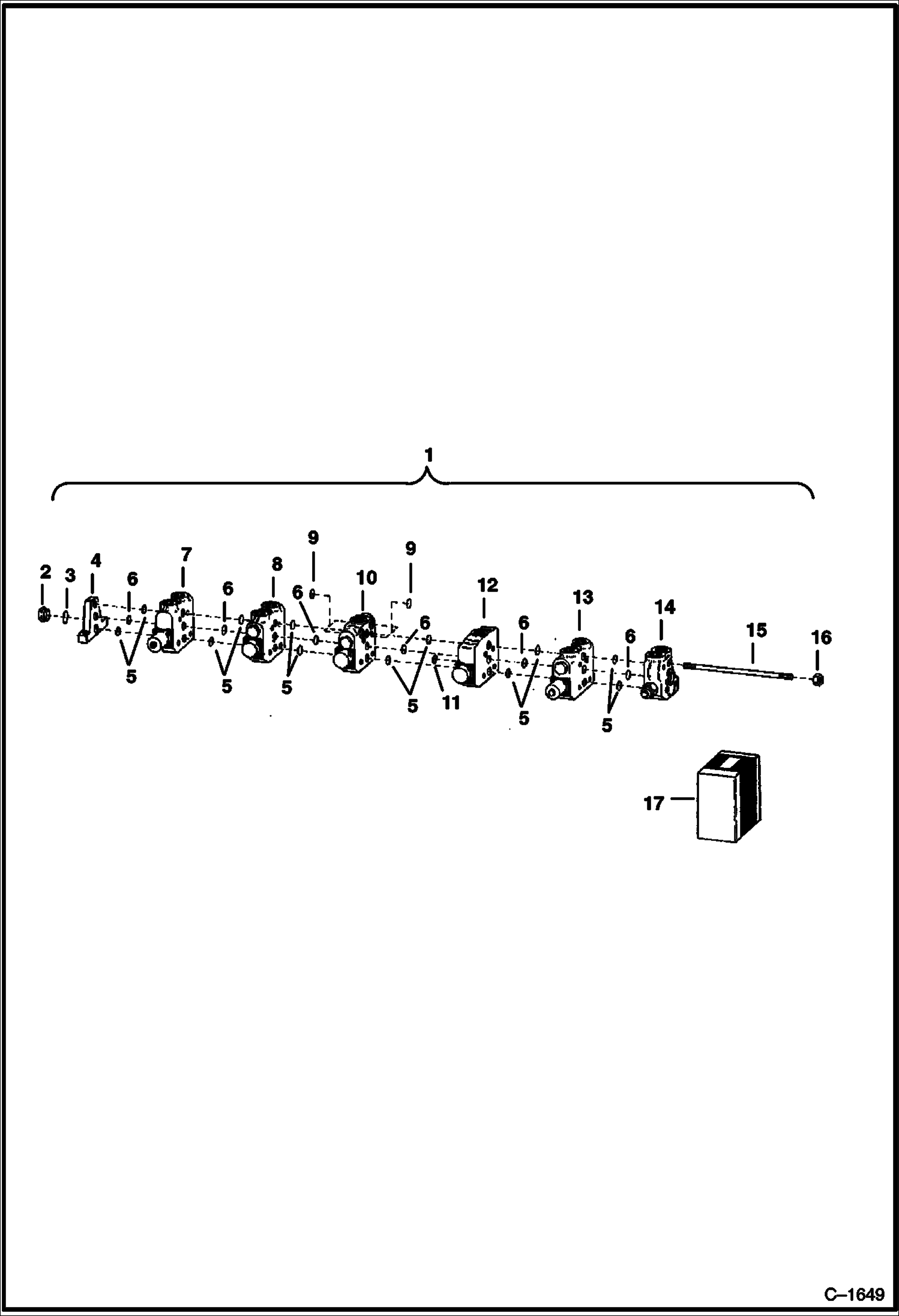

Запчасти Bobcat 900s VALVE ASSEMBLY HYDRAULIC SYSTEM

1

6649552

VALVE, CONTROL Was 6599446 - A

2

24K10

PLUG W/Ref. 3

3

79K16

O RING 10

4

6511605

COVER end

5

O-RING NSS

6

O-RING NSS

7

6510640

SECTION See Illustration VALVE SECTION/ C1654 AUXILIARY

8

6511604

SECTION See Illustration VALVE SECTION/ C1653 TILT

9

25K20014

O RING 10

10

6511603

SECTION See Illustration VALVE SECTION/ B20290 MID-INLET

11

25K20020

O RING 10

12

6511602

SECTION See Illustration VALVE SECTION/ C1651 SELF-LEVELING

13

6631492

SECTION See Illustration VALVE SECTION/ C1650 LIFT

14

6510635

SECTION See Illustration VALVE SECTION/ B1593 INLET

15

6510763

STUD

16

81D6

NUT

17

6660105

SEAL KIT for one section only- Includes Ref. 5 & 6 Order qty. 6 for complete valve - Was 6641220 - A
