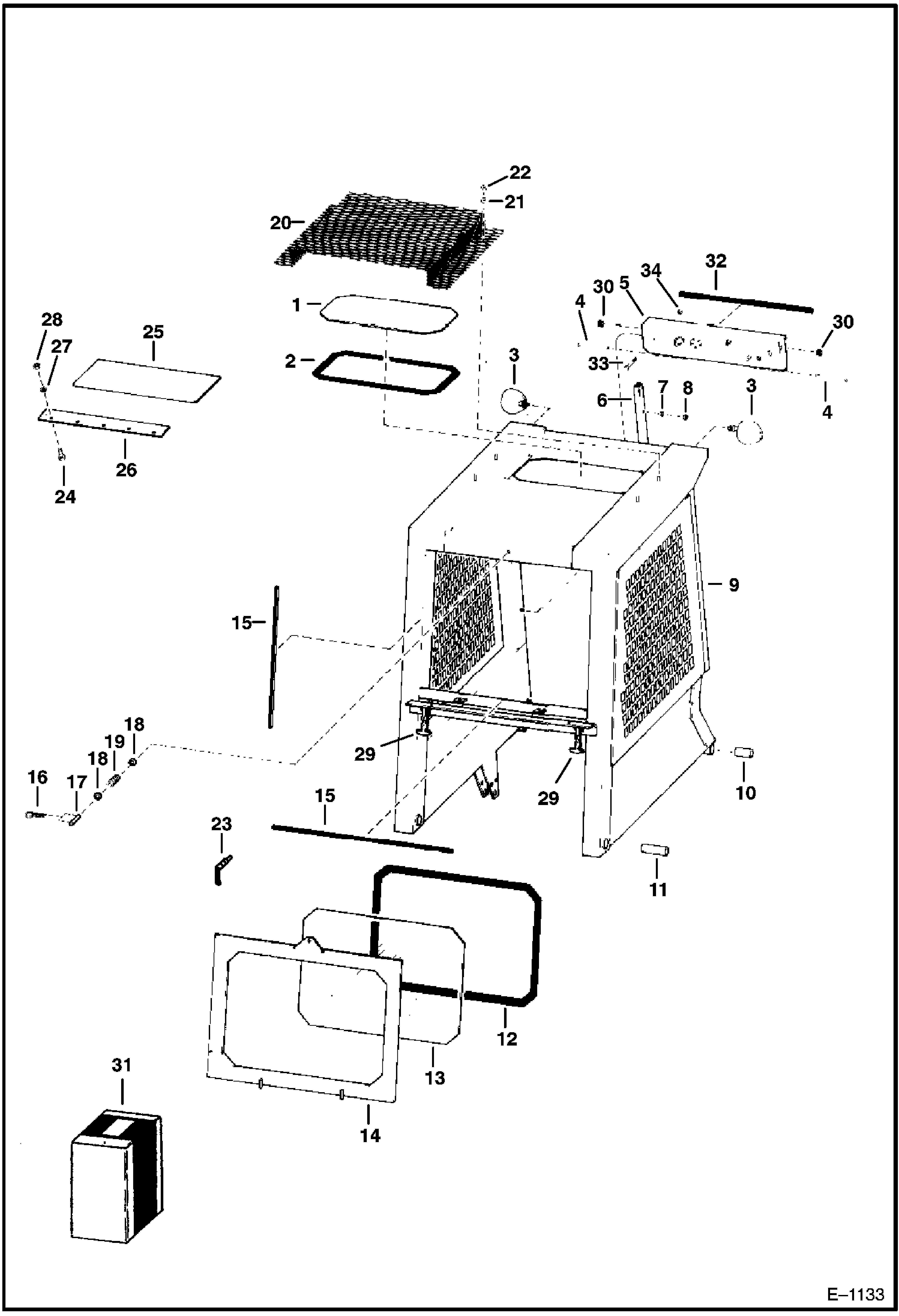

Запчасти Bobcat 900s OPERATOR CAB MAIN FRAME

1

TOP WINDOW NLA

2

SEAL NLA - locking

3

HEADLIGHT NLA - W/Mounting Hardware - Order 6644980 or 6644961 - Was 6517676 - A

4

HINGE PIN NLA

5

6548598

PANEL instrument

5

6529394

PANEL instrument

6

CHANNEL NLA

7

4E4

WASHER

8

61D4

NUT 5

9

6592525

CAB Was SALES - A

10

MOUNT NLA - shock - rubber - Was 6544300 - A

10

6538639

BUSHING metal

11

6544301

MOUNT shock - Rubber

12

6546964

SEAL locking

13

6590670

REAR WINDOW

14

6590278

WINDOW FRAME

15

STRIP WEATHER NLA

16

1318566

PIN Hair Pin

17

6590232

PIN

18

25E25

WASHER 10

19

699518

SPRING

20

6590041

WINDOW COVER

21

25E18

WASHER

22

61D6

NUT 5

23

LATCH NLA - Was 6519179 - A

24

17C516

BOLT

25

6590862

TOP WINDOW

26

6590852

STRIP hold down

27

25E15

WASHER

28

91D5

NUT 5 Was 81D000005B - A

29

1547283

LATCH ASY

29

1F308

PIN, COTTER if equipped

30

6518242

GROMMET

31

6591146

KIT top window - to install top window like the one used on 1080 machine

32

6512686

MOULDING bulk - Sold Per Foot

33

35C512

BOLT

34

5205026

NUT
