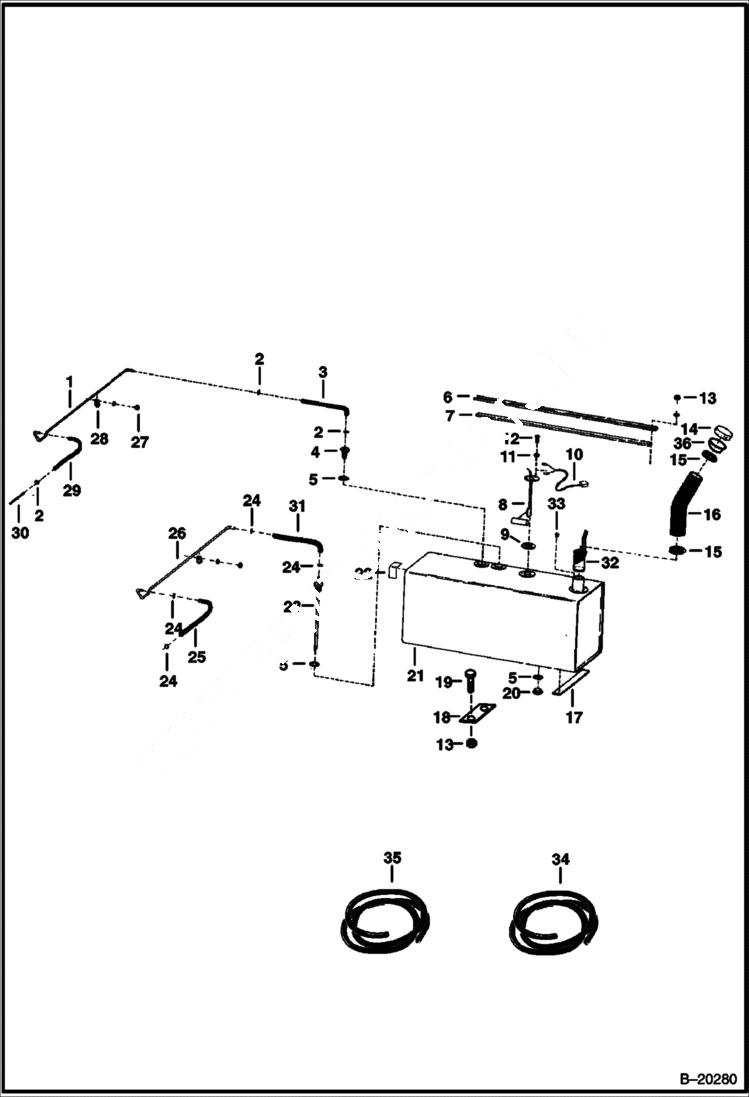

Запчасти Bobcat 900s FUEL TANK MAIN FRAME

1

6590127

TUBE

2

42HS04

CLAMP, HOSE Was 6515575 - A

3

HOSE NLA - 12-1/4'' (311,2 mm) long - Order Ref. 35 - Was 6590821 - A

4

6518596

ADAPTER

5

6504426

GASKET

6

6503894

BAR

7

6542877

STRAP web - Bulk-Sold Per Foot-Was 6503895 - A

8

6598921

SENDER fuel level

9

6519201

GASKET

10

6594344

HARNESS fuel - Was NLA - D

11

17E10

WASHER

12

85G1008

SCREW

13

81D6

NUT

14

6515566

CAP

15

42H40

HOSECLAM5

16

6504103

HOSE

17

6504882

STRAP web

18

6507614

COVER

19

37C624

BOLT Was 7C624 - A

20

16F12

PLUG

21

6501671

TANK

22

6504405

PAD

23

6543961

TUBE fuel suction

24

42HS04

CLAMP, HOSE Was 6515575 - A

25

HOSE NLA - 29'' (736,6 mm) long - Order Ref. 34 - Was 6548763 - A

26

6590126

TUBE

27

81D4

NUT

28

31H6

CLAMP tube

29

HOSE NLA - fuel - 48'' (1219,2 mm) long - Order Ref. 35 - Was 6590162 - A

30

6543392

TUBE fuel

30

6592723

TUBE fuel

31

HOSE NLA - 2-1/4'' (57,2 mm) long - Order Ref. 34 - Was 6590822 - A

32

6529358

STRAINER Was 5200037B - A

33

18G1008

SCREW

34

6577822

HOSE bulk - Sold Per Foot - Was 6562575 - A

35

6577821

HOSE bulk - sold per foot - Was 672221 - A

36

6515570

NECK
