Запчасти Bobcat 900s CAB ENCL0SURE (Special Applications) ACCESSORIES & OPTIONS

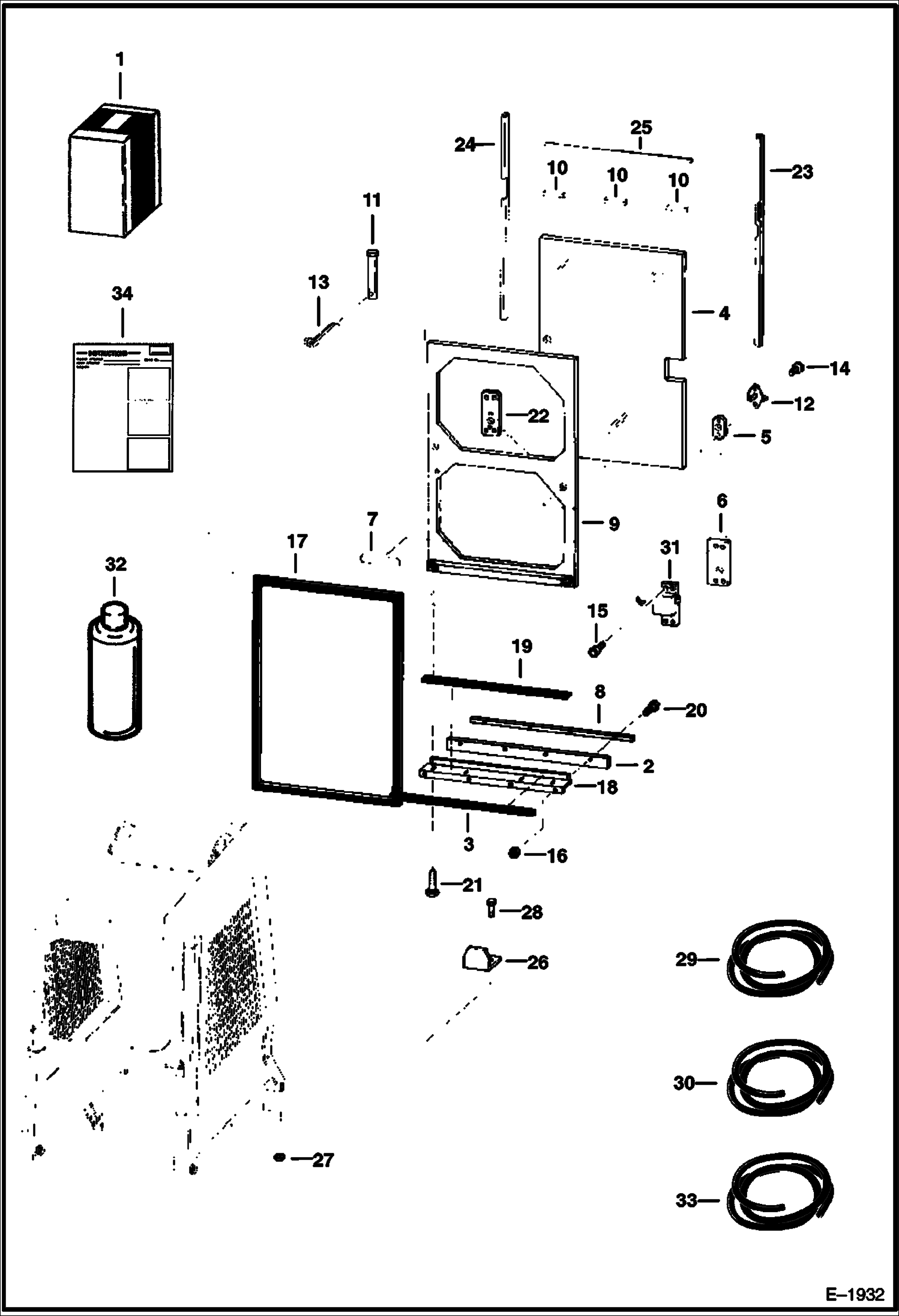

Схема запчастей Bobcat 900s - CAB ENCL0SURE (Special Applications) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

KIT NLA - Order components - Was SALES - A

2

6532772

SEAL

3

SEAL NLA - foam - 27'' (685,8 mm) long - Order Ref. 33

4

6529761

WINDOW

5

6529763

COVER PLATE

6

6530960

SPACER PLATE

7

6531482

DECAL

8

6532771

SPACER

9

6532281

DOOR

10

SEAL NLA - 5'' (127,0 mm) long - Order Ref. 30

11

6592594

HINGE PIN

12

6599649

HANDLE

13

1F208

PIN

14

35C412

BOLT Was 25G000412B - B

15

73G412

SCREW

16

85D4

NUT 5

17

SEAL NLA - foam - Order Ref. 29

18

6532769

PLATE

19

SEAL NLA - 27''( 685,8 mm) long - Order Ref. 30

20

17C412

BOLT 5

21

84G3112

BOLT 5

22

6529759

PLATE LATCH

23

6592535

STOP R.H. - Use only on 974, 975

24

6592534

STOP L.H. - Use only on 974, 975

25

6592979

DOOR STOP Top - Use only on 974, 975

26

6592734

STOP Use only on 974, 975

27

57D8

NUT 10 Use only on 974, 975

28

9G824

SCREW Use only on 974, 975

29

SEAL NLA - bulk - Sold Per foot - Was 6620646 - A

30

6511855

SEAL self adhesive - bulk - sold per foot

31

6513680

LATCH ASSY.

32

6649320

SEALANT

33

6648416

SEAL BULK /FT bulk

34

6720880

INSTRUCTIONS Was 6570806 - A

Выбрано товаров: 34
