Запчасти Bobcat 900s BACK-UP ALARM ACCESSORIES & OPTIONS

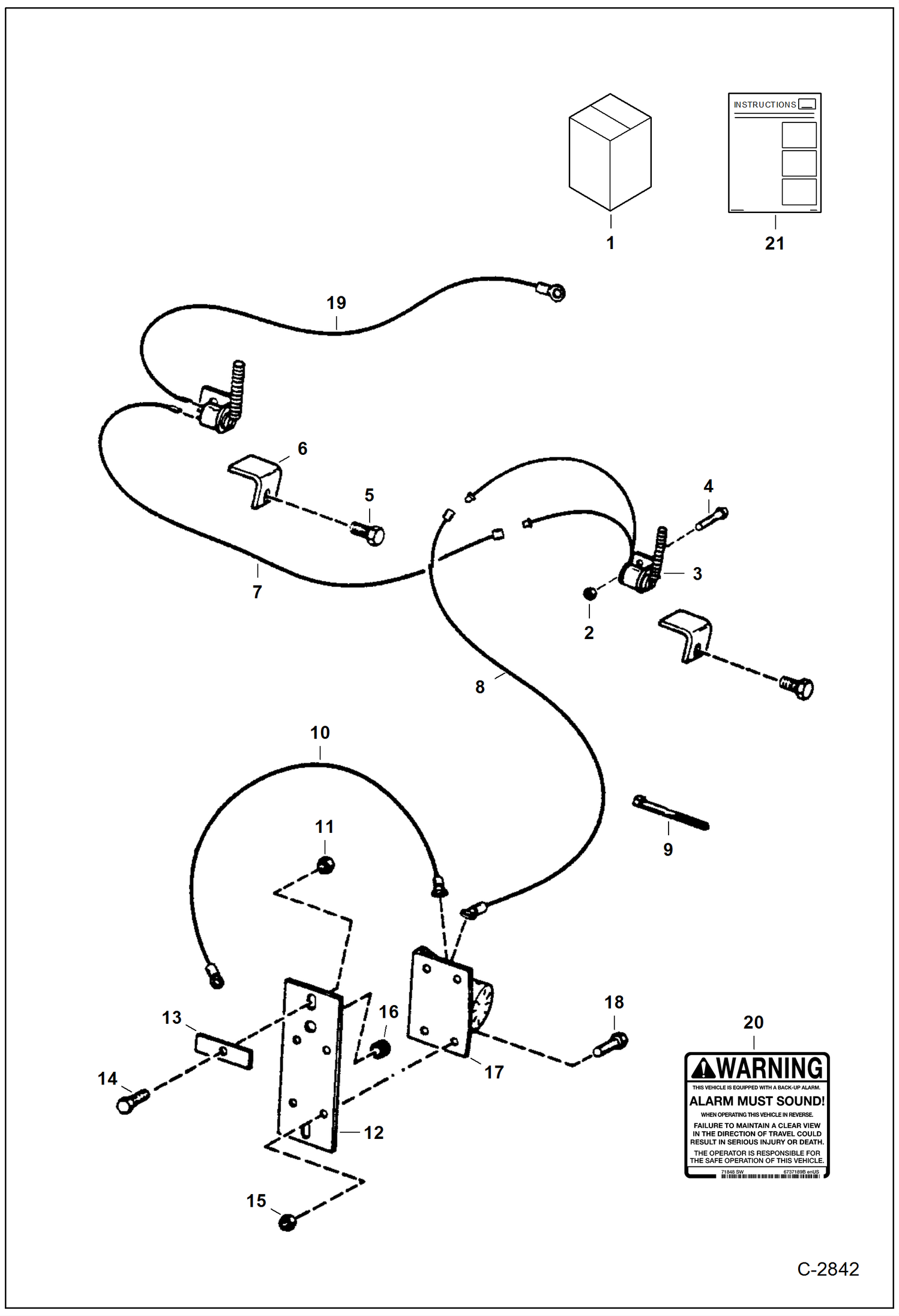

Схема запчастей Bobcat 900s - BACK-UP ALARM ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6592628

KIT back-up alarm - Ref. 2-20

2

85D5

NUT 5

3

6579011

SWITCH back-up - Was 6557640 - A

4

17C510

BOLT

5

17C624

BOLT 5

6

6592631

BRACKET switch

7

6592633

WIRE ASSY. 18''(457.2mm)

8

6592634

WIRE ASSY. 92''(2336.8mm)

9

6610510

TIE Was 6591255 - A

10

6592635

WIRE ASSY. 7''(177.8mm)

11

83D6

NUT 5

12

6592629

BRACKET mounting

13

6592630

PLATE spacer

14

84G3720

BOLT self-tapping

15

85D6

NUT, 5

16

1021036

GROMMET

17

6640795

ALARM back-up - Was 6519359 - A

18

17C614

BOLT

19

6592632

WIRE ASSY. 120''(3048.0mm)

20

6566531

INSTRUCTIONS

Выбрано товаров: 20
