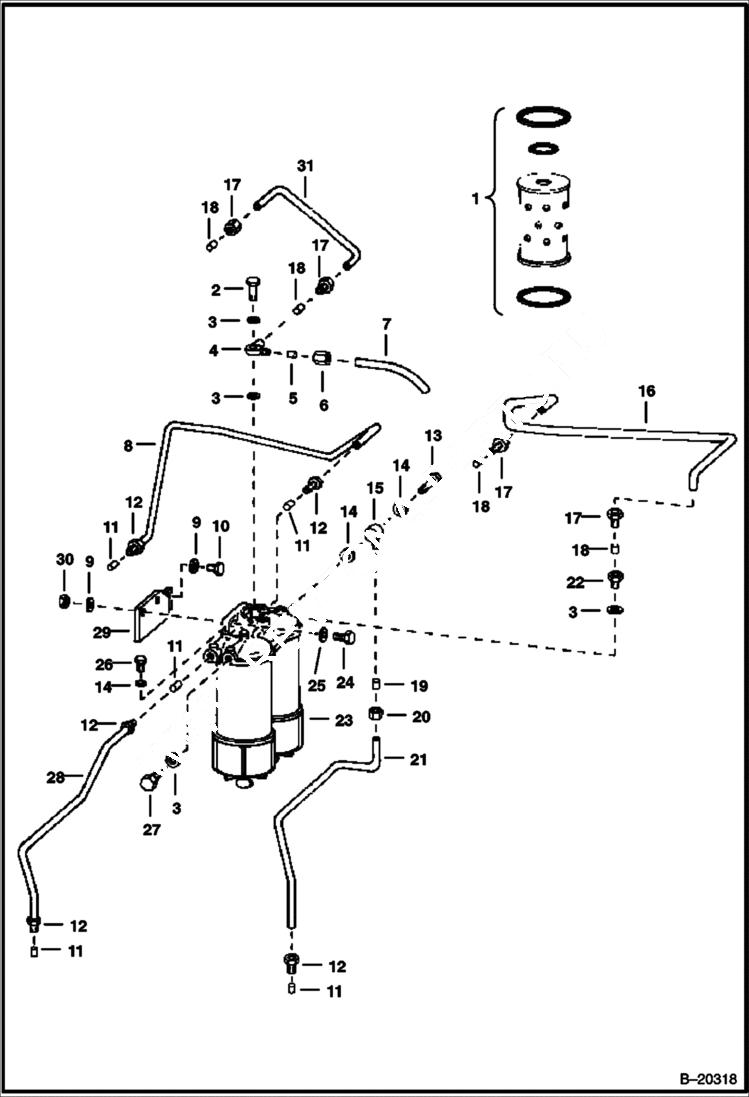

Запчасти Bobcat 900s TWIN FILTER (Engine Spec. LD 22557) POWER UNIT

1

961048

ELEMENT

2

3490352

BOLT

3

6513106

WASHER

4

3490200

FITTING banjo

5

57F3

SLEEVE

6

58F3

NUT

7

6543392

TUBE

7

6592723

TUBE

8

6513205

PIPE

9

4E6

WASHER

10

18C614

BOLT

11

3727375

FERRULE rubber

12

3727374

NUT

13

3727284

BOLT Was 3727254 - A

14

3727285

WASHER

15

3727283

CONNECTER banjo

16

6513198

PIPE heater

17

3490133

UNION NUT

18

3490132

SEAL

19

3729965

FERRULE

20

3729963

NUT

21

6513206

PIPE

22

6513122

VALVE

23

FILTER ASSY. NLA - W/Ref. 1 - Was 961154 - A

24

18C618

BOLT

25

3725703

WASHER

26

6515682

PLUG

27

6513105

PLUG

28

PIPE NLA - Was 6513207 - A

29

BRACKET NLA - Was 6513202 - A

30

62D6

NUT 5

31

PIPE NLA - Was 6513115 - A
