Запчасти Bobcat 900s FUEL FILTER (Engine Spec. LD 70095) POWER UNIT

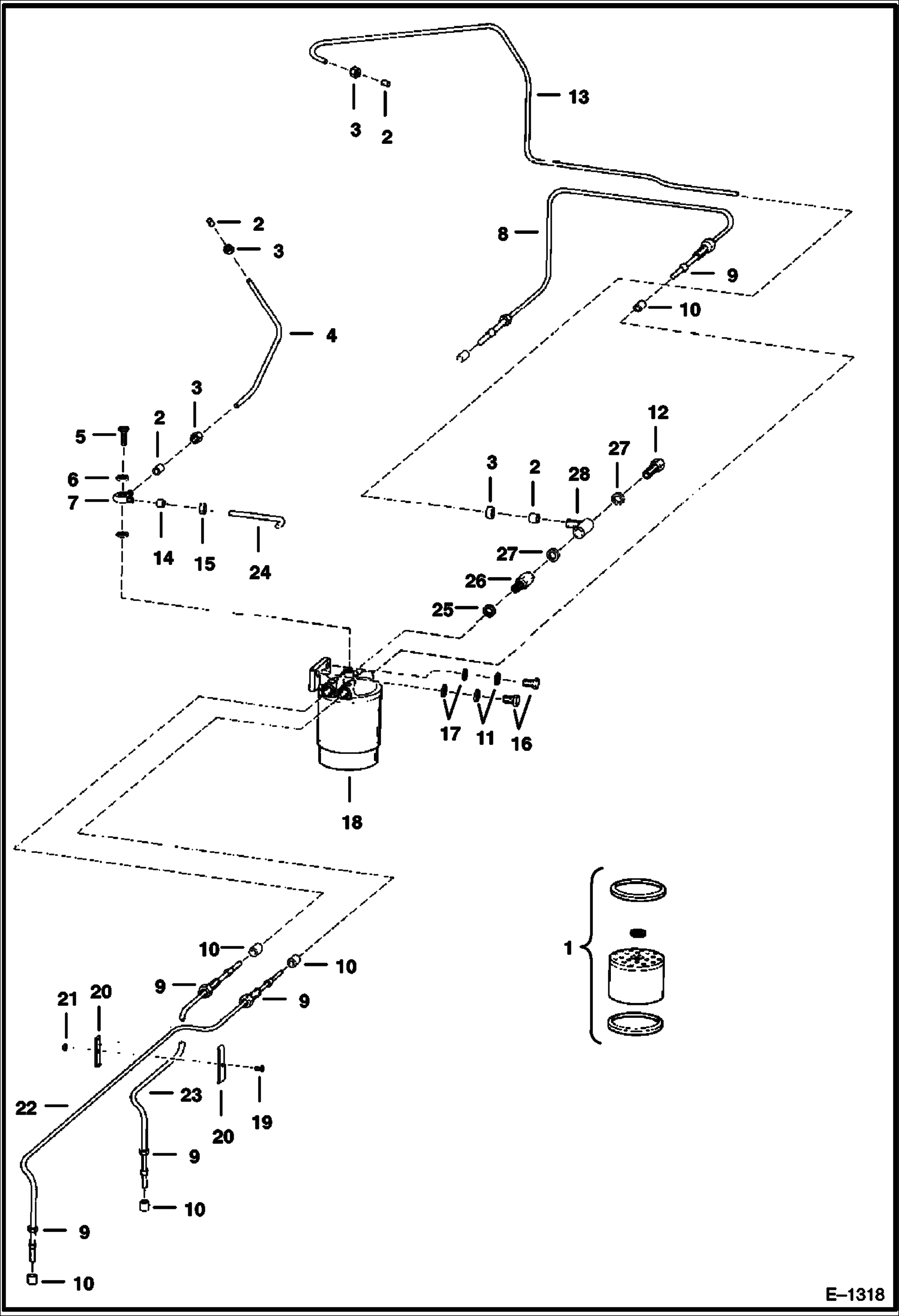

Схема запчастей Bobcat 900s - FUEL FILTER (Engine Spec. LD 70095) POWER UNIT

Артикул

Название

Примечание

Количество

1

3885315

FILTER, FUEL 12

2

3490132

SEAL

3

3490133

UNION NUT

4

6510648

TUBE To Injectors

5

3490352

BOLT

6

3490351

WASHER

7

3490200

FITTING

8

908198

PIPE To Fuel Pump - W/Nuts & Ferrules

9

3727374

NUT

10

3727375

FERRULE rubber

11

3725703

WASHER

12

3727284

BOLT

13

TUBE See Illustration CYLINDER BLOCK/ C1419 NLA - to heater - Was 6630482 - A

14

58F3

NUT

15

57F3

SLEEVE

16

18C618

BOLT

17

4E6

WASHER

18

6515756

FILTER secondary - W/Ref. 1

19

86G1014

BOLT

20

3725656

CLIP

21

1781096

NUT Was 3725658B - A

22

3739137

TUBE ASY To Injection Pump - W/Nuts & Ferrules

23

3739136

TUBE ASY To Injection Pump - W/Nuts & Ferrules

24

6543392

TUBE

25

6512689

WASHER

26

6510451

VALVE

27

6515755

WASHER

28

6510452

CONNECTION

Выбрано товаров: 28
