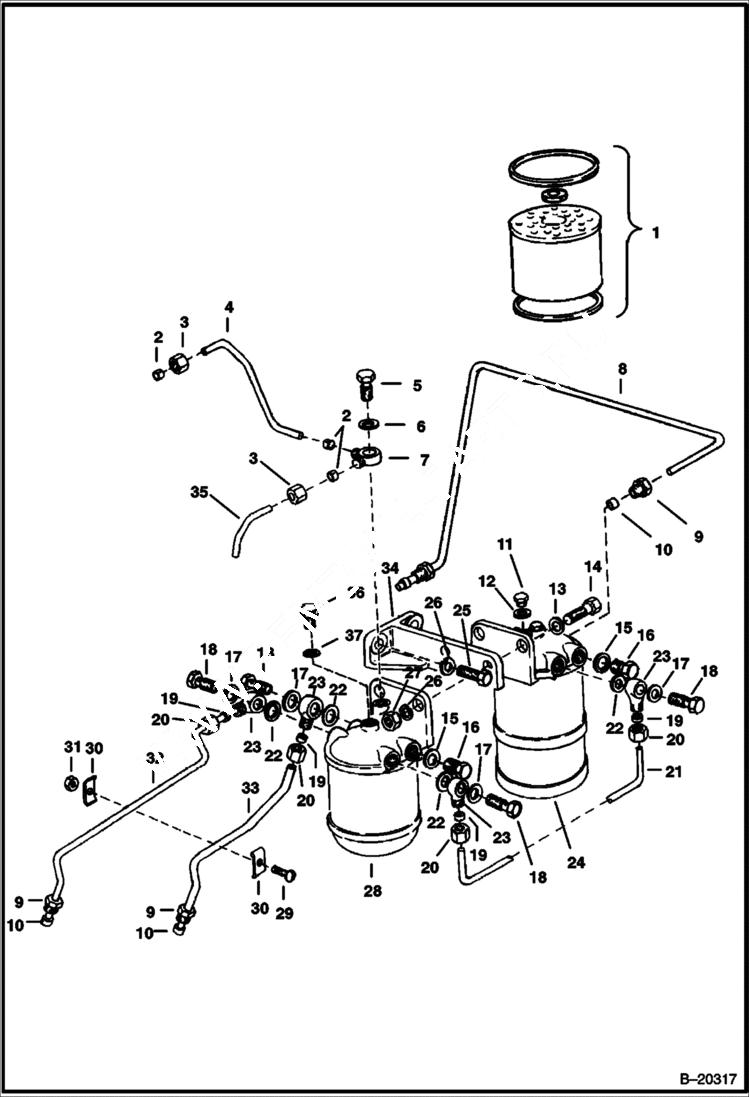

Запчасти Bobcat 900s FUEL FILTER (Engine Spec. LD 22557) POWER UNIT

1

3885315

FILTER, FUEL 12

2

3490132

SEAL

3

3490133

UNION NUT

4

6510648

TUBE

5

3490352

BOLT

6

3490351

WASHER

7

3490200

FITTING

8

6515758

PIPE

9

3727374

NUT

10

3727375

FERRULE

11

6515676

PLUG

12

3490721

WASHER

13

3725703

WASHER

14

18C628

BOLT

15

1781097

WASHER

16

6515682

PLUG

17

6515755

WASHER

18

3727284

BOLT inlet union

19

3729965

FERRULE

20

3729963

NUT

21

6515759

TUBE

22

3727285

WASHER

23

3727283

CONNECTER inlet

24

3551883

FILTER primary - W/Ref. 1

25

18C618

BOLT

26

4E6

WASHER

27

62D6

NUT 5

28

6515756

FILTER secondary - W/Ref. 1

29

86G1014

BOLT

30

3725656

CLIP

31

1781096

NUT Was 3725658B - A

32

6515761

TUBE

33

6515760

TUBE

34

6510646

BRACKET

35

6507611

TUBE

36

6636024

SCREW

37

6636025

WASHER
