Запчасти Bobcat 900s ROCKER ARM COVER (Perkins) POWER UNIT

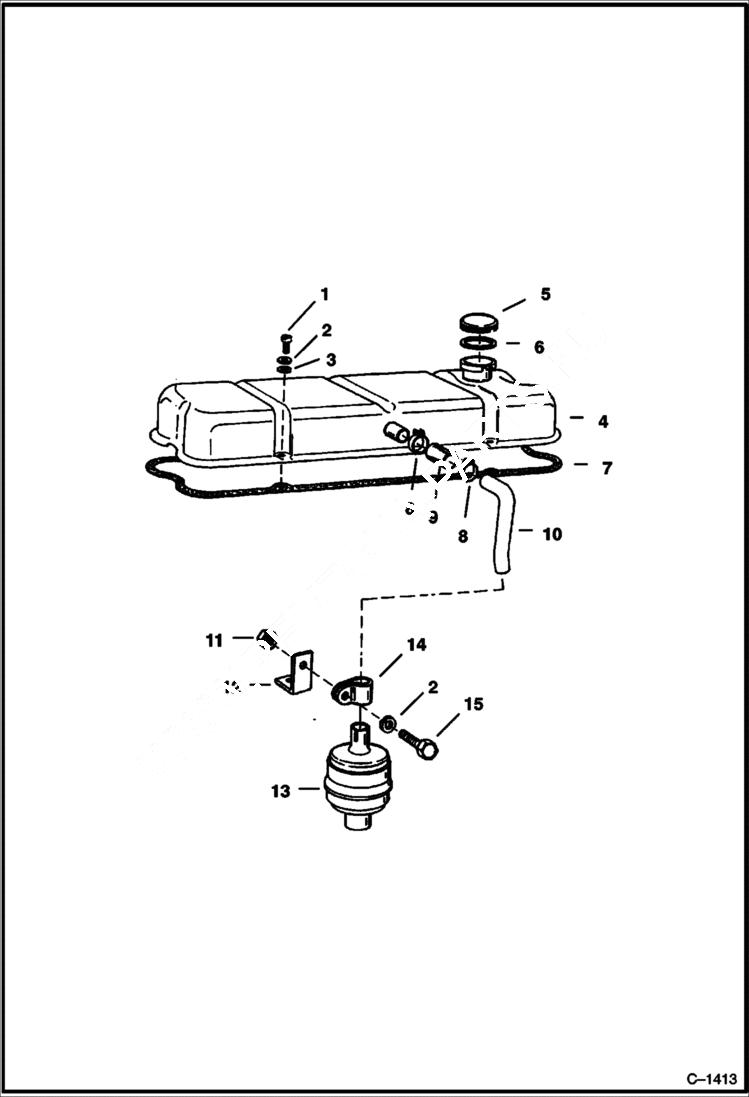

Схема запчастей Bobcat 900s - ROCKER ARM COVER (Perkins) POWER UNIT

Артикул

Название

Примечание

Количество

1

3725429

SCREW

1

18C410

BOLT

2

4E4

WASHER

3

3725430

WASHER

4

3725423

COVER See Illustration CYLINDER BLOCK/ C1419 engine block mounted oil filler

4

6513102

COVER

5

3725424

CAP oil filler

6

3725427

GSKT

7

6649448

GASKET Was 3725428B - A

8

42H12

CLAMP 10

9

6515709

CONNECTOR pipe

10

PIPE NLA - breather - Was 6515708 - A

11

3726714

NUT

12

BRACKET NLA - Was 6515711 - A

13

3739126

BODY breather

14

6H31

CLIP

15

18C408

BOLT

Выбрано товаров: 17
