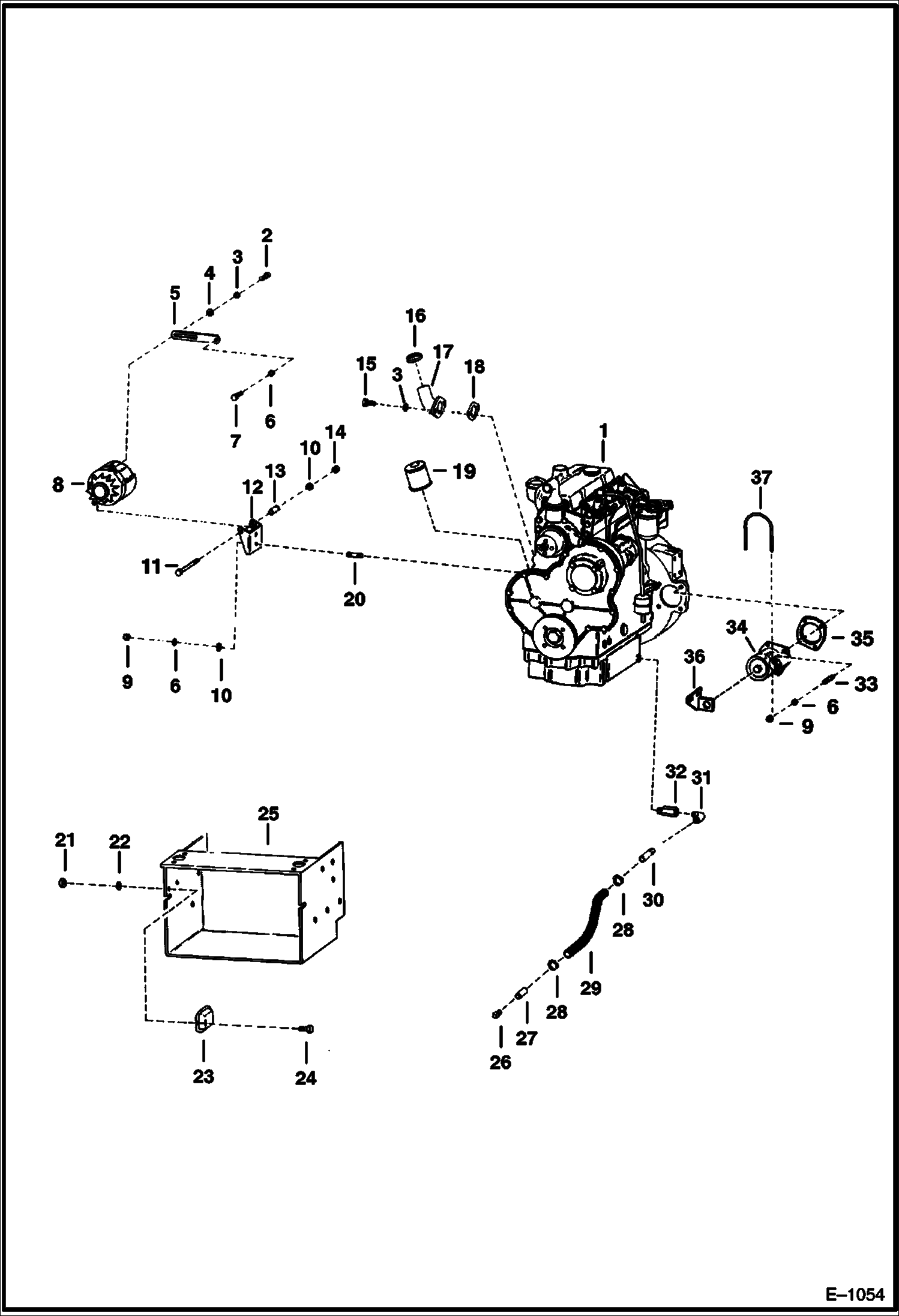

Запчасти Bobcat 900s ENGINE LUBRICATION & ELECTRICAL ATTACHING PARTS (Diesel) POWER UNIT

1

ENGINE See Illustration PERKINS DIESEL ENGINE/ B18337

2

17C512

BOLT 5

3

4E5

WASHER

4

3490105

WASHER

5

1781587

STRAP

6

4E6

WASHER

7

18C614

BOLT

8

ALTERNATOR See Illustration ALTERNATOR/ B18332 See BTI258 Was 1536554B - A

9

62D4

NUT

10

3725703

WASHER

11

6515774

BOLT

12

BRACKET NLA - 2.375'' (60.3mm) - Was 6515773 - A

12

6513119

BRACKET 3.545'' (90.04 mm) inside

13

SPACER NLA - Was 6515775 - A

14

3725381

NUT Was 3125381 - D

15

18C512

BOLT

16

3725424

CAP oil filler

17

6510005

TUBE oil filler

18

6515782

GASKET

19

6511766

OIL FILTER See Illustration LUBRICATION SYSTEM/ C1409 oil filter

20

3725702

STUD

21

61D4

NUT 5

22

4E4

WASHER

23

908239

VOLT REG voltage - Use old mounting bracket - Was 1810770B - A

24

17C412

BOLT 5

25

6507619

CASE battery

26

40K6

PLUG pipe - Was 10F000006B - A

27

75F3

COUPLING pipe

28

42H12

CLAMP 10 hose - Was 6515132 - A

29

6591082

HOSE Was 6503841 - A

30

6511859

ADAPTER half - Was 6504860 - A

31

26F4

ELBOW street

32

556579

ADAPTER

33

6519505

STUD

34

STARTER See Illustration STARTER/ B1388

34

STARTER See Illustration STARTER/ B18335

35

6598947

SPACER starter motor

35

6513121

SPACER starter motor

36

6592315

BRACKET

37

U-BOLT NLA - Order Ref. 36
