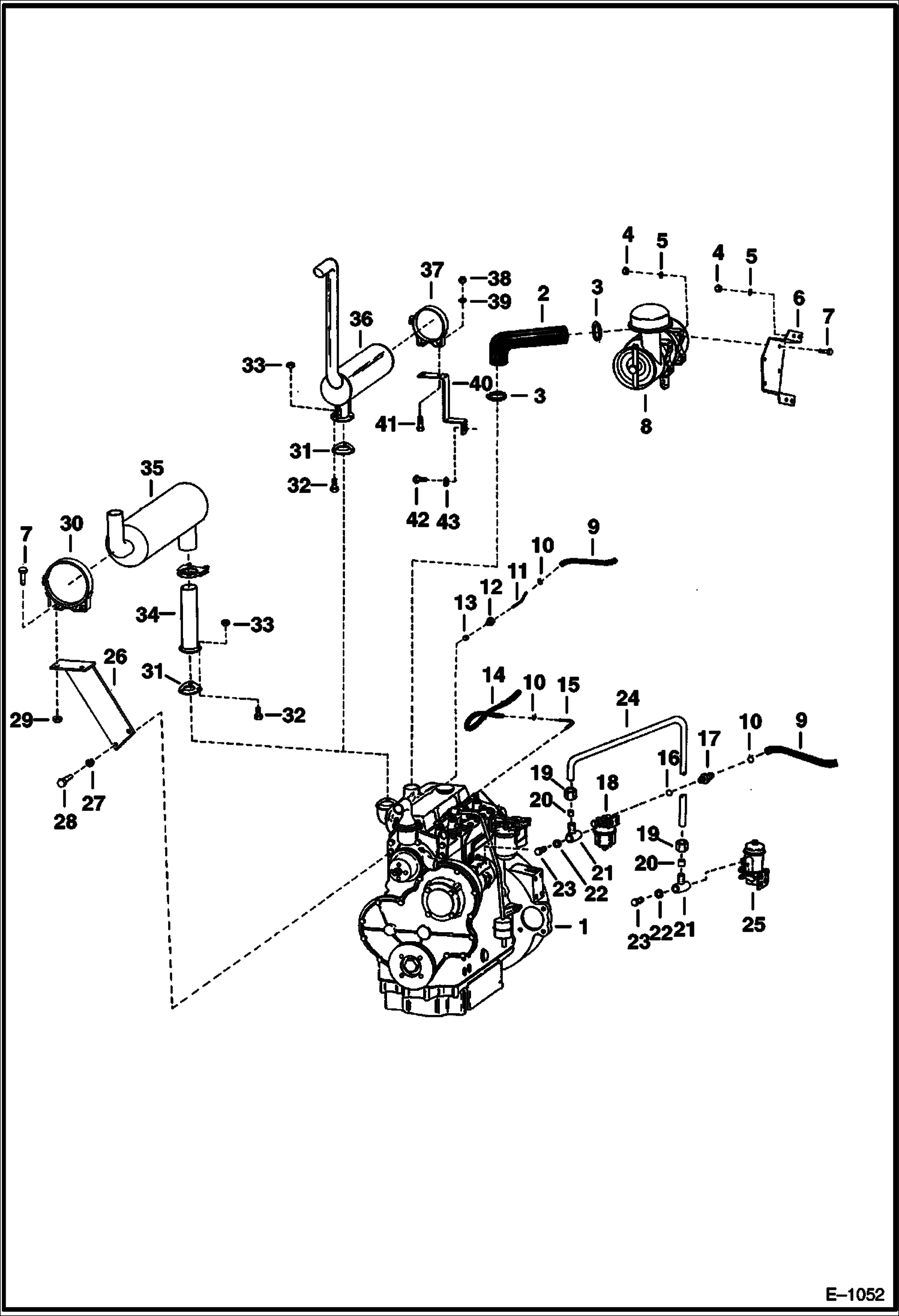

Запчасти Bobcat 900s ENGINE FUEL & EXHAUST PARTS (Diesel) POWER UNIT

1

ENGINE See Illustration PERKINS DIESEL ENGINE/ B18337

2

HOSE NLA - Was 6505185 - A

3

42H64

CLAMP hose

4

61D6

NUT 5

5

4E6

WASHER

6

BRACKET NLA - Was 6505224 - A

7

17C612

BOLT 5

8

AIR CLEANER See Illustration AIR CLEANER/ B1219

9

6590821

HOSE fuel

10

42HS04

CLAMP, HOSE Was 6515575 - A

11

6507611

TUBE fuel line

12

3490354

NUT

13

57F3

SLEEVE

14

6505207

HOSE fuel

15

6543392

TUBE fuel line - Was 6590873 - A

16

79K5

O RING 10

17

1324240

CONNECTOR

18

6513104

TRAP

18

6598739

GASKET upper

18

6598740

GASKET lower

19

3729963

NUT

20

3729965

FERRULE

21

3727283

CONNECTER banjo

22

3727285

WASHER

23

3727284

BOLT

24

6513203

TUBE

25

FUEL PUMP See Illustration FUEL PUMP/ B18340

26

BRACKET NLA - Was 6506764 - A

27

4E6

WASHER

28

18C636

BOLT

29

NUT NLA - Was 26D000006B - A

30

BAND NLA - Was 6506765 - A

31

6505237

GASKET

32

18C624

BOLT

33

NUT NLA - Was 15D6 - A

34

INLET NLA - Was 6506761 - A

35

6506766

MUFFLER spark arrestor

36

MUFFLER NLA - exhaust - Was 6508495 - A

37

6540573

BAND

38

61D5

NUT

39

4E5

WASHER

40

6540572

BRACKET

41

17C512

BOLT 5

42

18C612

BOLT

43

25E17

WASHER 5
