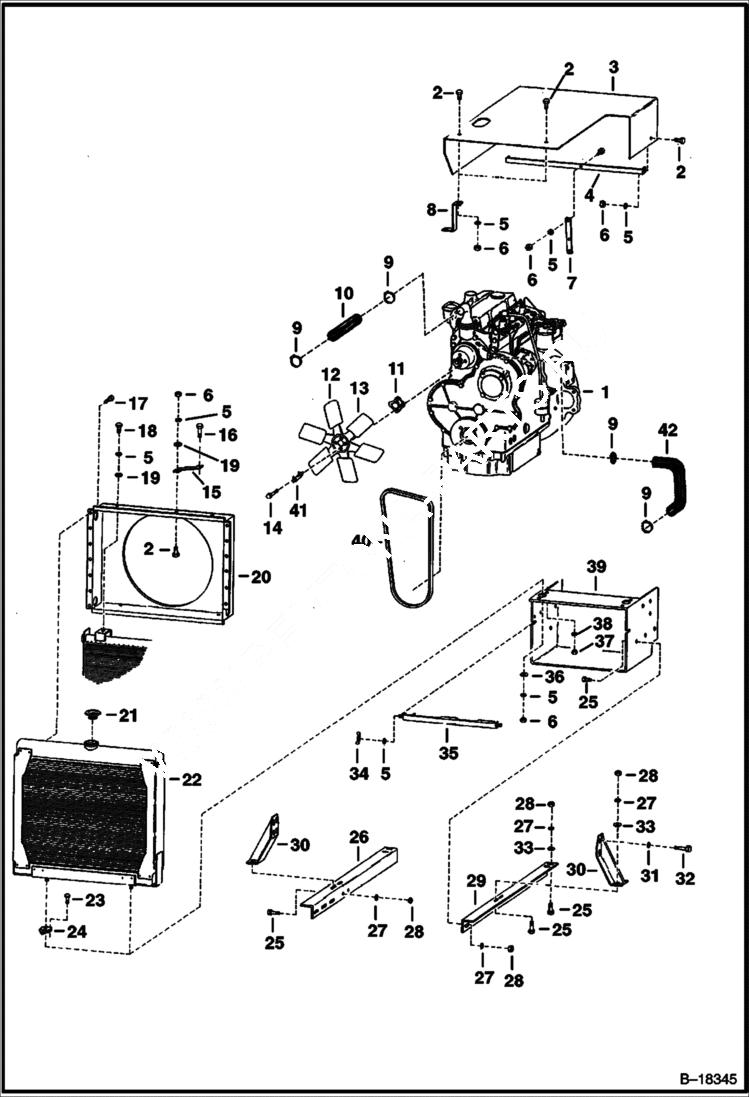

Запчасти Bobcat 900s ENGINE COOLING & MOUNTING PARTS (Diesel) POWER UNIT

1

ENGINE See Illustration PERKINS DIESEL ENGINE/ B18337

2

17C616

BOLT 5

3

HOOD NLA - engine - Was 6506538 - A

4

BRACKET NLA - Was 6506535 - A

5

4E6

WASHER

6

61D6

NUT 5

7

BRACKET NLA - Was 6506536 - A

8

BRACKET NLA - Was 6506537 - A

9

42H32

HS CLAMP5 hose - Was 6515173 - D

10

HOSE NLA - radiator - Was 6505236 - A

11

3739064

EXTENSION fan

12

6519189

FAN Puller Type

13

6645244

FAN Pusher Type - Was 1719160B - A

14

18C518

BOLT

15

6505230

BRACKET radiator

16

18C628

BOLT

17

17C408

BOLT

18

17C608

BOLT

19

25E17

WASHER 5

20

6501740

SHROUD fan

21

6511985

CAP radiator

22

RADIATOR NLA - Was 6515512 - A

23

45G1010

SCREW HEX MACHINE

24

MOUNT NLA - radiator - Was 6505205 - A

25

17C824

BOLT 5

26

MOUNT NLA - engine - left - Was 6505187 - A

27

4E8

WASHER

28

61D8

NUT 5

29

6505186

MOUNT engine - Right

30

6591957

BRACKET

31

4E7

WASHER

32

18C720

BOLT

33

25E21

WASHER 5

34

16D6

NUT

35

RETAINER battery NLA - battery - Was 6507620 - A

36

1663242

WASHER

37

12D10

NUT

38

17E10

WASHER

39

6507619

CASE battery

40

6516339

BELT

41

4E5

WASHER

42

HOSE NLA - radiator - Was 6505235 - A
