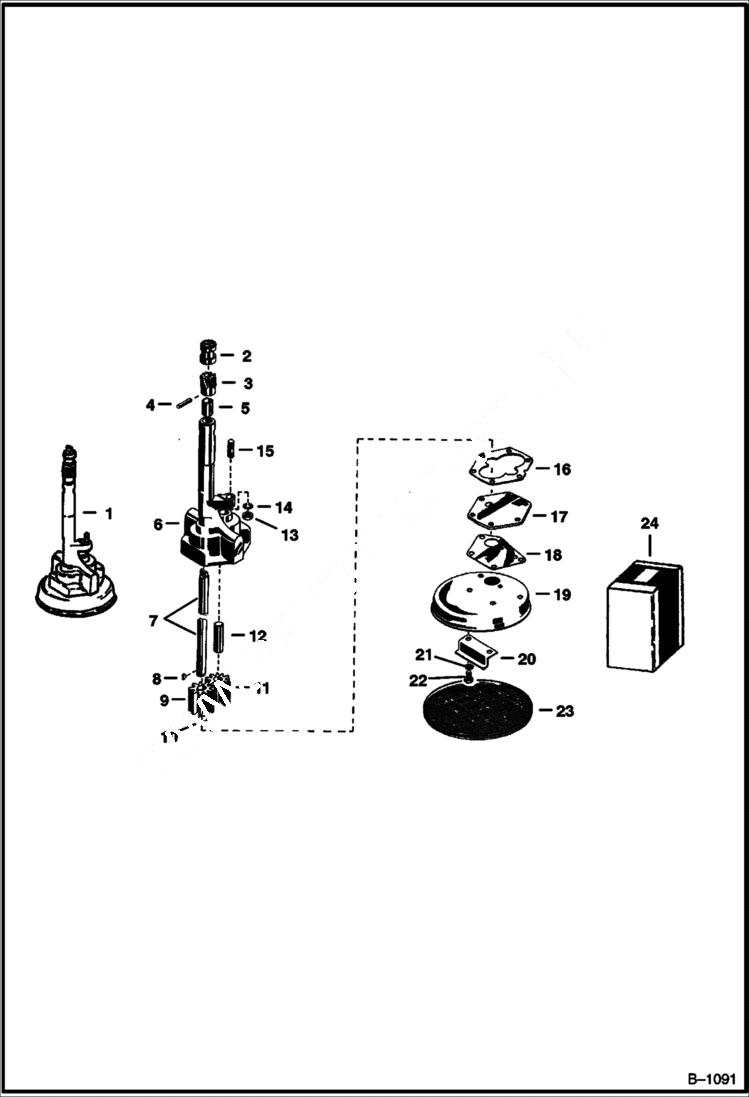

Запчасти Bobcat 900s OIL PUMP (Continental) POWER UNIT

1

OIL PUMP NLA - Ref. 2-23 - Was 860318 - A

2

BUSHING NLA - Was 851140B - A

3

DRIVE GEAR NSS

4

PIN NSS

5

PIN NLA - Was 851068B - A

6

BODY NLA

7

SHAFT NLA - Was 851138B - A

8

KEY NSS

9

GEAR NSS

10

RETAINER NSS

11

GEAR NSS

12

STUD NLA - Was 851146B - A

13

61D6

NUT 5

14

4E6

WASHER lock

15

851382

STUD

16

GASKET NSS

17

COVER NLA - Was 889844B - A

18

GASKET NSS

19

FRAME NLA - Was 850600B - A

20

SPACER NLA - Was 850602B - A

21

4E4

WASHER lock

22

18C410

BOLT

23

SCREW NLA - Was 850603B - A

24

877781

REP KIT Ref. 3, 4, 8-11, 16 & 18
