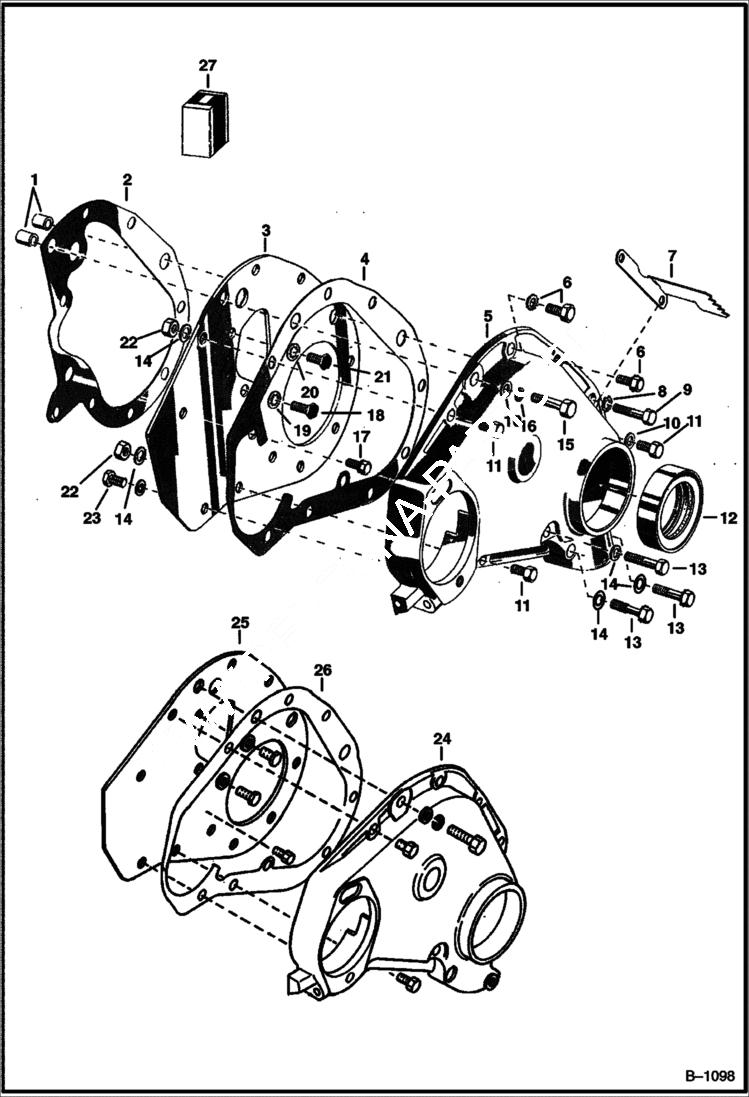

Запчасти Bobcat 900s GEAR COVER (Continental) POWER UNIT

1

DOWEL RING NLA - Was 864290B - A

2

906295

GASKET

3

PLATE NLA - Order Ref. 25-27

4

6518800

GASKET

5

6518818

COVER gear

6

17C618

BOLT

6

WASHER NLA - Was 5E000006B - A

7

6518776

POINTER timing

8

WASHER NLA - Was 5E000007B - A

9

17C724

BOLT

10

851374

WASHER copper

11

17C618

BOLT

12

868287

OIL SEAL crankshaft

13

17C632

BOLT 5

14

WASHER NLA - Was 5E000006B - A

15

17C624

BOLT 5

16

4E6

WASHER

17

17C616

BOLT 5

18

17C716

BOLT

19

6E7

WASHER

20

6E6

WASHER

21

BOLT NLA - Was 942585 - A

22

7D6

NUT

23

17C614

BOLT

24

COVER NLA - Was 857546B - A

25

6512236

PLATE

26

6512248

GASKET

27

KIT gasket - Ref. 2, 4 & 12 - Was 6664965 - A
