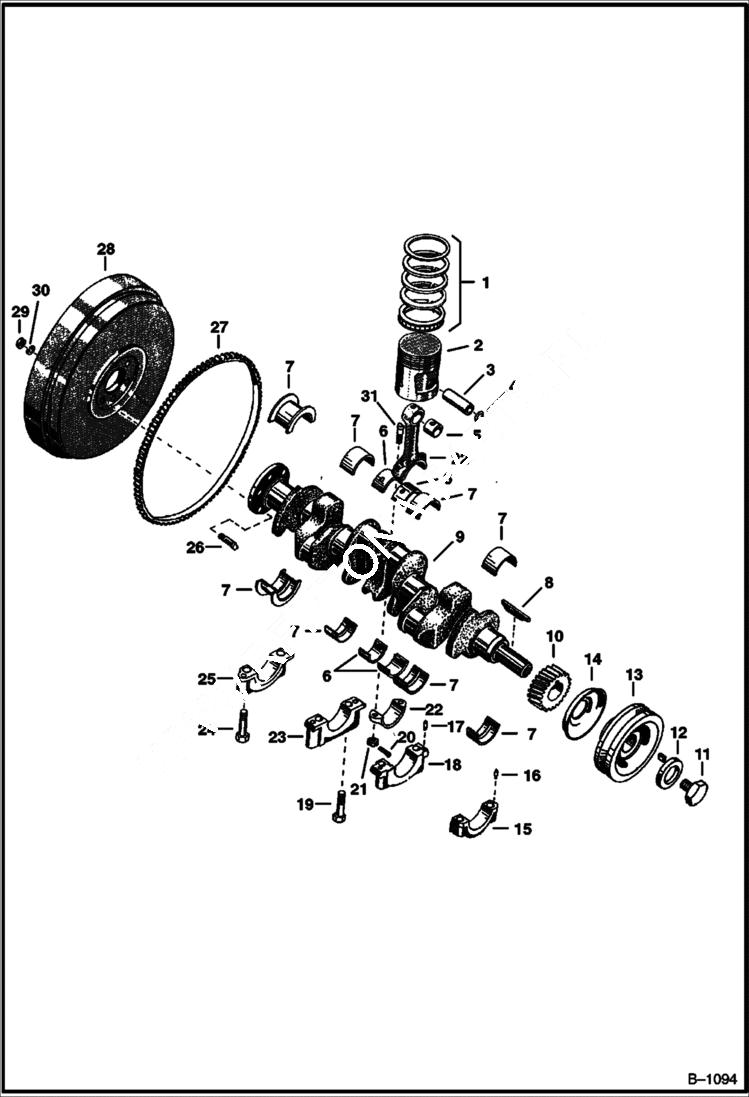

Запчасти Bobcat 900s CRANKSHAFT & ASSOCIATED PARTS (Continental) POWER UNIT

1

991432

1 P&R SET Std.

1

RING KIT NLA - .020 - Was 991454B - A

1

991510

1 P&R SET .030

1

RING KIT NLA - .040 - Was 991455B - A

1

RING KIT NLA - .060 - Was 991511B - A

2

991431

1 P&R SET Std.

2

PISTON NLA - .020 - Was 991452B - A

2

991517

PISTON .030

2

991453B

PISTON NLA - .040 - Was 991453B - A

3

952868

PIN STD piston - Std.

3

PIN NLA - piston - .003 - Was 851068B - A

3

PIN NLA - piston - .005 - Was 952871B - A

4

1310052

RETAINR

5

BUSHING NLA - piston pin - Was 852037B - A

6

990993

KIT rod bearing-Std. - Complete set

6

990994

6 PR BRGS rod bearing - .002

6

990995

6PR RODBG rod bearing - .010

6

KIT NLA - rod bearing - .020 - Was 990996B - A

6

KIT NLA - rod bearing - .030 - Was 990997B - A

6

KIT NLA - rod bearing - .040 - Was 990998B - A

7

KIT NLA - main bearing - Std. - Was 898536B - A

7

898493

KIT main bearing - .020

7

898494

BRG SET main bearing - .010

7

KIT NLA - main bearing - .020 - Was 898495B - A

7

6518813

KIT main bearing - .030

7

6518814

KIT main bearing - .040

8

KEY NLA - Was 898111B - A

9

CRANKSHAF NLA - Was 991112 - A

10

GEAR NLA - timing - Was 861306B - A

11

SCREW NLA - Was 890550B - A

12

6518802

WASHER

13

6518778

PULLEY

14

THROWER NLA - oil - Was 850809B - A

15

CAP NSS

16

DOWEL NLA - Was 857605B - A

17

DOWEL NLA - Was 857837B - A

17

DOWEL RING NSS - Was 6518779 - A

18

CAP NSS

19

BOLT NLA - Was 898109B - A

20

1F316

PIN

21

995694

NUT

22

891693

ROD connecting-W/Cap Less Bearing

23

CAP NSS

24

BOLT NLA - Was 898108B - A

25

CAP NSS

26

BOLT NLA - Was 862775B - A

27

891692

GEAR

28

6518777

FLYWHEEL W/Ref. 27

29

NUT NLA - Was 862776B - A

30

6E6

WASHER

31

7031617

BOLT Was 851009 - A
