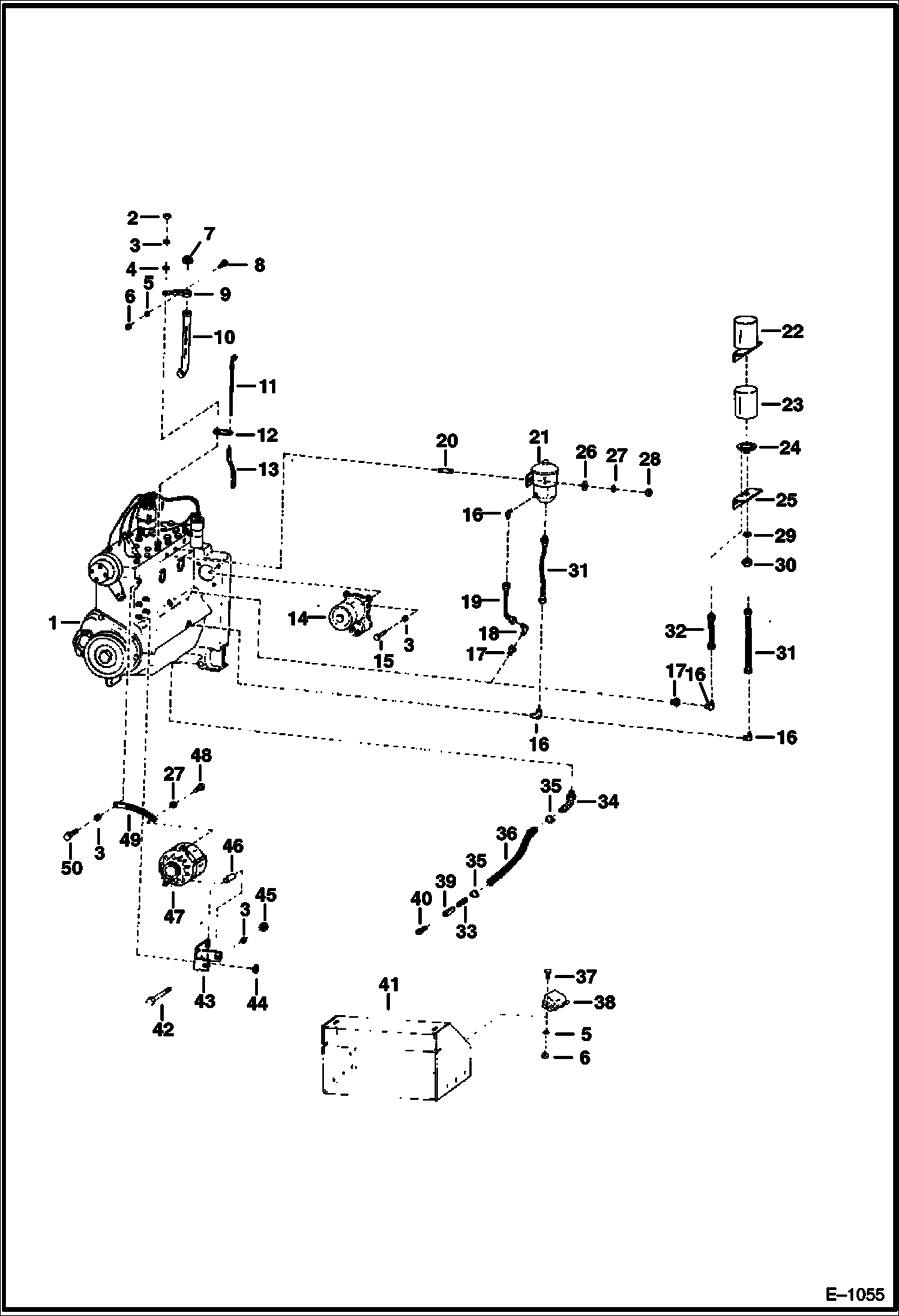

Запчасти Bobcat 900s ENGINE LUBRICATION & ELECTRICAL ATTACHING PARTS (Gasoline) POWER UNIT

1

ENGINE NLA - Continental - W/Starter

2

62D6

NUT 5

3

4E6

WASHER

4

25E17

WASHER 5 Was 103293 - A

5

4E4

WASHER

6

61D4

NUT 5

7

851147

CAP oil filler

8

17C408

BOLT

9

6518783

BRACKET

10

1678337

TUBE oil filler - Was 6518810 - A

11

DIPSTK NLA - oil - Was 990381 - A

12

BRACKET NLA

13

990382

ADAPTR oil dipstick - Was 6518785 - A

14

STARTER See Illustration STARTER/ B1104 NLA - Was 316595B - A

15

17C620

BOLT

16

42F3

FTG

17

19F1

BUSHING

18

26F1

PIPE FITG

19

742092

HOSE

20

STUD NLA - Was 887909B - A

21

6519068

OIL FILTER engine oil - Was 6518786 - A

21

854571

FILTER filter - Pack of 24

21

CARTRIDGE NLA - filter - Was 6560203 - A

22

OIL FILTER NLA - W/Ref. 23-25, 29 & 30 - Was 6519068 - A

23

6599587

FILTER filter - Spin Off Type - Was 990936B - A

24

ADAPTER NSS - filter base

25

BRACKET NSS

26

25E15

WASHER Was 619019 - A

27

4E5

WASHER

28

61D5

NUT

29

6E12

WASHER

30

NUT NSS

31

799262

HYD HOSE

32

6519069

HOSE

33

5K409

NIPPLE

34

666844

ELBOW

35

42H12

CLAMP 10 Was 6515132 - A

36

6591082

HOSE Crankcase Drain - Was 6503841 - A

37

17C416

BOLT

38

908239

VOLT REG voltage - Use old mounting bracket - Was 1810770B - A

39

COUPLER NLA - Was 37K000308B - A

40

16F8

PLUG

41

6501743

CASE battery

42

17C664

BOLT

43

6518787

BRACKET

44

81D6

NUT

45

61D6

NUT 5

46

6504385

SPACER

47

ALTERNATOR See Illustration ALTERNATOR/ B18332

48

17C516

BOLT

49

2309891

BRACKET

50

17C616

BOLT 5
