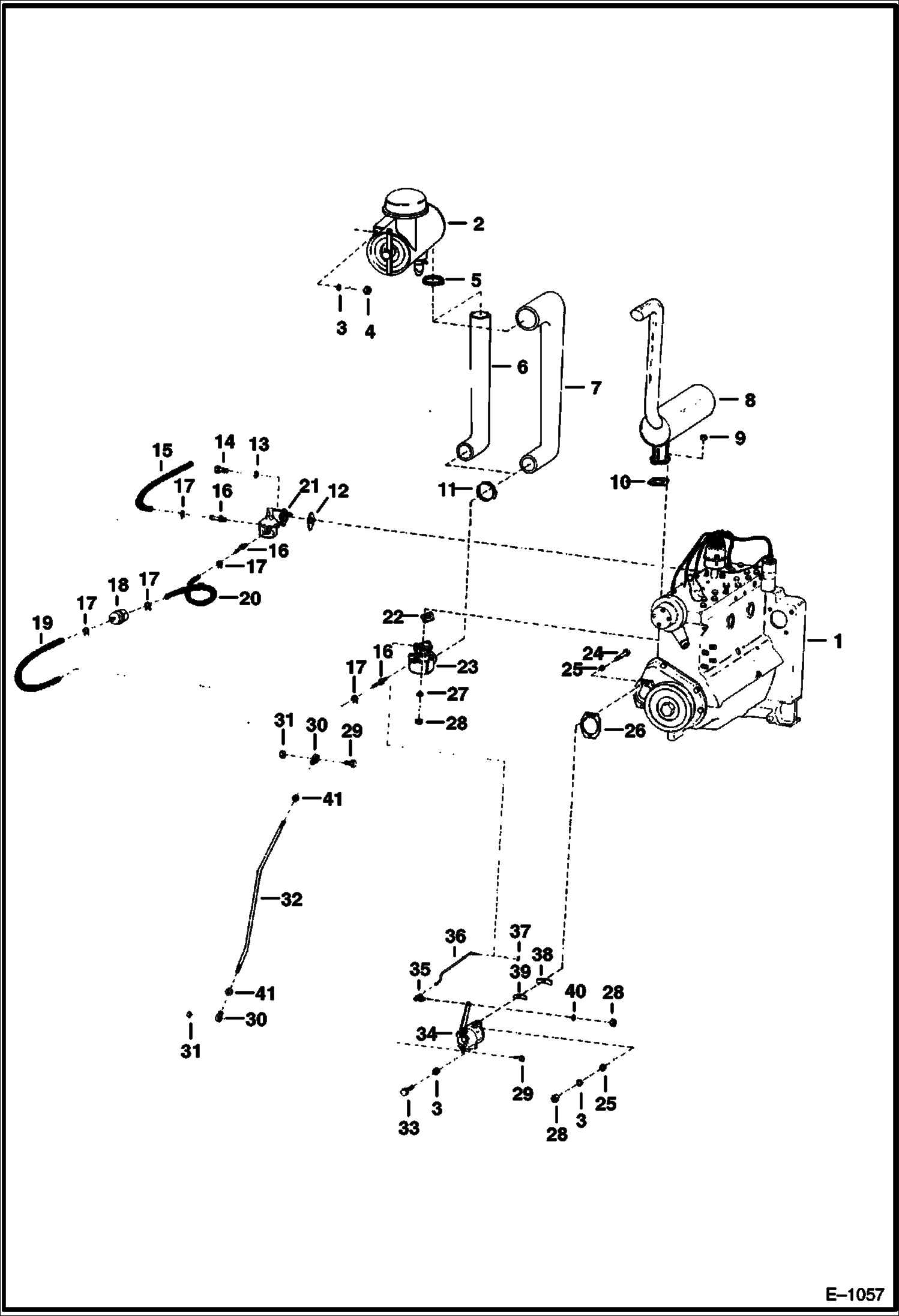

Запчасти Bobcat 900s ENGINE FUEL & EXHAUST ATTACHING PARTS (Gasoline) POWER UNIT

1

ENGINE NLA - Continental - W/Starter - Was 6518806 - A

2

AIR CLEANER See Illustration AIR CLEANER/ B1219

3

4E6

WASHER

4

61D4

NUT 5

5

42H64

CLAMP

6

HOSE NLA - Was 6505550 - A

7

HOSE NLA - Was 6505549 - A

8

MUFFLER NLA - exhaust - Was 6508495 - A

9

NUT NLA - Was 15D6 - A

10

GASKET NLA - Was 6504016 - A

11

42H40

HOSECLAM5

12

GASKET Was 899584 - A

13

853338

WASHER

14

17C512

BOLT 5

15

6590821

HOSE

16

6505813

CONNECTOR barbed

17

42HS04

CLAMP, HOSE Was 6515575 - A

18

6511393

FILTER

19

6504093

HOSE

20

6504094

HOSE

21

FUEL PUMP NLA - Was 6511184 - A

22

GASKET NLA - carburetor - Was 852221B - A

23

CARBURETOR See Illustration CARBURETOR/ B1374 NLA - Was 6518809 - A

24

17C652

BOLT

25

851374

WASHER

26

879990

GASKET

27

6E6

WASHER

28

7D6

NUT

29

17C412

BOLT 5

30

6512954

ROD END throttle rod - R.H. threads

31

61D4

NUT 5

32

6503746

ROD

33

17C618

BOLT

34

GOVERNOR See Illustration GOVERNOR/ B1375 NLA - Was 6518811 - A

35

1306167

BALL JNT

36

6518790

ROD

37

1300311

CLIP

38

GASKET NLA - Was 884932B - A

39

PLATE NLA - Was 876856B - A

40

4E4

WASHER

41

8D6

NUT 5
