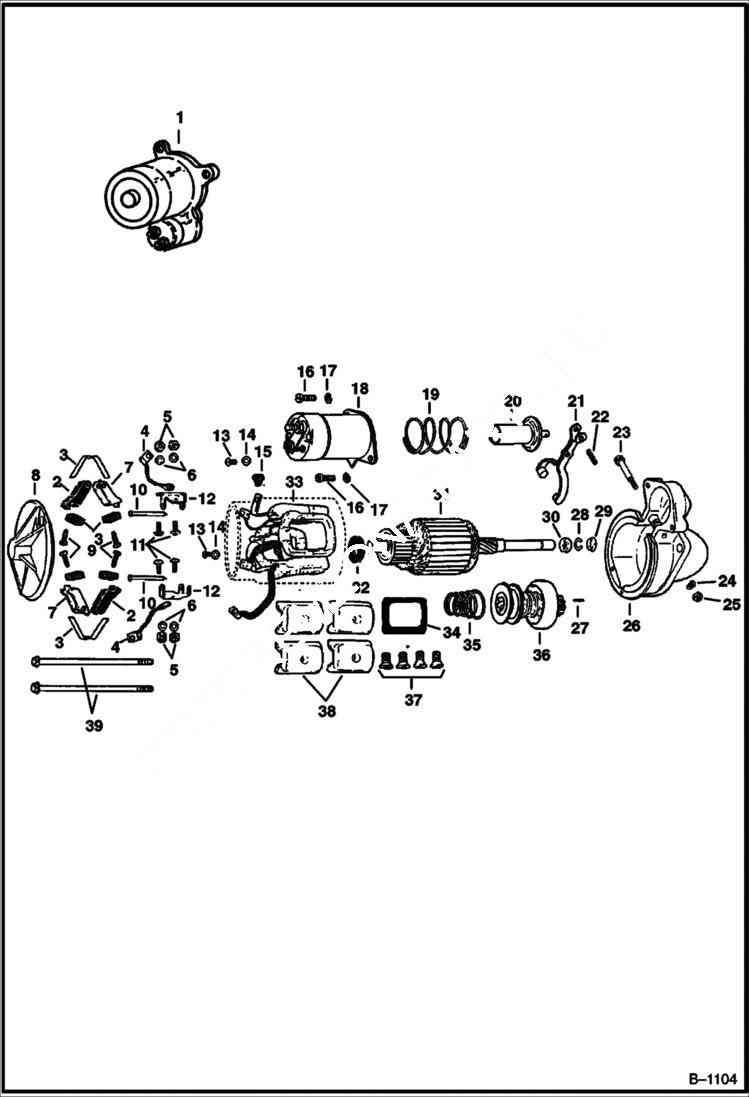

Запчасти Bobcat 900s STARTER (Gasoline) ELECTRICAL SYSTEM

1

STARTER NLA - Delco 1107245 - A

2

HOLDER brush - Insulator NLA - brush - insulator - Was 891252B - A

3

BRUSHES NLA - brush & spring - Was 1810250B - A

4

LEAD NLA - Was 871520B - A

5

NUT NLA

6

WASHER NLA

7

HOLDER NLA - brush - Ground

8

FRAME NLA - W/Bushing - Was 999460B - A

9

SCREW NLA

9

SCREW NLA

10

PIN NLA - brush holder

11

SCREW NLA

12

SUPPORT PKG. NLA

13

SCREW NLA

14

WASHER NLA

15

GROMMET NLA - Was 884571B - A

16

SCREW NLA

17

WASHER NLA

18

884581

SWITCH solenoid

19

SPRING NLA - plunger

20

PLUNGER NLA

21

896126

LEVER shift

22

ROLL PIN NLA

23

SCREW NLA

24

WASHER NLA

25

NUT NLA

26

HOUSING NLA - drive - W/bushing - Was 887713B

26

BUSHING NLA - Was 850337B - A

27

DOWEL PIN NLA

28

942142

SNAP RING retainer

29

850363

COLLAR thrust

30

STOP NLA - Was 878608B - A

31

884569

ARMATURE

32

WASHER NLA - Leather - Was 860673B - A

33

COILS NLA - Was 884570B - A

34

INSULATOR NLA

35

SPRING NLA - assist

36

6598231

DRIVE starter - Was 887714B - A

37

SCREW NLA - pole shoe

38

POLE SHOE NLA

39

SCREW NLA - thru frame
