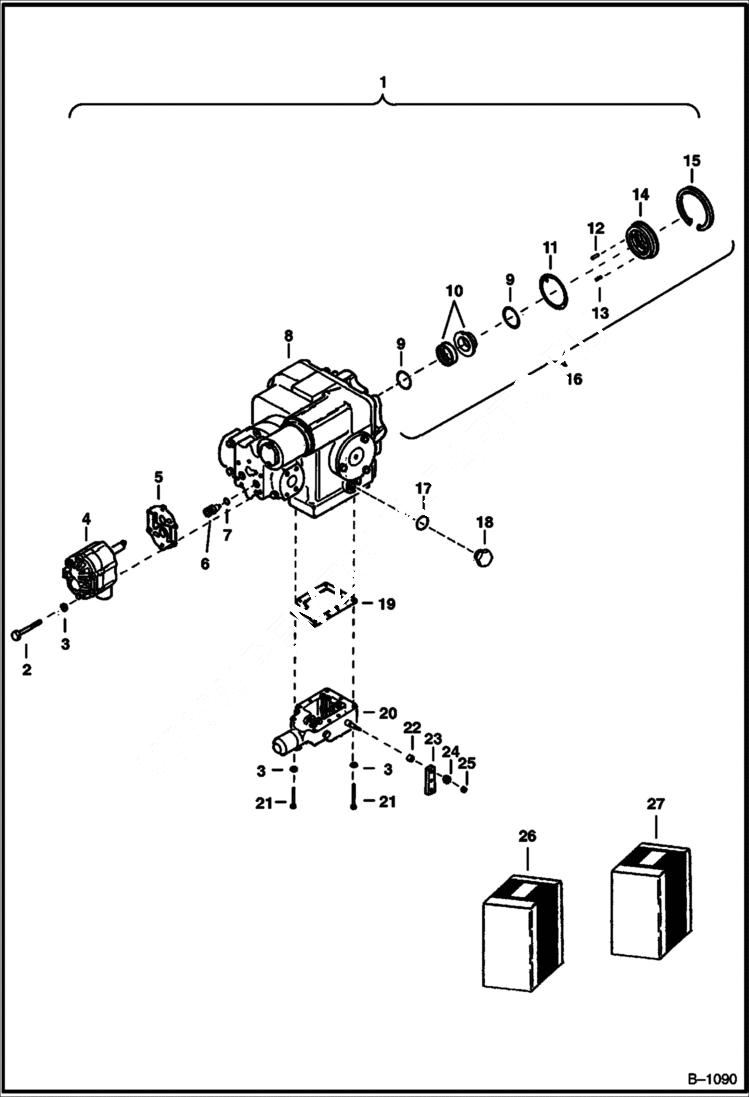

Запчасти Bobcat 900s HYDROSTATIC PUMP & ATTACHING PARTS HYDROSTATIC SYSTEM

1

6599497REM

PUMP, HYD, W/O GEAR PUMP remanufactured - Was 6599497 - A

1

6515477

PUMP New - Ref. 2 - 25

2

17C448

BOLT

3

6518479

WASHER

4

PUMP See Illustration HYDROSTATIC CHARGE PUMP/ B11977 See Illustration HYDROSTATIC CHARGE PUMP/ B1093 charge

5

6518481

GASKET

6

6518531

VALVE check - W/Ref. 7

7

O-RING NSS

8

PUMP See Illustration HYDROSTATIC PUMP/ B18329 See Illustration HYDROSTATIC PUMP/ D1355 NLA

9

O-RING NSS

10

SEAL NSS

11

O-RING NSS

12

PIN NSS

13

SPRING NSS - seal

14

RETAINER NSS - seal

15

SNAP RING NSS

16

6518534

SEAL KIT Ref. 9 - 15

17

79K10

O RING 10

18

24K7

PLUG W/Ref. 16

19

963957

GASKET control valve

20

6518535

VALVE See Illustration DISPLACEMENT CONTROL VALVE/ B1101 W/Ref. 3, 19 - 25

21

17C436

BOLT

22

6518477

SPACER

23

6518478

HANDLE control

24

8E4

WASHER

25

7D4

NUT

26

6518663

SEAL KIT Ref. 9 - 11 & 13

27

6598796

GASKET KIT See Illustration HYDROSTATIC PUMP/ D1355 Ref. 7, 16, 22, 31, 33, 51 & 52 - Also Includes Ref. 5, 7, 9, 11, 17, 19 on this Illustration
