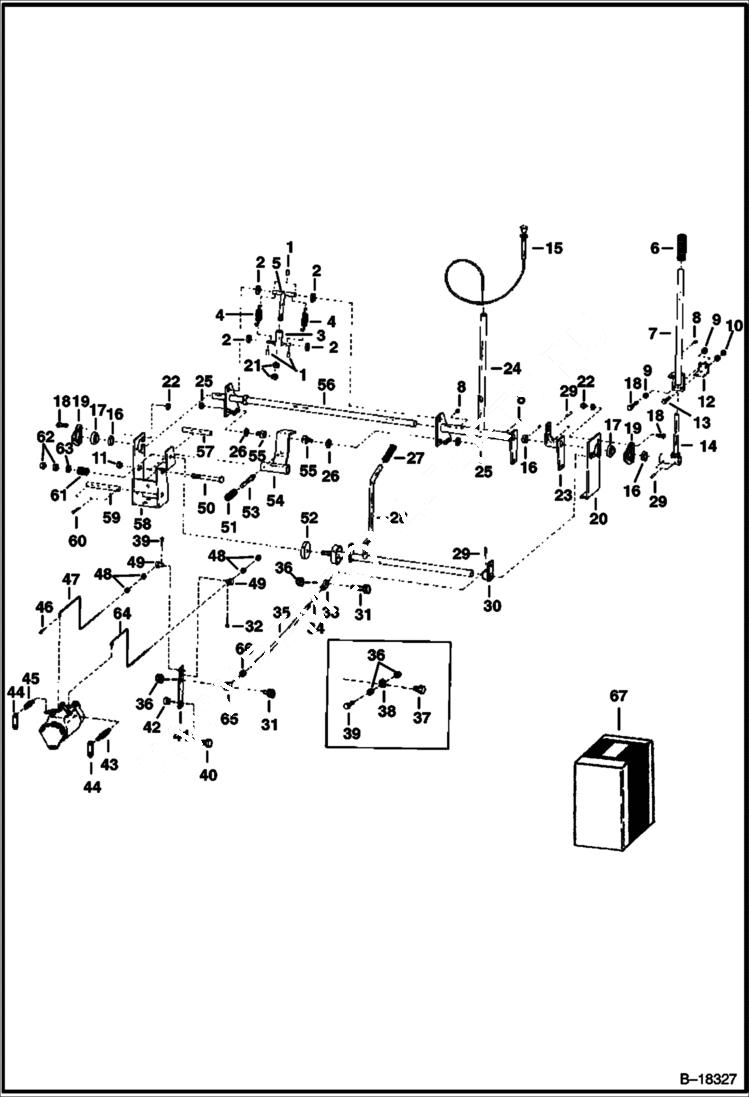

Запчасти Bobcat 900s HAND CONTROLS (Diesel) HYDROSTATIC SYSTEM

1

1F316

PIN

2

25E18

WASHER

3

6501756

SLIDE

4

6505076

SPRING

5

6501755

ROD

6

6513963

GRIP

7

LEVER NLA - RH - Was 6501697 - A

8

10H35

FITTING, GREASE 10

9

7D5

NUT

10

61D4

NUT 5

11

81D8

NUT

12

6503987

ANGLE

13

17C412

BOLT 5

14

6591528

LEVER Was 6501698 - A

15

CABLE NLA - fuel shut off - Was 6505136 - A

16

6515095

COLLAR lock

17

6515103

BALL BEARING

18

17C516

BOLT

19

6515096

FLANGE

20

6501749

BRACKET R.H.

21

7D8

NUT 5

22

81D5

NUT

23

6501786

ARM R.H.

24

HANDLE NLA - W/pivot tube - L.H. - Was 6501699 - A

25

6511994

NUT

26

25E18

WASHER

27

6515109

GRIP

28

6590030

LEVER throttle

29

668312

PIN ROLL

30

6505143

ARM

31

17C620

BOLT

32

1F416

PIN

33

6512954

ROD END rod - R.H. threads

34

8D6

NUT 5

35

6507216

ROD

36

61D6

NUT 5

37

18C816

BOLT

38

6507211

STOP

39

97G640

SET SCREW Was 6514574 - A

40

18C824

BOLT

41

6507212

LEVER

42

6507213

SPACER

43

3725672

SPRING

44

3725667

BRKT

45

3725668

SPRING

46

1F216

PIN

47

6507215

ROD

48

14D10

NUT

49

6507210

CONNECTOR

50

17C888

BOLT

51

6505082

SPRING

52

6503388

BLOCK throttle

53

6501779

GUIDE

54

6501753

ARM

55

6515595

FOLLOWER

56

6501696

SHAFT

57

6504007

SPACER

58

6501700

BRACKET L.H.

59

6503744

PIN

60

1F524

PIN

61

6503387

SPRING

62

7D6

NUT

63

6505623

WASHER

64

6507214

ROD

65

END NLA - rod - Was 730821 - A

65

6512954

ROD END rod - R.H. threads

66

8D4

NUT

66

8D6

NUT 5

67

KIT NLA - throttle - Order Ref. 31-49 - Was 6541345 - A
