Запчасти Bobcat 900s FOOT PEDAL & CLUTCH LINKAGE (Self-Leveling Valve) HYDRAULIC SYSTEM

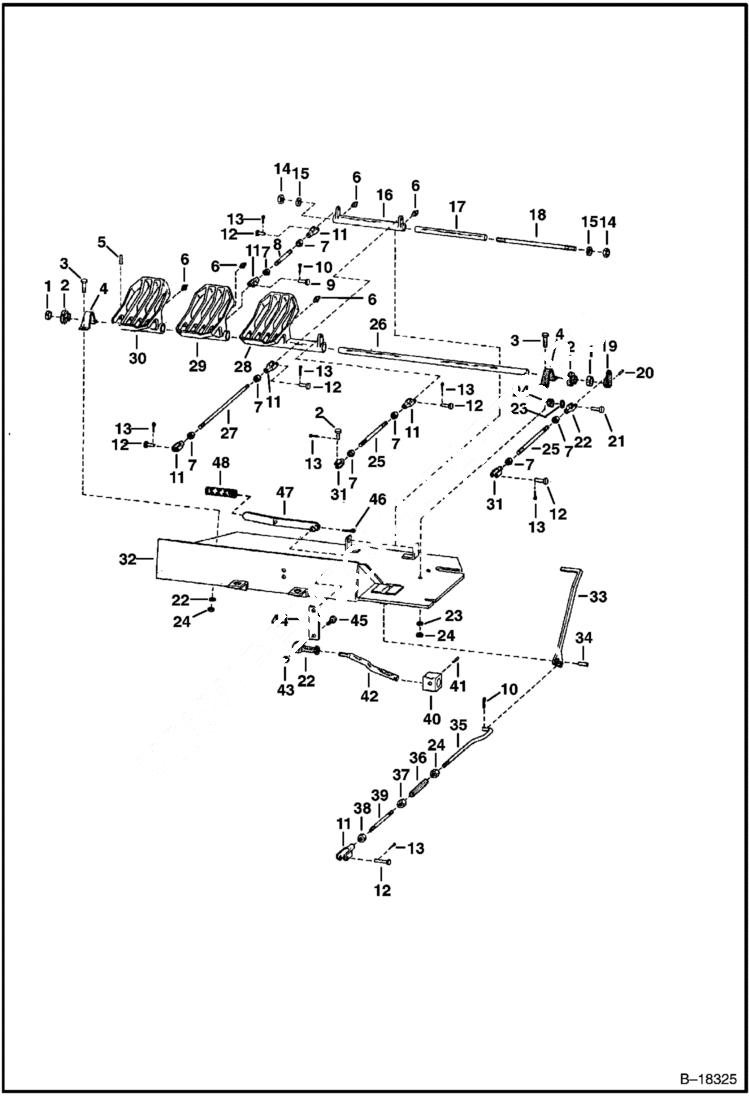

Схема запчастей Bobcat 900s - FOOT PEDAL & CLUTCH LINKAGE (Self-Leveling Valve) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6515095

COLLAR locking

2

6515103

BALL BEARING

3

17C612

BOLT 5

4

BEARING ASSY. NLA - W/Ref. 1 & 2 - Was 6515548 - A

4

6631670

HOUSING

5

672985

PIN

6

12H25

FITTING

7

8D6

NUT 5

8

6503747

ROD

9

6529777

PIN Was 224391 - A

10

1F316

PIN

11

6508041

YOKE

12

663350

PIN

13

1F416

PIN

14

81D8

NUT Was 61D000008B - A

15

4E8

WASHER

16

ARM NLA - W/Ref. 17 - Was 6591033 - A

17

BUSHING NLA

18

6503692

ROD

19

6503999

ARM

20

672985

PIN

21

17C624

BOLT 5

22

6512954

ROD END linkage rod - R.H. threads

23

4E6

WASHER

24

61D6

NUT 5

25

6503749

ROD

26

6503995

SHAFT

27

ROD NLA - Was 755206 - A

28

6503998

PEDAL tilt

29

6503997

PEDAL auxiliary

30

6503996

PEDAL lift

31

6560526

CLEVIS

32

6590529

PLATE foot

33

6505118

LEVER clutch - Diesel Only

34

656978

PIN Diesel Only

35

6505190

ROD clutch - Diesel Only

36

6516336

TURNBUCKLE Diesel Only

37

6504996

NUT Diesel Only

38

62D6

NUT 5 Diesel Only

39

6505201

ROD Diesel Only

40

6591077

BLOCK

41

1304227

PIN

42

6504145

ROD

43

81D6

NUT

44

6504147

ARM

45

17C616

BOLT 5

46

1F616

PIN

47

6501827

HANDLE

48

6515109

GRIP

Выбрано товаров: 49
