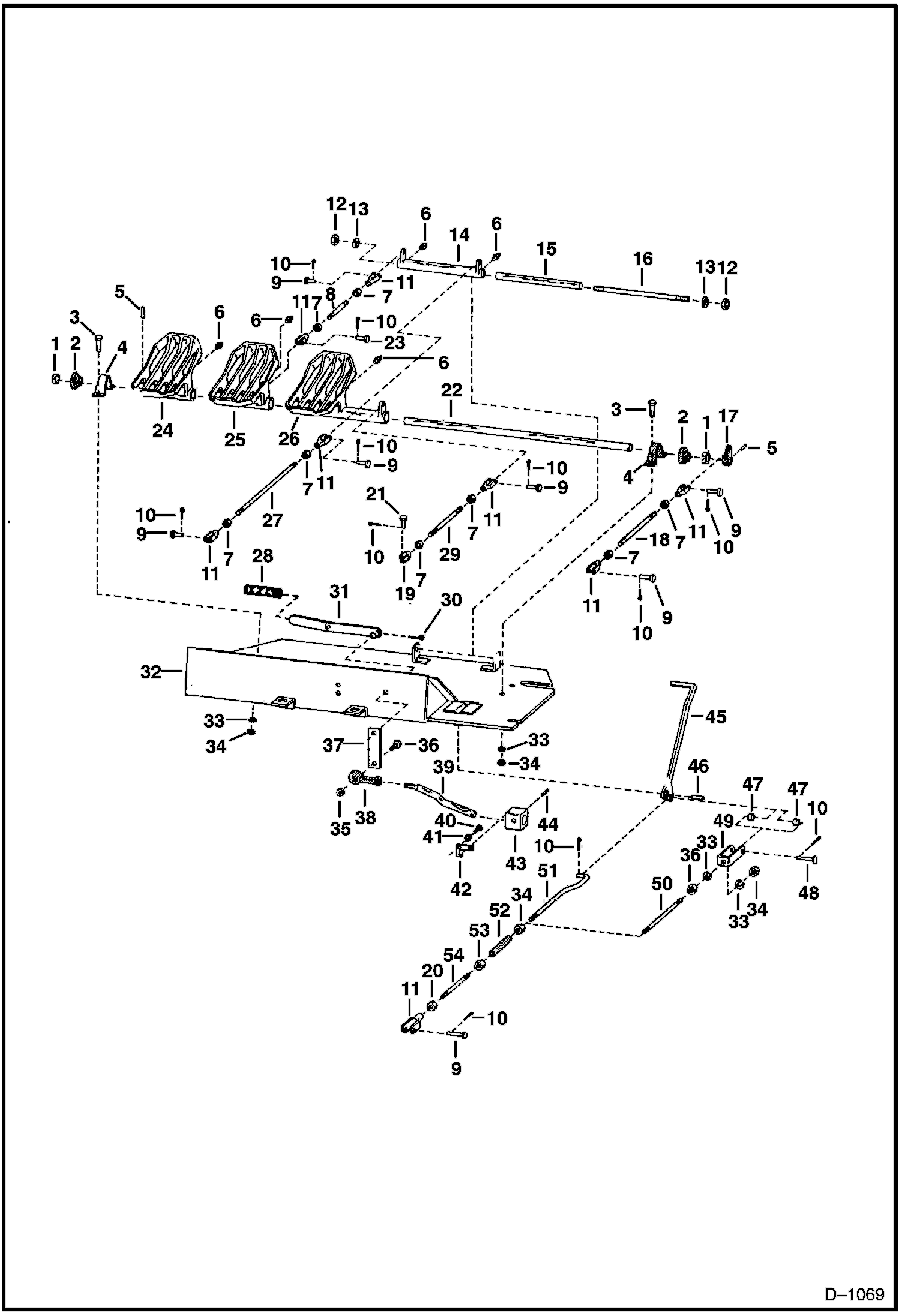

Запчасти Bobcat 900s FOOT PEDAL & CLUTCH LINKAGE HYDRAULIC SYSTEM

1

6515095

COLLAR W/Set Screw

2

6515103

BALL BEARING

3

17C612

BOLT 5

4

BEARING ASSY. NLA - W/Ref. 1 & 2 - Was 6515548 - A

4

6631670

HOUSING

5

672985

PIN

6

10H35

FITTING, GREASE 10

7

8D6

NUT 5

8

6503747

ROD

9

663350

PIN

10

1F416

PIN

11

6508041

YOKE

12

61D8

NUT 5

13

4E8

WASHER

14

ARM NLA - W/Ref. 15 - Was 6591033

15

BUSHING NLA

16

6503692

ROD

17

6503999

ARM

18

6503748

ROD

19

6560526

CLEVIS

20

62D6

NUT 5

21

PIN NLA - Was 6505102 - A

22

6503995

SHAFT

23

4F6106

PIN Was 221461B - A

24

6503996

PEDAL lift

25

6593640

PEDAL auxiliary

26

6503998

PEDAL tilt

27

ROD NLA - Was 755206 - A

28

6515109

GRIP

29

6503749

ROD tilt

30

1F616

PIN

31

6501827

HANDLE valve detent

32

6590529

PLATE floor

33

4E6

WASHER

34

61D6

NUT 5

35

81D6

NUT

36

17C616

BOLT 5

37

6504147

ARM valve detent

38

6512954

ROD END rod - R.H. threads

39

6504145

ROD

40

17C408

BOLT

41

4E4

WASHER

42

CLIP NLA - Was 6504138 - A

43

BLOCK NLA - Was 6504135 - A

44

6504140

ROLL PIN

45

6505118

LEVER clutch - Diesel Only

46

656978

PIN Diesel Only

47

SPACER NLA - diesel only - Was 6505173 - A

48

1314368

PIN Diesel Only

49

CLEVIS NLA - Order Ref. 51

50

ROD NLA - Order Ref. 51

51

6505190

ROD Diesel Only

52

6516336

TURNBUCKLE Diesel Only

53

6504996

NUT Diesel Only

54

6505201

ROD Diesel Only
