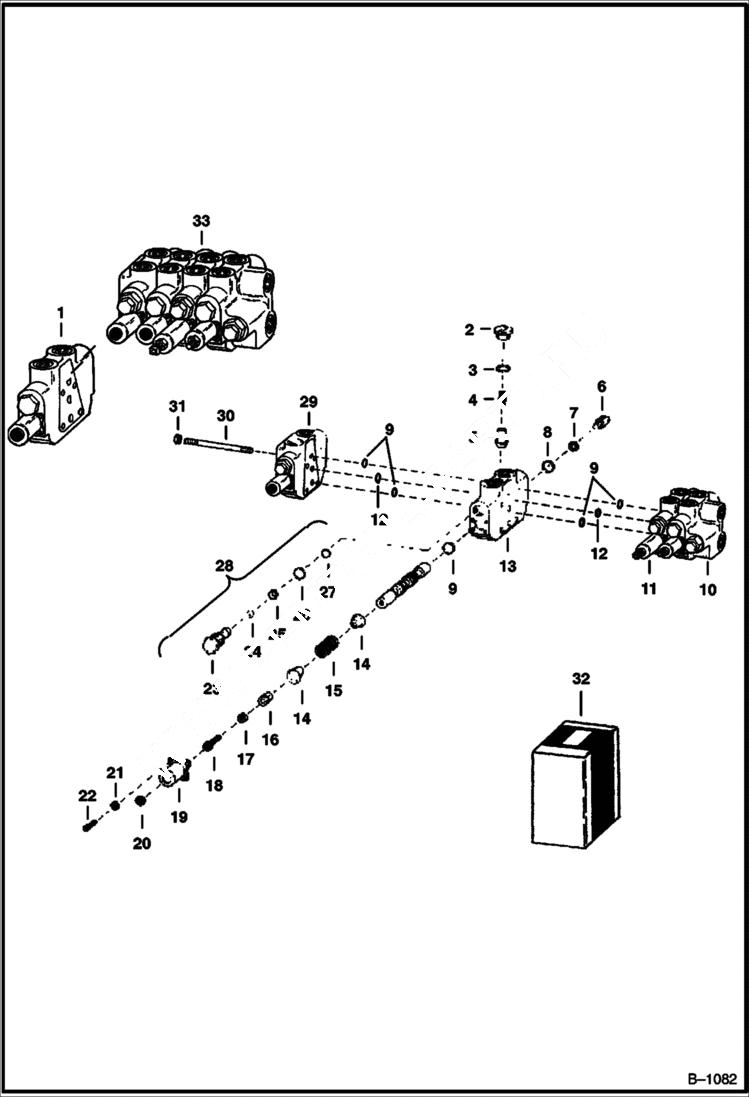

Запчасти Bobcat 900s TILT CONTROL VALVE HYDRAULIC SYSTEM

1

6518319

VALVE Ref. 2-8 & 13-26

2

6510782

PLUG check - W/Ref. 3-5

3

79K14

O RING 10

4

6515082

SPRING

5

POPPET NLA - Was 6518336 - A

6

898372

ADAPTOR

7

6518364

WASHER

8

25K40028

O RING 10

9

SEAL NSS

10

VALVE See Illustration LIFT ARMS CONTROL VALVE/ B1080 Was 6518314 - A

11

VALVE See Illustration VOLUME CONTROL VALVE/ B1081

12

SEAL NSS

13

HOUSING NLA

14

6518327

COLLAR

15

SPRING NSS

16

6518329

COLLAR

17

4E6

WASHER

18

73G612

CAPSCREW cap

19

6518343

BONNET

20

6518344

DIAPHRAGM

21

4E4

WASHER

22

6518334

SCREW

23

BODY NSS

24

BALL NSS

25

RETAINER NSS

26

58K23

O RING 10

27

58K022

O-RING 10

28

6518317

VALVE anti-cavitation check - Ref. 9 & 23-26

29

6518320

VALVE See Illustration AUXILIARY CONTROL VALVE/ B1083

30

6518366

SCREW stud

31

81D6

NUT Was 6515307 - A

32

KIT NLA - between sections - Ref. 9 & 12 - One Kit Per Valve Bank - Was 6508152 - A

33

6515539

VALVE BANK
