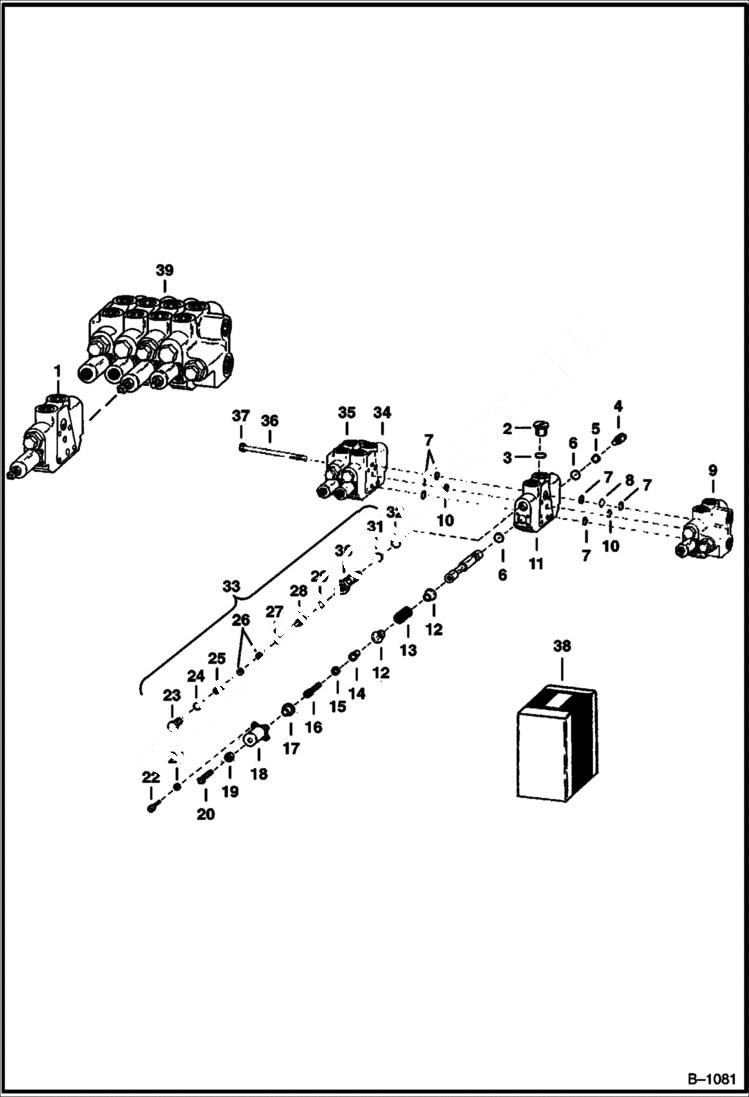

Запчасти Bobcat 900s VOLUME CONTROL VALVE HYDRAULIC SYSTEM

1

VALVE NLA - Ref. 2-6 & 11-31 - Order 6515539 Valve Assy

2

6510782

PLUG check - W/Ref. 3-5

3

79K14

O RING 10

4

898372

ADAPTOR clevis - Was 6518323 - A

5

79K6

O RING 10

6

6518324

SEAL

7

SEAL NSS

8

PLUG NLA - Was 6518326 - A

9

VALVE See Illustration LIFT ARMS CONTROL VALVE/ B1080 lift arm control - Was 6518314 - A

10

SEAL NSS

11

HOUSING NLA

12

6518327

COLLAR

13

SPRING NSS

14

6518329

COLLAR

15

4E6

WASHER

16

73G612

CAPSCREW cap

17

6518330

LIMIT travel

18

6518331

BONNET

19

6518332

NUT

20

6518333

SCREW adjustment

21

4E4

WASHER

22

6518334

SCREW

23

CAP NSS

24

79K8

O RING 10

25

SPRING NSS

25

SPACER NSS - .040

26

SPACER NSS - .020

27

SHIM NSS - .010

28

POPPET NSS

29

RING NSS - piston

30

BODY NSS - relief

31

58K23

O RING 10

32

58K022

O-RING 10

33

6655436

VALVE relief - Ref. 7, 23-32 - Was 6518315 - A

34

6518319

VALVE See Illustration TILT CONTROL VALVE/ B1082 tilt

35

6518320

VALVE See Illustration AUXILIARY CONTROL VALVE/ B1083 auxiliary

36

6518366

SCREW stud

37

81D6

NUT Was 6515307 - A

38

KIT NLA - between sections - Ref. 7 & 10 - One Kit Per Valve Bank - Was 6508152 - A

39

6515539

VALVE BANK
