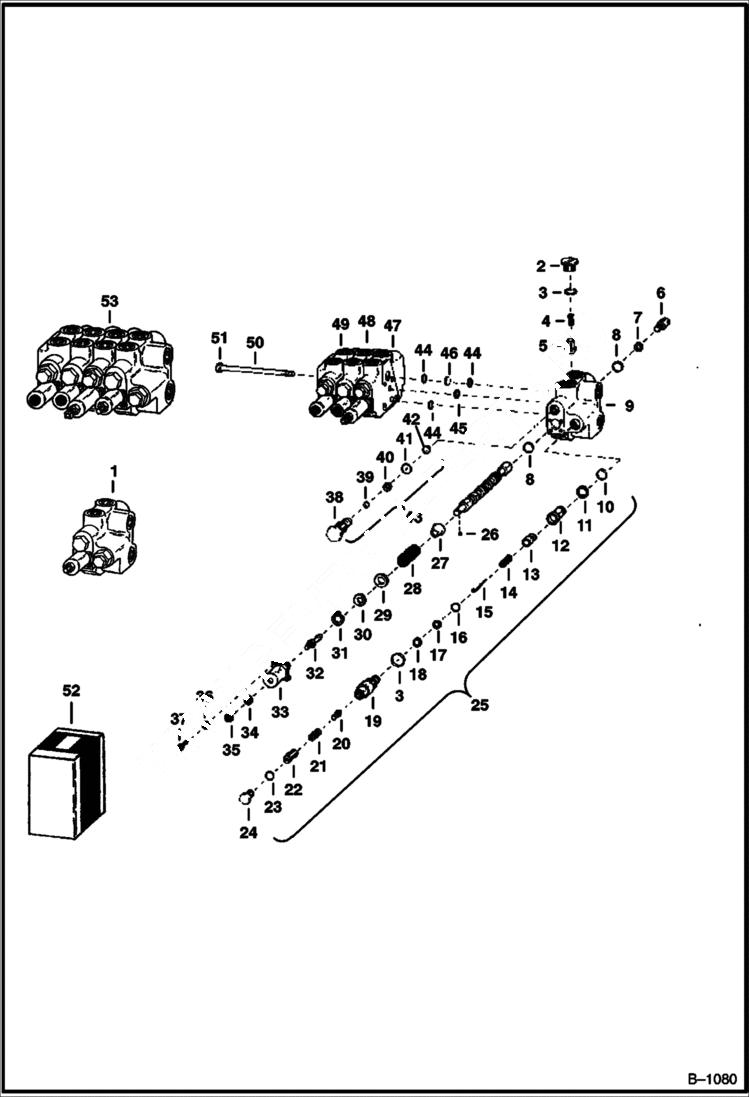

Запчасти Bobcat 900s LIFT ARMS CONTROL VALVE HYDRAULIC SYSTEM

1

VALVE NLA - Ref. 2-24, 26-42 - Was 6518314 - A

2

6510782

PLUG check - W/Ref. 3-5

3

79K14

O RING 10

4

6515082

SPRING

5

POPPET NLA - Was 6518336 - A

6

6518337

ADAPTER

7

6518364

WASHER

8

25K40028

O RING 10 wiper

9

HOUSING NLA

10

O-RING NSS

11

WASHER NSS

12

BODY NSS

13

PISTON NSS

14

SPRING NSS

15

PIN NSS

16

O-RING NSS

17

WASHER NSS

18

RETAINER NSS

19

BODY NSS

20

POPPET NSS

21

SPRING NSS

22

SCREW NSS - adjusting

23

GASKET NSS

24

CAP NSS - pilot relief

25

6518316

VALVE relief - Ref. 3, 10 - 24

25

6510781

SEAL KIT Ref. 3, 10, 11, 16, 17 & 23

26

BALL NSS - steel

27

6518357

COLLAR

28

6518358

SPRING

29

COLLAR NSS

30

RETAINER NSS

31

RETAINER NSS

32

6518362

ADAPTER

33

6518331

BONNET

34

4E7

WASHER

35

7D7

NUT

36

4E4

WASHER

37

6518334

SCREW

38

BODY NSS

39

BALL NSS - aluminum 5/8'' (15.88 mm) dia.

40

RETAINER NSS - ball

41

58K23

O RING 10

42

58K022

O-RING 10

43

6518317

VALVE anti-cavitation check - Ref. 38-42

44

O-RING NSS

45

SEAL NSS

46

PLUG NLA - Was 6518326 - A

47

VALVE See Illustration VOLUME CONTROL VALVE/ B1081

48

6518319

VALVE See Illustration TILT CONTROL VALVE/ B1082

49

6518320

VALVE See Illustration AUXILIARY CONTROL VALVE/ B1083

50

6518366

SCREW stud

51

81D6

NUT Was 6515307 - A

52

KIT NLA - between sections - Ref. 44 & 45 - One Kit Per Valve Bank - Was 6508152 - A

53

6515539

VALVE BANK
