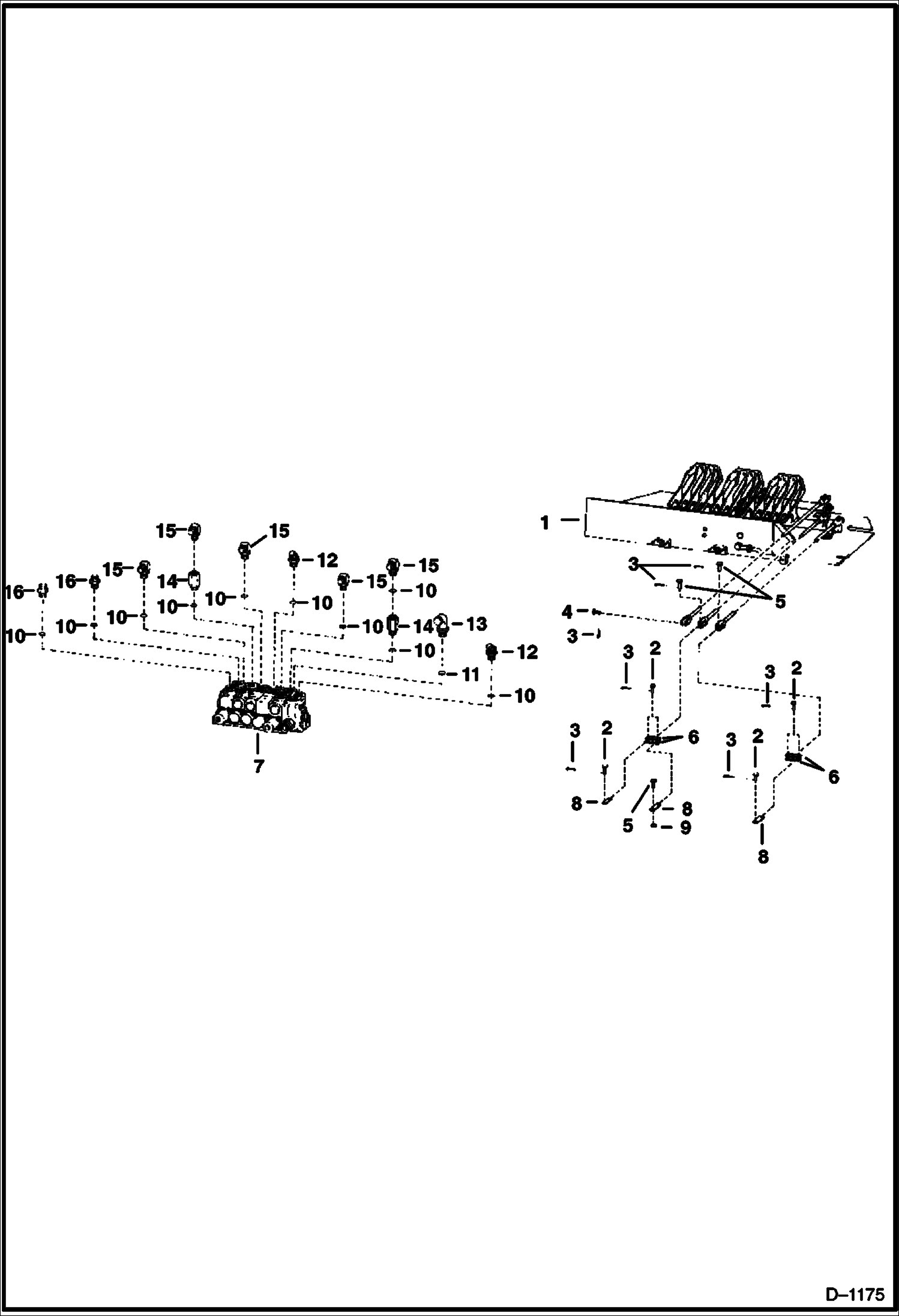

Запчасти Bobcat 900s HYDRAULIC VALVE FITTINGS & LINKAGE (Self-Leveling Valve) HYDRAULIC SYSTEM

1

PEDAL ASSY. See Illustration ENGINE COOLING & MOUNTING PARTS/ B18345 See Illustration FOOT PEDAL & CLUTCH LINKAGE/ D1069

2

PIN NLA - Was 6505102 - A

3

1F416

PIN

4

663350

PIN Was 6514548 - A

5

6505103

PIN

6

6503750

LINK

7

VALVE See Illustration VALVE ASSEMBLY/ C1649

8

6503751

LINK

9

PUSH NUT NLA - Was 6519255 - A

10

79K12

O RING 10

11

79K16

O RING 10

12

18K8

FTG W/Ref. 10

13

1521254

ELBOW W/Ref. 11

14

6515538

VALVE throttle - W/Ref. 10

15

17K8

FITTING W/Ref. 10

16

15K8

FITTING W/Ref. 10
