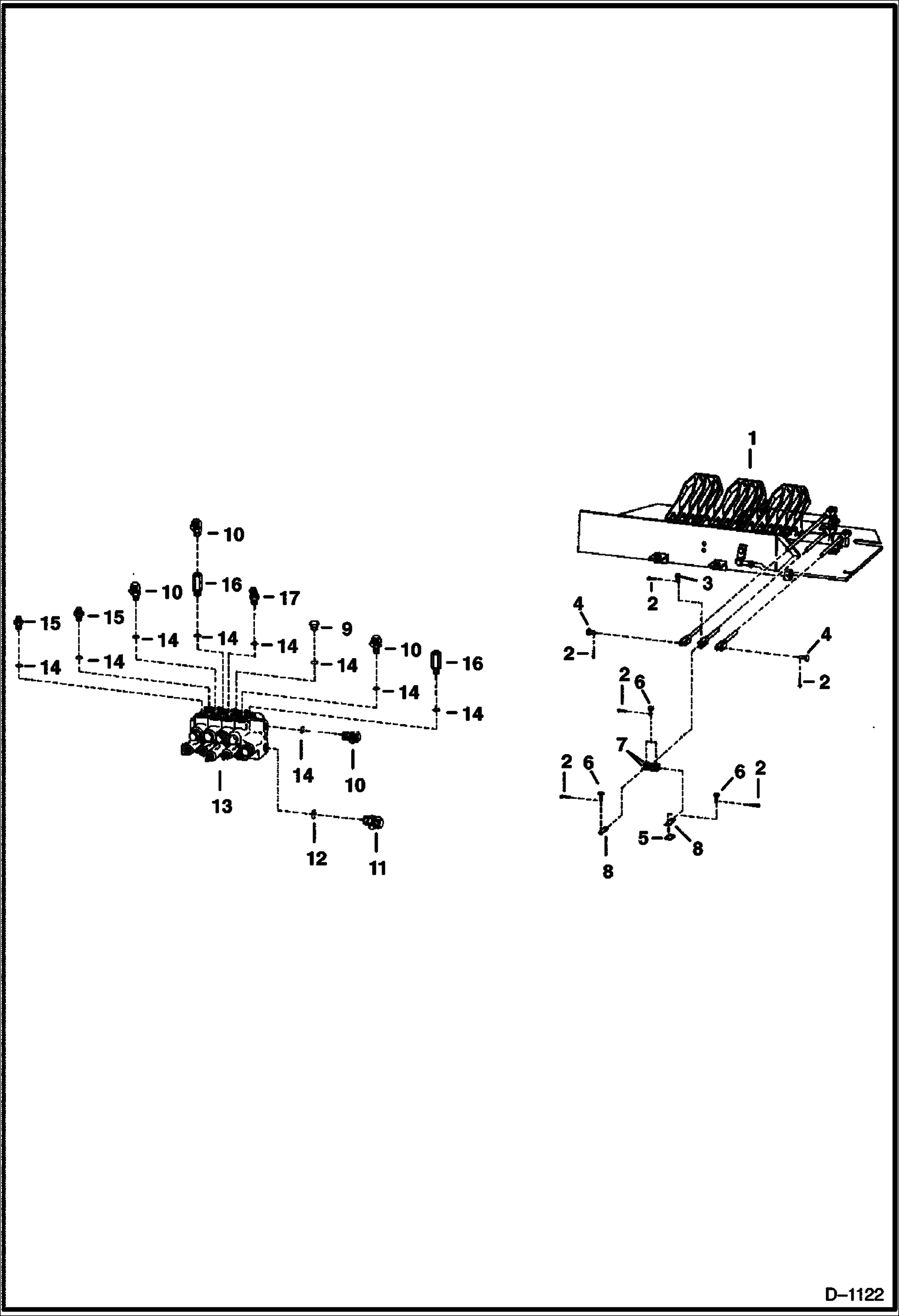

Запчасти Bobcat 900s HYDRAULIC VALVE FITTINGS & LINKAGE HYDRAULIC SYSTEM

1

PEDAL ASSY. See Illustration FOOT PEDAL & CLUTCH LINKAGE/ B18325 See Illustration FOOT PEDAL & CLUTCH LINKAGE/ D1069

2

1F416

PIN

3

PIN NLA - Was 6505102 - A

4

663350

PIN

5

PUSH NUT NLA - Was 6519255 - A

6

6505103

PIN

7

6503750

LINK

8

6503751

LINK

9

24K8

PLUG W/Ref. 14

10

17K8

FITTING W/Ref. 14

11

1521254

ELBOW W/Ref. 12

12

79K16

O RING 10

13

6515539

VALVE BANK See Illustration LIFT ARMS CONTROL VALVE/ B1080 See Illustration AUXILIARY CONTROL VALVE/ B1083 See Illustration TILT CONTROL VALVE/ B1082 See Illustration VOLUME CONTROL VALVE/ B1081

14

79K12

O RING 10

15

15K8

FITTING W/Ref. 14 - Was 6515542 - A

16

6515538

VALVE throttle - W/Ref. 14

17

6515588

ELBOW W/Ref. 14
