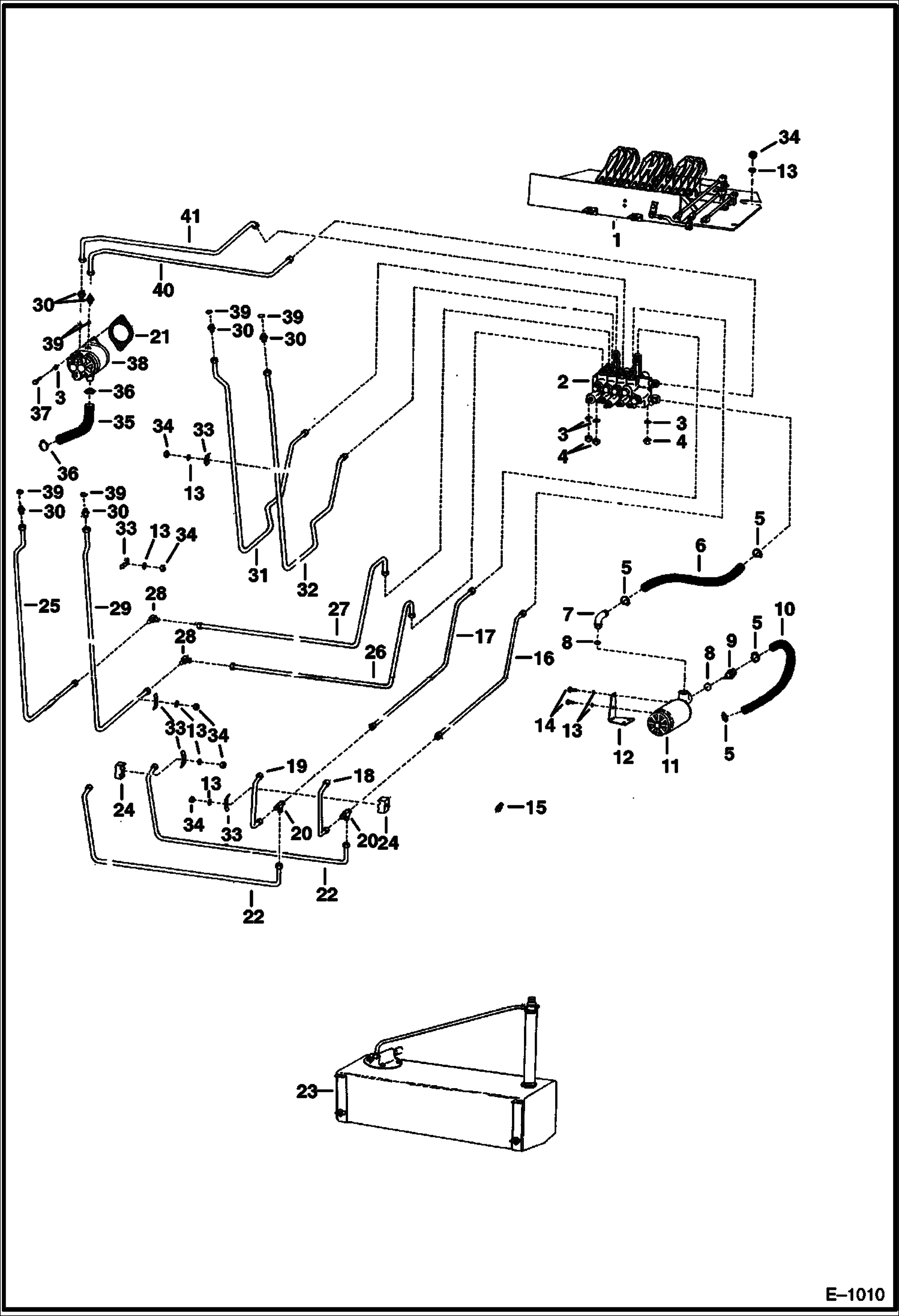

Запчасти Bobcat 900s HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

PEDAL ASSY. See Illustration FOOT PEDAL & CLUTCH LINKAGE/ B18325 See Illustration FOOT PEDAL & CLUTCH LINKAGE/ D1069

2

6515539

VALVE BANK See Illustration LIFT ARMS CONTROL VALVE/ B1080 See Illustration AUXILIARY CONTROL VALVE/ B1083 See Illustration TILT CONTROL VALVE/ B1082 See Illustration VOLUME CONTROL VALVE/ B1081

3

4E8

WASHER

4

61D8

NUT 5

5

44H20

CLAMP Was 6666864 - A

6

HOSE NLA - Was 6590820 - A

7

ELBOW NLA - W/Ref. 8 - Was 564087B - A

8

79K20

O RING 10

9

1304294

CONNECTOR W/Ref. 8

10

6591083

HOSE

11

FILTER See Illustration HYDRAULIC OIL FILTER/ C1319

12

6503836

BRACKET

13

4E6

WASHER

14

17C616

BOLT 5

15

40K12

PLUG

16

6501723

TUBE

17

6501719

TUBE

18

6501721

TUBE

19

6501720

TUBE

20

10K8

TEE

21

6503835

GASKET

22

6501725

TUBE

23

RESERVOIR See Illustration HYDRAULIC OIL RESERVOIR/ D1123

24

BLOCK NLA - Wood - Order 6592506 & Ref. 33 (6592507 Plate)

24

6592506

CLAMP Plastic

25

TUBE NLA - auxiliary - Was 6501716 - A

26

6501715

TUBE

27

TUBE NLA - Was 6501713 - A

28

77F8

ELBOW Was 7F8 - D

29

TUBE NLA - auxiliary - Was 6501714 - A

30

15K8

FITTING W/Ref. 39

31

6501718

TUBE Tilt Line

32

6501717

TUBE Tilt Line

33

6502773

CLAMP

33

6592507

PLATE Use W/Ref. 24 (6592506 Clamp)

34

61D6

NUT 5

35

6503722

HOSE See BTI204

36

42H32

HS CLAMP5

37

17C824

BOLT 5

38

PUMP See Illustration HYDRAULIC PUMP/ D1044 See Illustration HYDRAULIC PUMP/ D1632 See BTI204 NLA

39

79K12

O RING 10

40

TUBE NLA - Gasoline Only - Was 6501727 - A

40

6505139

HOSE

41

6542559

TUBE

41

6505139

HOSE
