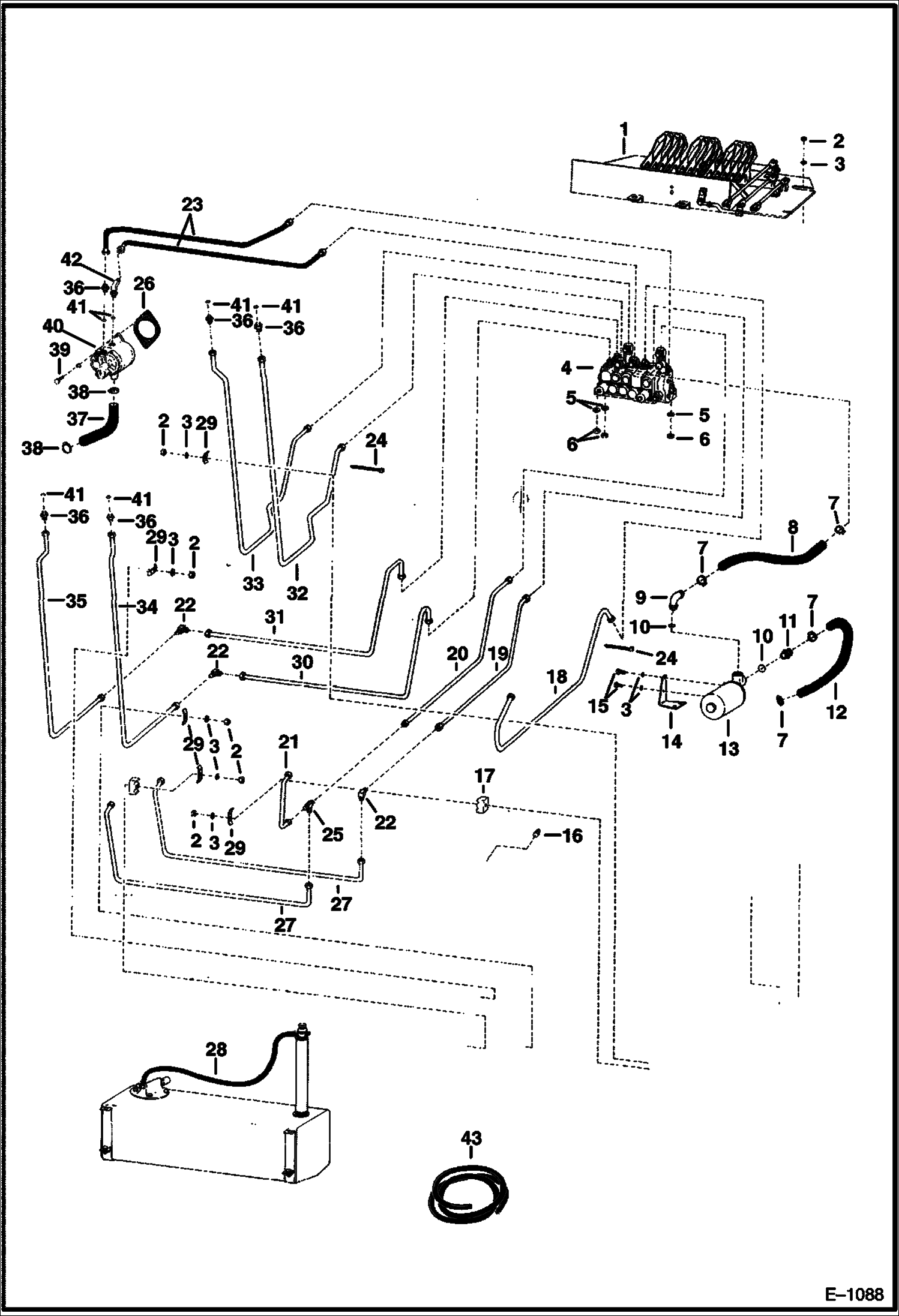

Запчасти Bobcat 900s HYDRAULIC CIRCUITRY (Self-Leveling Valve) HYDRAULIC SYSTEM

1

PEDAL ASSY. See Illustration FOOT PEDAL & CLUTCH LINKAGE/ B18325 See Illustration FOOT PEDAL & CLUTCH LINKAGE/ D1069

2

61D6

NUT 5

3

4E6

WASHER

4

VALVE See Illustration VALVE ASSEMBLY/ C1649

5

4E8

WASHER

6

61D8

NUT 5

7

42H32

HS CLAMP5

8

HOSE NLA - Order 53'' of Ref. 43 (6673825 Hose) - Was 6590820 - A

9

ELBOW NLA - W/Ref. 10 - Was 564087B - A

10

79K20

O RING 10

11

557492

ADAPTER W/Ref. 10

12

6591083

HOSE

13

FILTER See Illustration HYDRAULIC OIL FILTER/ C1319

14

6503836

BRACKET

15

17C616

BOLT 5

16

40K12

PLUG

17

BLOCK NLA - Wood - Order 6592506 & Ref. 29 (6592507 Plate)

17

6592506

CLAMP plastic

18

6509033

TUBE

19

6501723

TUBE

20

6501719

TUBE

21

6501720

TUBE

22

77F8

ELBOW

23

6505139

HOSE

24

6624289

STRAP, TIE Was 6512052 - A

25

10K8

TEE

26

6503835

GASKET

27

6501725

TUBE Lift Line

28

RESERVOIR See Illustration HYDRAULIC OIL RESERVOIR/ D1123

29

6502773

CLAMP

29

6592507

PLATE Use W/Ref. 17 (6592506 Clamp)

30

6501715

TUBE

31

TUBE NLA - Was 6501713 - A

32

6501717

TUBE Tilt Line

33

6501718

TUBE Tilt Line

34

TUBE NLA - auxiliary - Was 6501714 - A

35

TUBE NLA - auxiliary - Was 6501716 - A

36

15K8

FITTING

37

6503722

HOSE See BTI204

38

42H32

HS CLAMP5

39

17C824

BOLT 5

40

PUMP See Illustration HYDRAULIC PUMP/ D1044 See Illustration HYDRAULIC PUMP/ D1632 See BTI240

41

79K12

O RING 10

42

18K8

FTG W/Ref. 41

43

6673825

HOSE bulk
