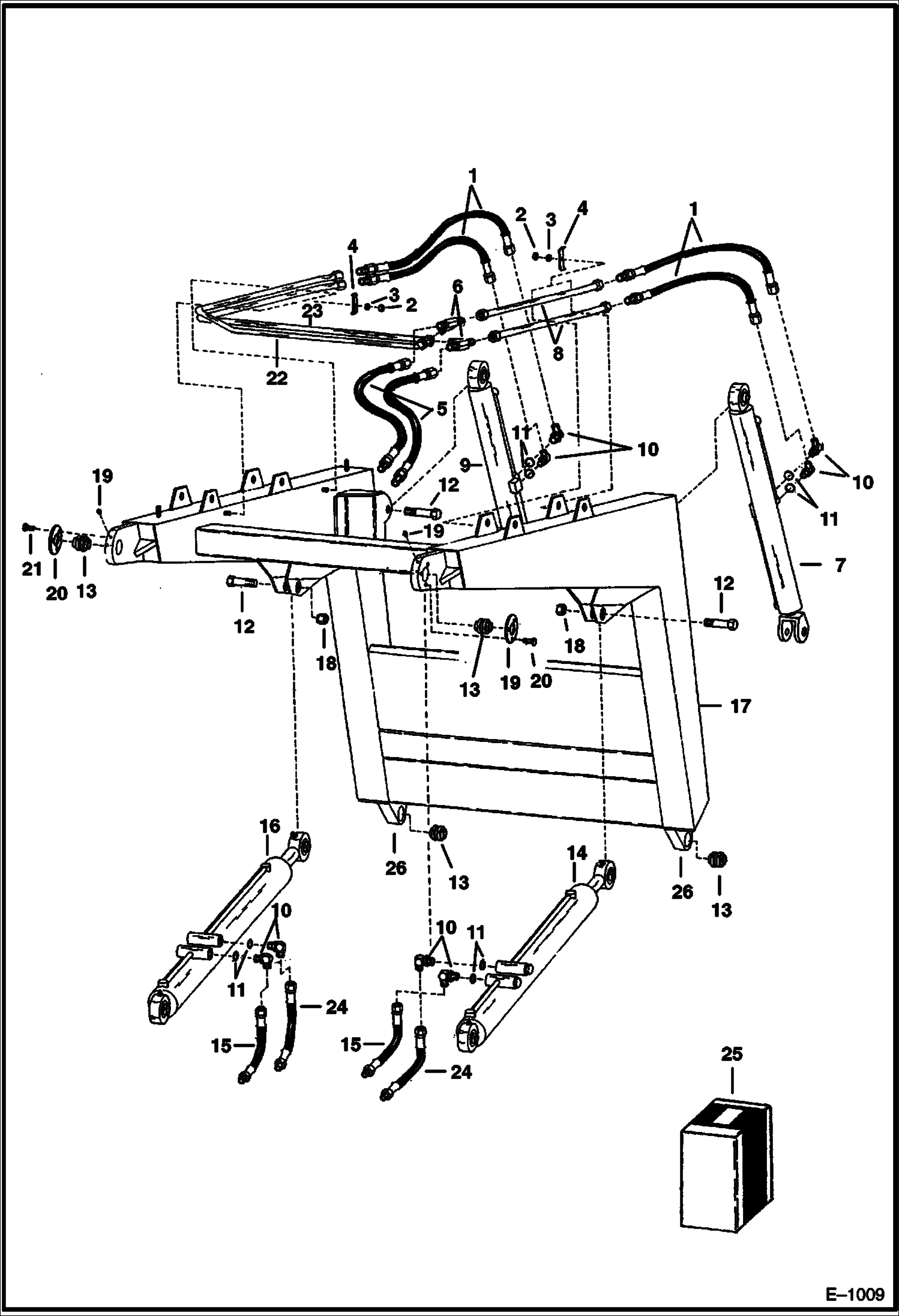

Запчасти Bobcat 900s LIFT ARM HYDRAULICS HYDRAULIC SYSTEM

1

6501722

HOSE

2

81D6

NUT

3

4E6

WASHER

4

6502773

CLAMP

5

6501726

HOSE

6

10K8

TEE

7

CYLINDER See Illustration TILT CYLINDER/ C1305 NLA - tilt - Was 6504900 - A

8

6501817

TUBE

9

CYLINDER See Illustration TILT CYLINDER/ C1305 NLA - tilt - Was 6504896 - A

10

17K8

FITTING W/Ref. 11

11

79K12

O RING 10

12

6504394

BOLT

13

6505023

BEARING

14

6544551

CYLINDER See Illustration LIFT CYLINDER/ D1247 See Illustration LIFT CYLINDER/ B18326 - lift - RH

15

6592459

HOSE

16

6544525

CYLINDER See Illustration LIFT CYLINDER/ D1247 See Illustration LIFT CYLINDER/ B18326 - lift - LH

17

LIFT ARM NSS - Also Requires Ref. 22 (6508039 Tube) & Ref. 23 (6508040 Tube) - Order Ref. 25

18

NUT NLA - Was 6503724 - A

19

10H25

FITTING, GREASE 5

20

RETAINER NLA - bearing - Was 6503783 - A

21

17C612

BOLT 5

22

TUBE NLA - Was 6501818 - A

22

6508039

TUBE

23

TUBE NLA - Was 6501803 - A

23

6508040

TUBE

24

6592460

HOSE

25

6592934

KIT lift arm - Ref. 17 (NLA/6508040 Lift Arm) & Decals - Also Order Ref. 22 (6508039 Tube) & Ref. 23 (6508040 Tube) if S/N is 110104 & Below - Prime Painted Only

26

6590551

BRACKET
