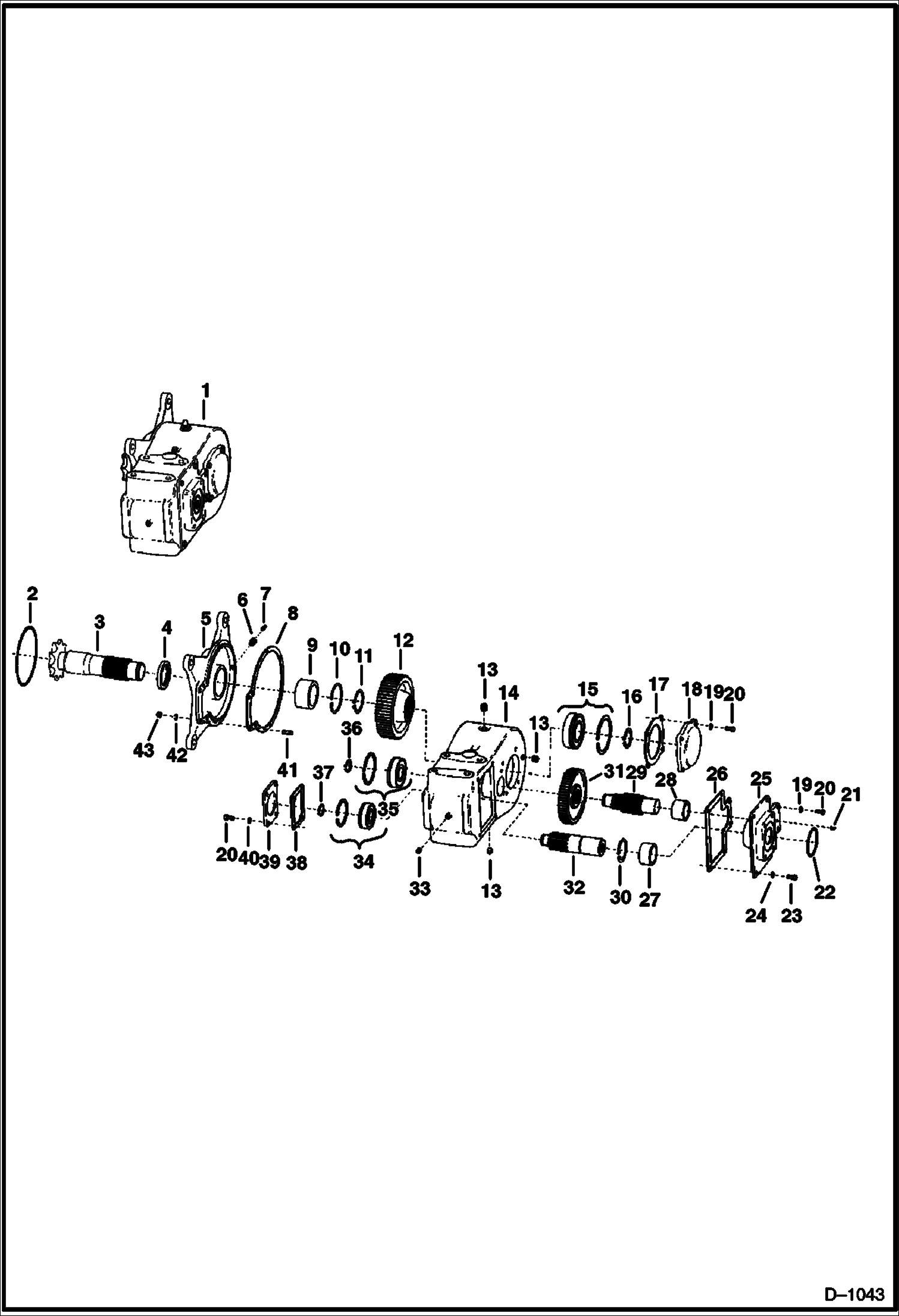

Запчасти Bobcat 900s REDUCTION GEARCASE (Funk - S/N 110351-100257 & Below) DRIVE TRAIN

1

GEARCASE NLA - Ref. 2-43

2

25K80816

O RING 10

3

SPROCKET NLA - W/shaft - Was 6593109 - A

4

6518668

SEAL oil

5

PLATE NSS

6

6518684

REDUCER

7

106656

BREATHER

8

GASKET NLA - Was 6518680 - A

9

6518667

BEARING needle

10

RETAINER NLA - Was 663403B - A

11

6668095

SNAP RING Was 211060B - A

12

6518679

GEAR

13

40K12

PLUG Was 14F-12 - A

14

6518670

CASE

15

BEARING NLA - Was 743733B - A

16

230067

RING

17

GASKET NLA - Was 6518683 - A

18

CAP NLA

19

4E8

WASHER

20

17C824

BOLT 5

21

40K2

PLUG Was 13F000002B - A

22

6518676

O-RING

23

SCREW NLA - Was 17C000928B - A

24

4E9

WASHER

25

6518671

COVER

26

6518681

GASKET

27

BEARING NLA - needle - Was 1307321 - A

28

763192

BEARING needle

29

6518678

SHAFT

30

660883

RETAINER

31

GEAR NLA - Was 6518677 - A

32

SHAFT NLA - Was 6518675 - A

33

PLUG NLA - Was 215757B - A

34

658038

BEARING

35

658040

BEARING

36

743669

SNAP RING

37

RETAINER NLA - Was 507687B - A

38

GASKET NLA - Was 6518682 - A

39

6518674

CAP

40

WASHER NLA - sealing - Was 743314B - A

41

6518685

STUD

42

4E10

WASHER

43

61D10

NUT
