CAB TILT CYLINDER

Запчасти Bobcat 900s CAB TILT CYLINDER MAIN FRAME

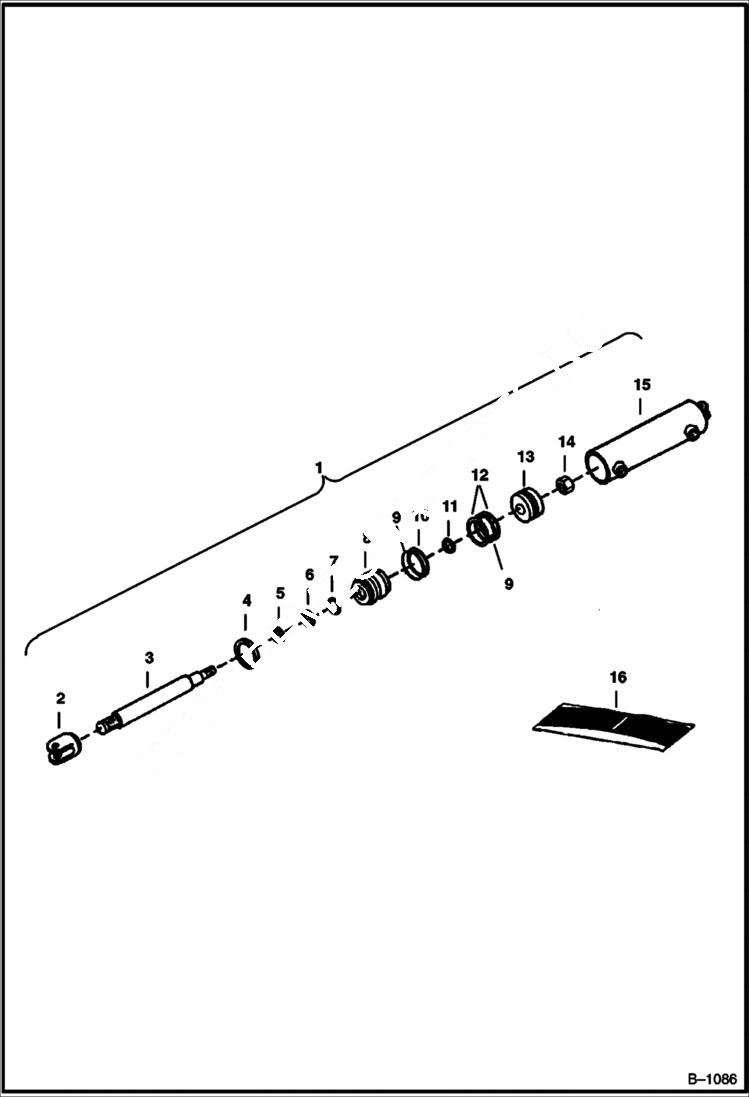

Схема запчастей Bobcat 900s - CAB TILT CYLINDER MAIN FRAME
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6515503

CYLINDER

2

6518702

CLEVIS

3

6518705

ROD

4

RETAINER NSS

5

WIPER NSS

6

WASHER NSS - back-up

7

SEAL NSS

8

6518701

HEAD

9

SEAL NSS

10

WASHER NSS - back-up

11

O-RING NSS

12

WASHER NSS - back-up

13

6518703

PISTON

14

6518700

NUT

15

BARREL NLA - Was 6518704 - A

16

6508494

REPAIR KIT W/Ref. 4 - 7, 9 - 12
