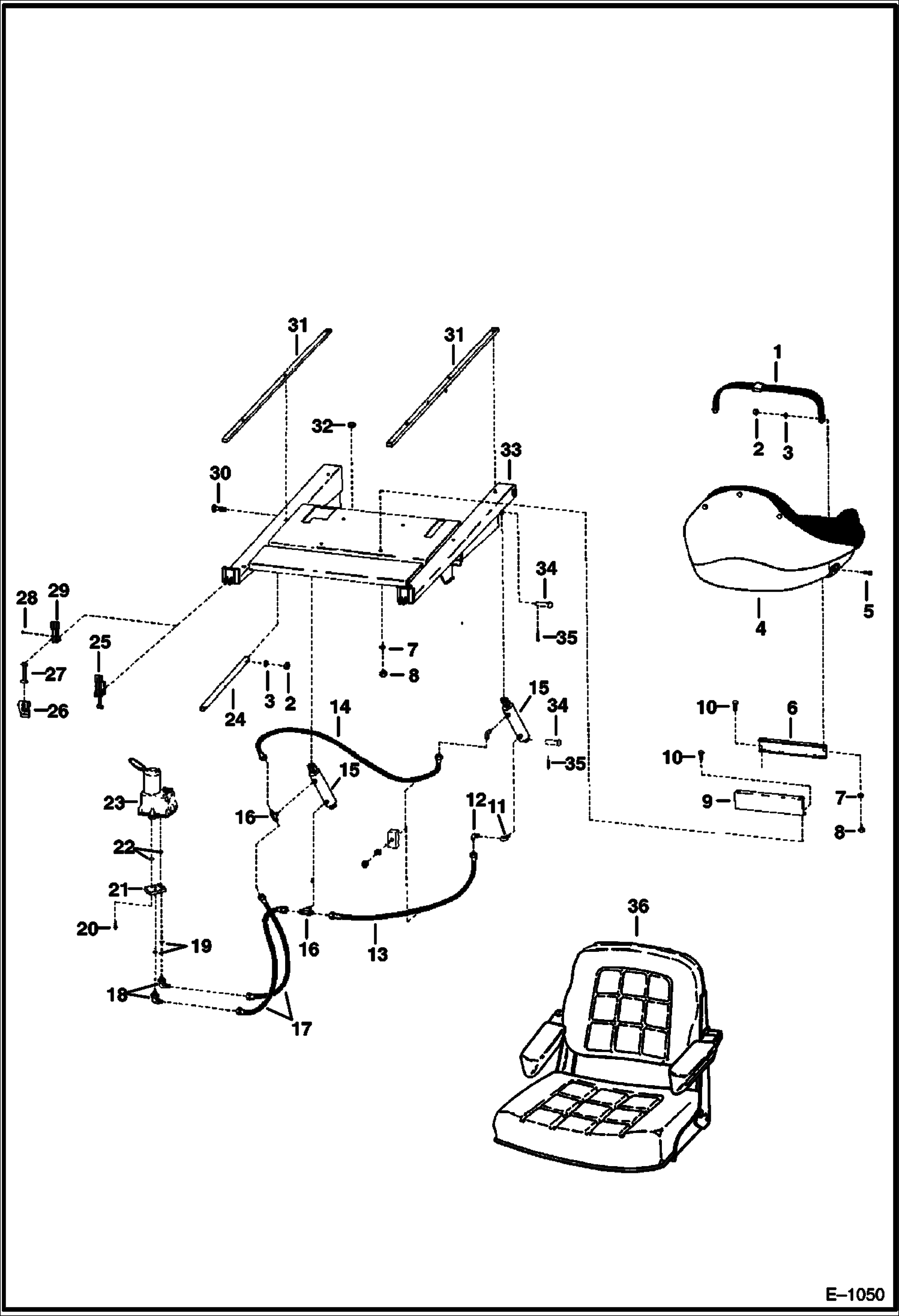

Запчасти Bobcat 900s CAB TILT & SEAT MOUNTING MAIN FRAME

1

SEAT BELT NLA - Order 6675074 seat belt & (2) of 6725373 spring plate - Was 6563214 - A

2

61D6

NUT 5

3

4E6

WASHER

4

SEAT NLA - black - Order Ref. 36

4

6518926

SEAT white

4

1550069

SEAT BACK wrap around

4

6519476

CUSHION back - Black

4

6518929

CUSHION back - White

4

CUSHION seat - Black NLA - seat - black - Was 6519475 - A

4

6518927

CUSHION seat - White

5

17C612

BOLT 5

6

6505883

CHANNEL

7

4E5

WASHER

8

62D5

NUT

9

CHANNEL NLA - rear - Was 6505884 - A

10

18C516

BOLT

11

25F2

ELBOW street

12

ELBOW NLA - Was 731745 - A

13

1516294

HOSE

14

HOSE NLA - Was 6501787 - A

15

CYLINDER See Illustration CAB TILT CYLINDER/ B1086

16

731752

TEE

17

2500673

HOSE ASSY

18

ELBOW NLA - Was 731745 - A

19

79K4

O RING 10

20

90G416

SCREW

21

6503795

HEAD

22

25K20012

O RING 10

23

PUMP See Illustration CAB TILT MOTOR & PUMP/ B18214 See Illustration CAB TILT MOTOR & PUMP/ B1103

24

6504131

LOCK

25

LATCH NLA - Ref. 26-29 - Was 6505129 - A

26

PLATE NSS - catch

27

6518224

BOLT draw

28

PIN NSS - Was 6518225 - A

29

HANDLE NSS - Was 6505508 - A

30

7C656

BOLT

31

PAD NLA

32

6504108

GROMMET rubber

33

6501692

MOUNT

34

6514566

PIN Was 719053 - A

35

1F316

PIN

36

SEAT See Illustration SEAT/ B7184
