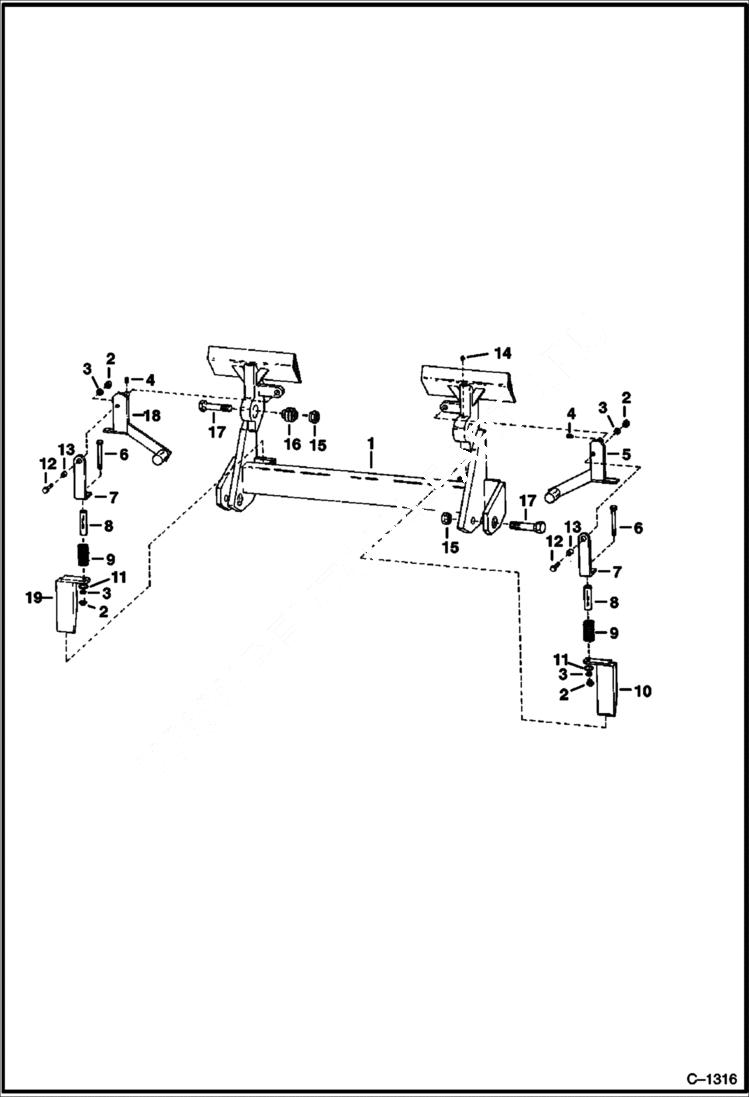

Запчасти Bobcat 900s BOB-TACH MAIN FRAME

1

FRAME See Illustration DECALS/ B10992 NLA - Also Order 6561383 Decal - Was 6509741 - A

2

61D8

NUT 5

3

4E8

WASHER

4

633157

PIN

5

6501706

HANDLE R.H.

6

17C880

BOLT

7

6503954

ARM

8

6548500

TUBE GUIDE Was 6503953 - A

9

6503956

SPRING

10

6548502

WEDGE

11

25E21

WASHER 5

12

17C828

BOLT

13

6503955

TUBE spacer

14

36H25

FITTING

15

NUT NLA - Was 6503724 - A

16

6505023

BEARING self aligning

17

6504394

BOLT

18

6501689

HANDLE L.H.

19

6548501

WEDGE L.H.
