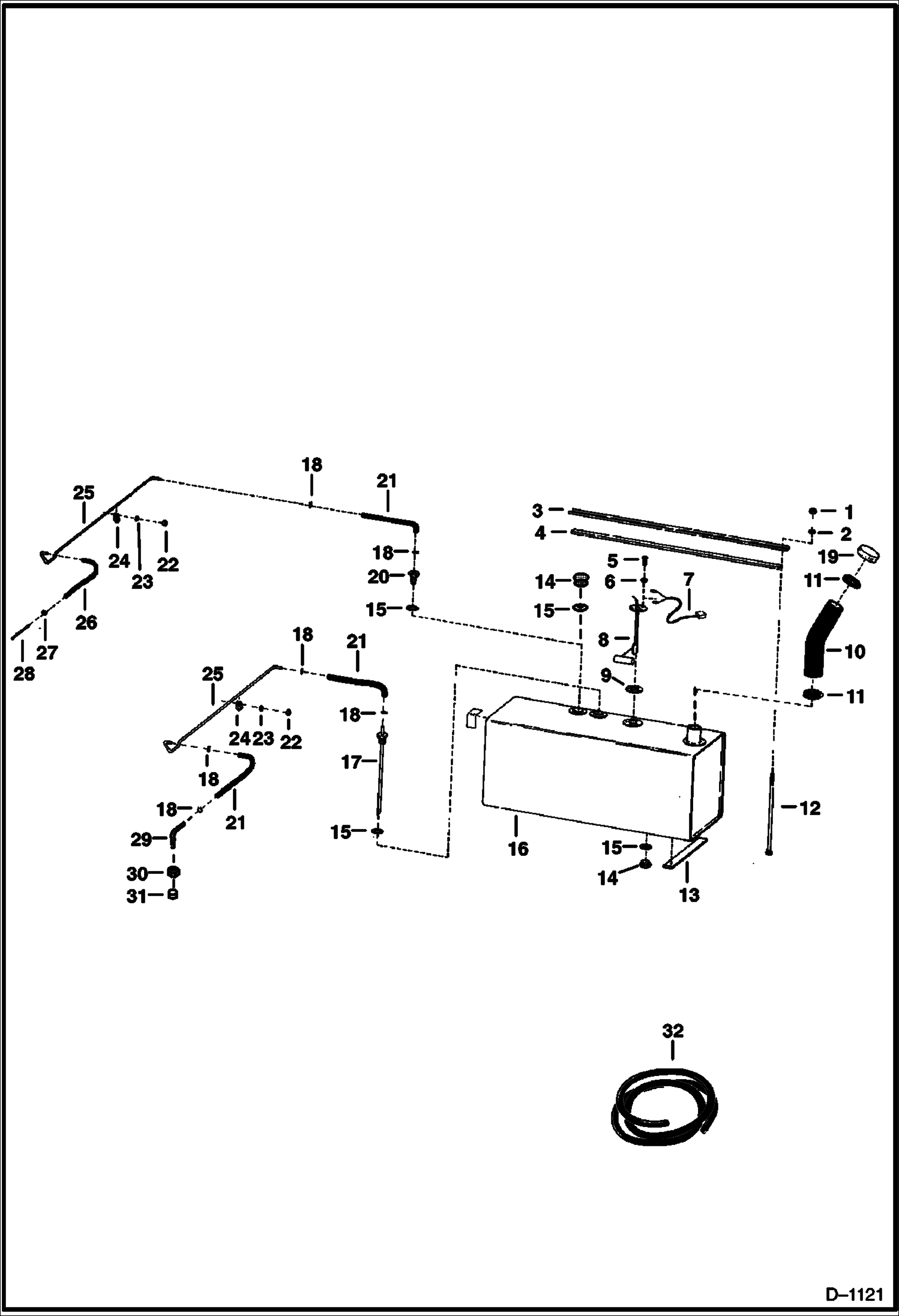

Запчасти Bobcat 900s FUEL TANK MAIN FRAME

1

61D6

NUT 5

2

4E6

WASHER

3

6503894

BAR hold down

4

6542877

STRAP web - bulk - Sold Per Foot - Was 6503895 - A

5

86G1008

SCREW

6

17E10

WASHER

7

6594344

HARNESS ground - Was 6507617 - A

8

6598921

SENDER fuel level

9

6519201

GASKET

10

6504103

HOSE filler

11

42H40

HOSECLAM5

12

BOLT NLA - Was 6503896 - A

13

6504882

STRAP web

14

16F12

PLUG

15

6504426

GASKET

16

6501671

TANK

17

6543961

TUBE fuel suction

18

42H6

HOSECLAM5 Was 17H000007B - A

19

6515566

CAP fuel

20

6518596

ADAPTER

21

HOSE NLA - Tank to Pump - 12.25'' (311,2 mm) long - Order Ref. 32 - Was 6590821 - A

22

61D4

NUT 5

23

4E4

WASHER

24

30H16

CLIP Was 6504442 - A

25

6504436

TUBE

26

6505207

HOSE Diesel Only

27

42HS04

CLAMP, HOSE diesel only - Was 6515575 - A

28

6543392

TUBE Diesel Only

29

6507611

TUBE Diesel Only

30

3490354

NUT Diesel Only - Was 349354 - A

31

57F3

SLEEVE Diesel Only

32

6577821

HOSE bulk - sold per foot
