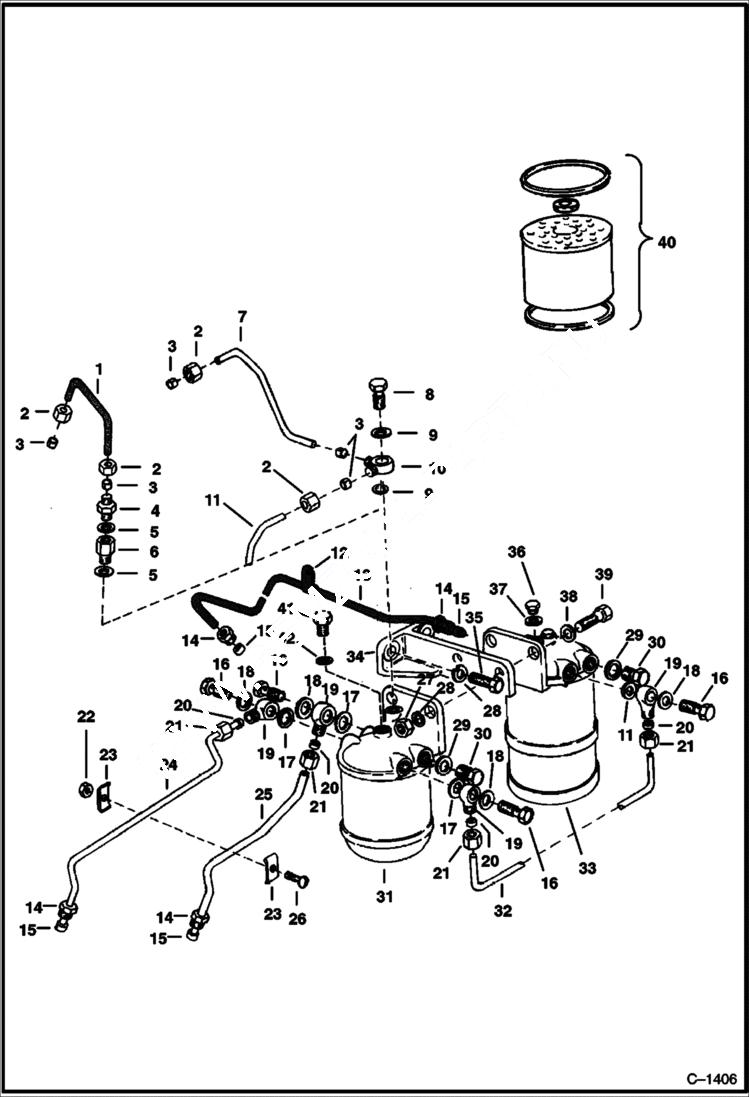

Запчасти Bobcat 900s FUEL FILTER (Perkins - Engine Spec. LD 22557) POWER UNIT

1

6510648

TUBE overflow

2

3490133

UNION NUT

3

3490132

SEAL

4

3725652

ADAPTOR

5

3490351

WASHER

6

3550693

VALVE

7

6510648

TUBE

8

3490352

BOLT

9

3490351

WASHER

10

3490200

FITTING banjo

11

6507611

TUBE

12

3725641

CLIP

13

6515758

PIPE

14

3727374

NUT

15

3727375

FERRULE

16

3727284

BOLT

17

3727285

WASHER

18

6515755

WASHER

19

3727283

CONNECTER inlet

20

3729965

FERRULE

21

3729963

NUT

22

1781096

NUT Was 3725658B - A

23

3725656

CLIP

24

6515760

TUBE

25

6515761

TUBE

26

86G1014

BOLT

27

62D6

NUT 5

28

4E6

WASHER

29

1781097

WASHER plug

30

6515682

PLUG

31

6515756

FILTER W/Ref. 40

32

6515759

TUBE

33

3551883

FILTER W/Ref. 40

34

6510646

BRACKET

35

18C618

BOLT

36

6515676

PLUG

37

3490721

WASHER plug

38

3725703

WASHER plain

39

18C628

BOLT

40

3885315

FILTER, FUEL 12

41

6636024

SCREW

42

6636025

WASHER
