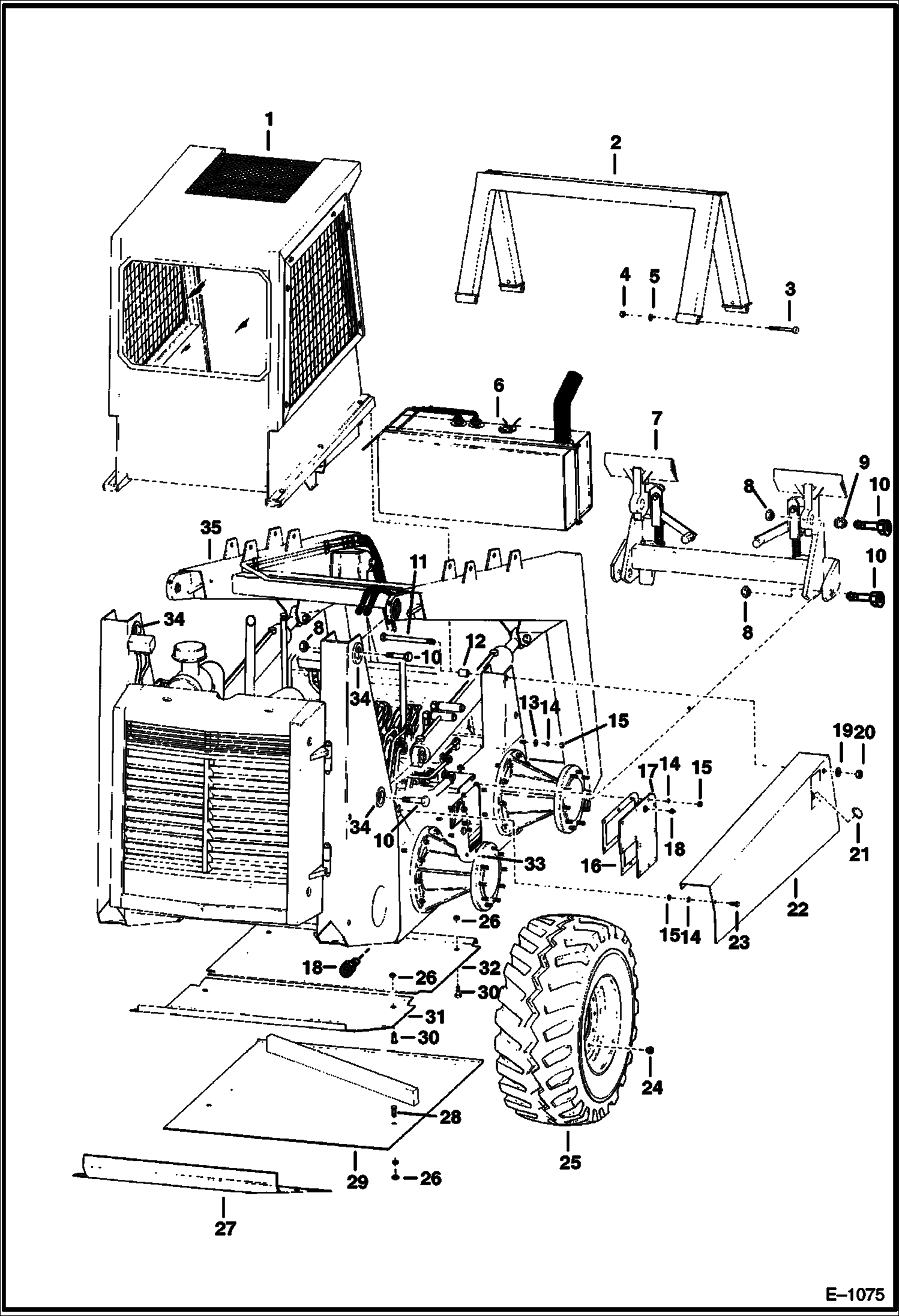

Запчасти Bobcat 900s MAIN FRAME & ATTACHING PARTS MAIN FRAME

1

CAB See Illustration OPERATOR CAB/ E1049

2

ROLL BAR NLA - Was 6507558 - A

3

17C1696

BOLT

4

4E16

WASHER

5

61D16

LCKNUT

6

TANK See Illustration FUEL TANK/ D1121 fuel

7

BOB-TACH See Illustration BOB-TACH/ C1316 NLA - Was 6509740 - A

8

NUT NLA - Was 6503724 - A

9

6505023

BEARING

10

6504394

BOLT

11

15C14168

SCREW

12

BUSHING NLA - Was 6503792 - A

13

6502073

CLIP

14

4E6

WASHER

15

61D6

NUT 5

16

GASKET NLA - Was 6503889 - A

17

6501794

COVER R.H.

17

COVER NLA - L.H. - Was 6501793 - A

18

40K12

PLUG Was 10F-12 - A

19

4E14

LOCKWSHR

20

61D14

NUT

21

6515566

CAP fuel

22

6501695

FENDER R.H.

22

6503965

FENDER L.H.

23

17C616

BOLT 5

24

6503888

NUT wheel

25

TIRE & RIM See Illustration TIRES & RIMS/ A1458

26

81D12

NUT

27

6546625

PLATE rear skid - Was 6505644 - A

28

7C1256

SCREW Was 7C-1252 - A

29

6546625

PLATE center skid - Was 6505634 - A

30

17C1224

BOLT

31

6544314

PLATE rear skid

32

6544313

PLATE front skid

33

40K2

PLUG Was 13F000002B - A

34

6590185

CUP

35

LIFT ARM See Illustration LIFT ARM HYDRAULICS/ E1009
